MD1802FX
  • Share:

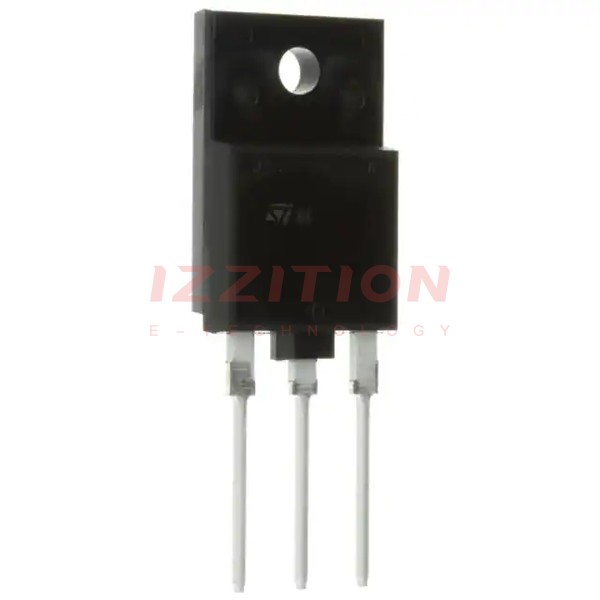

STMicroelectronics MD1802FX

Manufacturer No:
MD1802FX
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
TRANS NPN 700V 10A ISOWATT-218FX
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MD1802FX is a high-voltage NPN power transistor manufactured by STMicroelectronics. It is part of the MD product series, which is known for improved silicon efficiency and enhanced performance, particularly in the Horizontal Deflection stage of standard definition CRT displays. This transistor is produced using Diffused Collector in Planar Technology, incorporating a new and enhanced high voltage structure.

Key Specifications

ParameterValue
PolarityNPN
Voltage Rating (Vceo)700V
Power Dissipation (Pc)57W
Collector Current (Ic)10A
Base-Emitter Voltage (Vbe)5V
Package TypeISOWATT-218FX
RoHS ComplianceYes
Contact PlatingTin
Lifecycle StatusProduction

Key Features

  • High voltage structure suitable for high-voltage applications.
  • Improved silicon efficiency for enhanced performance.
  • Diffused Collector in Planar Technology for better reliability and durability.
  • RoHS compliant, ensuring environmental sustainability.
  • Tin contact plating for good solderability and corrosion resistance.

Applications

The MD1802FX is primarily used in the Horizontal Deflection stage of standard definition CRT (Cathode Ray Tube) displays. It is also suitable for other high-voltage applications such as switching regulators, inverters, motor control, and solenoid/relay drivers.

Q & A

  1. What is the voltage rating of the MD1802FX transistor?
    The voltage rating (Vceo) of the MD1802FX transistor is 700V.
  2. What is the maximum power dissipation of the MD1802FX?
    The maximum power dissipation (Pc) of the MD1802FX is 57W.
  3. What is the collector current rating of the MD1802FX?
    The collector current (Ic) rating of the MD1802FX is 10A.
  4. What technology is used in the manufacturing of the MD1802FX?
    The MD1802FX is manufactured using Diffused Collector in Planar Technology.
  5. Is the MD1802FX RoHS compliant?
    Yes, the MD1802FX is RoHS compliant.
  6. What is the typical application of the MD1802FX transistor?
    The MD1802FX is typically used in the Horizontal Deflection stage of standard definition CRT displays.
  7. What is the package type of the MD1802FX transistor?
    The package type of the MD1802FX transistor is ISOWATT-218FX.
  8. What is the lifecycle status of the MD1802FX?
    The MD1802FX is in production.
  9. What is the contact plating material used for the MD1802FX?
    The contact plating material used for the MD1802FX is tin.
  10. Where can I find the datasheet for the MD1802FX?
    You can find the datasheet for the MD1802FX on the official STMicroelectronics website or through distributors like JLCPCB and IBS Electronics.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):10 A
Voltage - Collector Emitter Breakdown (Max):700 V
Vce Saturation (Max) @ Ib, Ic:1.5V @ 1.25A, 5A
Current - Collector Cutoff (Max):200µA
DC Current Gain (hFE) (Min) @ Ic, Vce:5.5 @ 5A, 5V
Power - Max:57 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:ISOWATT218FX
Supplier Device Package:ISOWATT-218FX
0 Remaining View Similar

In Stock

-
84

Please send RFQ , we will respond immediately.
