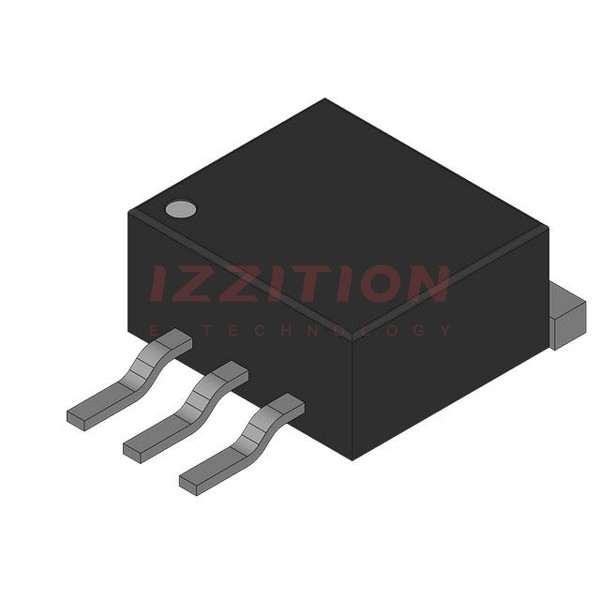

Fairchild Semiconductor NVD6416ANLT4G

Manufacturer No:
NVD6416ANLT4G
Manufacturer:
Fairchild Semiconductor
Package:
Bulk
Description:
MOSFET N-CH 100V 19A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVD6416ANLT4G-VF01 is a high-performance N-Channel power MOSFET produced by onsemi, formerly known as Fairchild Semiconductor. This device is designed for automotive and other applications that require high reliability and robust performance. It features a low on-resistance (Rds(on)) and high current capability, making it suitable for a variety of power management and switching applications.

Key Specifications

Parameter Symbol Value Unit
Drain to Source Voltage Vdss 100 V
Gate to Source Voltage - Continuous Vgs ±20 V
Continuous Drain Current @ 25°C Id 19 A
Power Dissipation @ 25°C Pd 71 W
Gate Threshold Voltage @ Id Vgs(th) 2.2 @ 250µA V
Gate Charge (Qg) @ Vgs Qg 40 nC @ 10 V nC
On-Resistance (Rds(on)) @ Id, Vgs Rds(on) 74 mΩ @ 19A, 10V mΩ
Input Capacitance (Ciss) @ Vds Ciss 1000 pF @ 25 V pF
Operating Temperature Tj -55°C ~ 175°C °C
Package / Case - TO-252-3, DPAK-3, SC-63 -

Key Features

  • Low On-Resistance (Rds(on)): 74 mΩ @ 19A, 10V, ensuring efficient power management.
  • High Current Capability: Continuous drain current of 19A at 25°C.
  • AEC-Q101 Qualified: Meets automotive standards for reliability and performance.
  • 100% Avalanche Tested: Ensures robustness against high-energy pulses.
  • Pb-Free and RoHS Compliant: Environmentally friendly and compliant with regulatory standards.
  • Wide Operating Temperature Range: -55°C to 175°C, suitable for various environmental conditions.

Applications

The NVD6416ANLT4G-VF01 is designed for use in a variety of applications, including:

  • Automotive Systems: Power management, motor control, and battery management systems.
  • Industrial Power Supplies: High-efficiency switching power supplies and DC-DC converters.
  • Consumer Electronics: Power management in devices such as laptops, tablets, and smartphones.
  • Renewable Energy Systems: Solar and wind power systems requiring high reliability and efficiency.

Q & A

  1. What is the maximum drain-to-source voltage (Vdss) of the NVD6416ANLT4G-VF01?

    The maximum drain-to-source voltage (Vdss) is 100 V.

  2. What is the continuous drain current (Id) at 25°C?

    The continuous drain current (Id) at 25°C is 19 A.

  3. What is the gate threshold voltage (Vgs(th))?

    The gate threshold voltage (Vgs(th)) is 2.2 V at 250 µA.

  4. Is the NVD6416ANLT4G-VF01 AEC-Q101 qualified?

    Yes, the NVD6416ANLT4G-VF01 is AEC-Q101 qualified.

  5. What is the maximum gate-to-source voltage (Vgs)?

    The maximum gate-to-source voltage (Vgs) is ±20 V.

  6. What is the on-resistance (Rds(on)) of the device?

    The on-resistance (Rds(on)) is 74 mΩ at 19 A, 10 V.

  7. What is the input capacitance (Ciss) of the device?

    The input capacitance (Ciss) is 1000 pF at 25 V.

  8. What is the operating temperature range of the device?

    The operating temperature range is -55°C to 175°C.

  9. Is the NVD6416ANLT4G-VF01 Pb-Free and RoHS compliant?

    Yes, the NVD6416ANLT4G-VF01 is Pb-Free and RoHS compliant.

  10. What package type is the NVD6416ANLT4G-VF01 available in?

    The device is available in the TO-252-3, DPAK-3, and SC-63 packages.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:19A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:74mOhm @ 19A, 10V
Vgs(th) (Max) @ Id:2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:40 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1000 pF @ 25 V
FET Feature:-
Power Dissipation (Max):71W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
