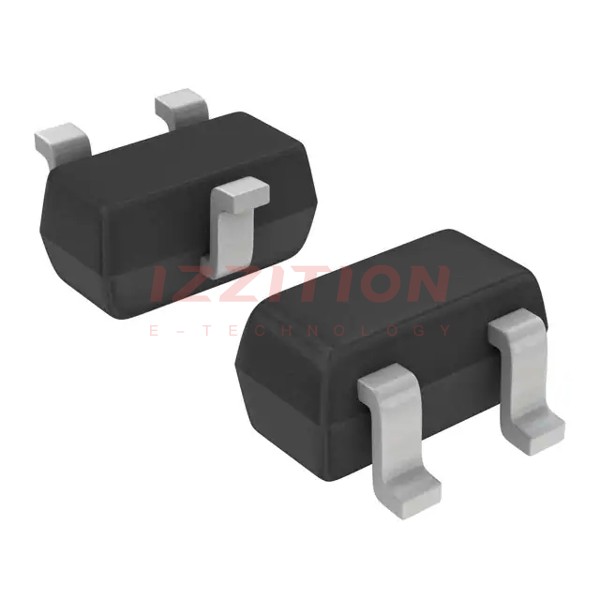

onsemi S2SC4617G

Manufacturer No:
S2SC4617G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS NPN 50V 0.1A SC75 SOT416
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The S2SC4617G is an NPN silicon general-purpose amplifier transistor manufactured by onsemi. This transistor is designed for low power surface mount applications, particularly where board space is limited. It is housed in the SC-75/SOT-416 package, making it ideal for compact electronic designs. The S2SC4617G is suitable for a variety of general-purpose amplifier applications due to its high current gain and low collector-emitter saturation voltage.

Key Specifications

Parameter Symbol Value Unit
Collector-Base Voltage V(BR)CBO 50 Vdc
Collector-Emitter Voltage V(BR)CEO 50 Vdc
Emitter-Base Voltage V(BR)EBO 5.0 Vdc
Collector Current - Continuous IC 100 mAdc
Power Dissipation PD 125 mW
Junction Temperature TJ 150 °C
Transition Frequency fT 180 MHz
DC Current Gain (hFE) hFE 120 - 560 -
Collector-Emitter Saturation Voltage VCE(sat) < 0.5 Vdc

Key Features

  • High DC current gain (hFE) of 210-460 (typical)
  • Low collector-emitter saturation voltage (VCE(sat)) of less than 0.5 V
  • Available in 8 mm, 7-inch/3000 Unit Tape and Reel
  • S Prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 Qualified and PPAP Capable
  • Pb-Free, Halogen Free/BFR Free, and RoHS Compliant

Applications

The S2SC4617G is suitable for various general-purpose amplifier applications, particularly in scenarios where board space is limited. It is ideal for use in surface mount designs and can be applied in automotive and other industries that require high reliability and compliance with stringent standards.

Q & A

  1. What is the maximum collector-base voltage of the S2SC4617G transistor?

    The maximum collector-base voltage (V(BR)CBO) is 50 Vdc.

  2. What is the typical DC current gain (hFE) of the S2SC4617G transistor?

    The typical DC current gain (hFE) is between 210 and 460.

  3. What is the maximum collector-emitter saturation voltage (VCE(sat)) of the S2SC4617G transistor?

    The maximum collector-emitter saturation voltage (VCE(sat)) is less than 0.5 Vdc.

  4. What is the maximum junction temperature for the S2SC4617G transistor?

    The maximum junction temperature (TJ) is 150 °C.

  5. Is the S2SC4617G transistor RoHS compliant?
  6. What is the transition frequency (fT) of the S2SC4617G transistor?

    The transition frequency (fT) is 180 MHz.

  7. What package type is the S2SC4617G transistor housed in?

    The S2SC4617G transistor is housed in the SC-75/SOT-416 package.

  8. What is the maximum collector current (IC) for the S2SC4617G transistor?

    The maximum collector current (IC) is 100 mA.

  9. Is the S2SC4617G transistor suitable for automotive applications?
  10. What is the power dissipation (PD) of the S2SC4617G transistor?

    The power dissipation (PD) is 125 mW.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:400mV @ 5mA, 60mA
Current - Collector Cutoff (Max):500nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:120 @ 1mA, 6V
Power - Max:125 mW
Frequency - Transition:180MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-75, SOT-416
Supplier Device Package:SC-75, SOT-416
