NSS35200MR6T1G
  • Share:

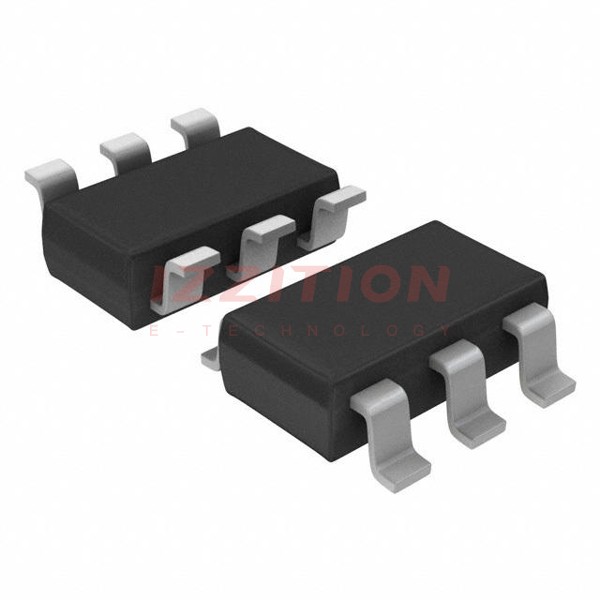

onsemi NSS35200MR6T1G

Manufacturer No:
NSS35200MR6T1G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS PNP 35V 2A 6TSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NSS35200MR6T1G is a 35 V, 5 A, low VCE(sat) PNP transistor from ON Semiconductor's e2PowerEdge family. This miniature surface mount device is designed for low voltage, high speed switching applications, offering ultra-low saturation voltage (VCE(sat)) and high current gain capability. It is particularly suited for efficient energy control in various electronic devices.

Key Specifications

Characteristic Symbol Min Typical Max Unit
Collector-Emitter Voltage VCEO - - -35 Vdc
Collector-Base Voltage VCBO - - -55 Vdc
Emitter-Base Voltage VEBO - - -5.0 Vdc
Collector Current - Continuous IC - - -2.0 Adc
Collector Current - Peak ICM - - -5.0 A
DC Current Gain (hFE) hFE 100 200 400 -
Collector-Emitter Saturation Voltage (VCE(sat)) VCE(sat) -0.125 -0.175 -0.260 V
Base-Emitter Saturation Voltage (VBE(sat)) VBE(sat) -0.68 -0.85 - V
Cutoff Frequency (fT) fT - 100 - MHz
Input Capacitance (Cibo) Cibo - 600 650 pF
Output Capacitance (Cobo) Cobo - 85 100 pF
Turn-on Time (ton) ton - 35 - nS
Turn-off Time (toff) toff - 225 - nS

Key Features

  • Ultra-low saturation voltage (VCE(sat)) for efficient energy control.
  • High current gain capability.
  • Designed for low voltage, high speed switching applications.
  • Pb-free and RoHS compliant.
  • AEC-Q101 qualified and PPAP capable for automotive and other critical applications.
  • High linear gain (Beta) making it ideal for analog amplifiers.
  • Direct drive capability from PMU’s control outputs.

Applications

  • DC-DC converters and power management in portable and battery-powered products such as cellular and cordless phones, PDAs, computers, printers, digital cameras, and MP3 players.
  • Low voltage motor controls in mass storage products like disc drives and tape drives.
  • Automotive applications including air bag deployment and instrument clusters.
  • Analog amplifiers due to its high linear gain.

Q & A

  1. What is the maximum collector-emitter voltage of the NSS35200MR6T1G transistor?

    The maximum collector-emitter voltage (VCEO) is -35 Vdc.

  2. What is the typical DC current gain (hFE) of this transistor?

    The typical DC current gain (hFE) is 200.

  3. What is the collector-emitter saturation voltage (VCE(sat)) at a collector current of 2.0 A?

    The collector-emitter saturation voltage (VCE(sat)) at a collector current of 2.0 A is typically -0.260 V.

  4. Is the NSS35200MR6T1G transistor Pb-free and RoHS compliant?
  5. What are some common applications of the NSS35200MR6T1G transistor?
  6. What is the cutoff frequency (fT) of the NSS35200MR6T1G transistor?
  7. What is the turn-on time (ton) and turn-off time (toff) of the transistor?
  8. Is the NSS35200MR6T1G transistor suitable for automotive applications?
  9. What is the package type of the NSS35200MR6T1G transistor?
  10. What is the thermal resistance (RJA) of the NSS35200MR6T1G transistor?

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):2 A
Voltage - Collector Emitter Breakdown (Max):35 V
Vce Saturation (Max) @ Ib, Ic:310mV @ 20mA, 2A
Current - Collector Cutoff (Max):100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 1.5A, 1.5V
Power - Max:625 mW
Frequency - Transition:100MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-23-6 Thin, TSOT-23-6
Supplier Device Package:6-TSOP
0 Remaining View Similar

In Stock

$0.51
868

Please send RFQ , we will respond immediately.
