NJT4031NT3G
  • Share:

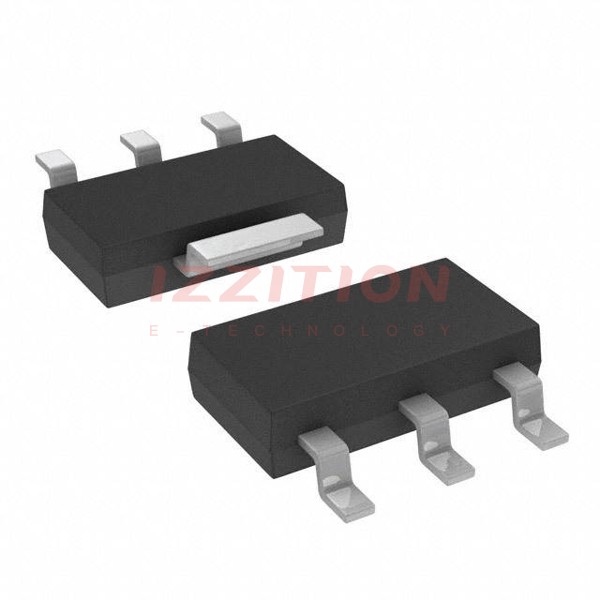

onsemi NJT4031NT3G

Manufacturer No:
NJT4031NT3G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS NPN 40V 3A SOT223
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NJT4031NT3G is a high-performance NPN bipolar junction transistor (BJT) manufactured by onsemi. This transistor is designed for a wide range of applications requiring high current and voltage handling capabilities. It is packaged in the SOT-223 (TO-261) surface mount format, making it suitable for modern electronic designs where space efficiency is crucial.

Key Specifications

ParameterValue
Transistor TypeNPN Bipolar Junction Transistor
Maximum Collector-Base Voltage (Vcbo)40 V
Maximum Collector-Emitter Voltage (Vceo)40 V
Maximum Emitter-Base Voltage (Vebo)5 V
Maximum Collector Current (Ic)3 A
Maximum Power Dissipation (Pd)2 W
Transition Frequency (ft)215 MHz
Package TypeSOT-223 (TO-261)

Key Features

  • High current handling capability up to 3 A.
  • High voltage handling capability up to 40 V.
  • High transition frequency of 215 MHz, suitable for high-frequency applications.
  • Surface mount SOT-223 package for efficient board space utilization.
  • Pb-free, making it compliant with environmental regulations.

Applications

The NJT4031NT3G is versatile and can be used in various applications, including:

  • Power amplifiers and switches.
  • High-frequency amplifiers and oscillators.
  • Automotive and industrial control systems.
  • Audio and video equipment.
  • General-purpose amplification and switching circuits.

Q & A

  1. What is the maximum collector current of the NJT4031NT3G?
    The maximum collector current is 3 A.
  2. What is the package type of the NJT4031NT3G?
    The package type is SOT-223 (TO-261).
  3. What is the transition frequency of the NJT4031NT3G?
    The transition frequency is 215 MHz.
  4. Is the NJT4031NT3G Pb-free?
    Yes, the NJT4031NT3G is Pb-free.
  5. What is the maximum power dissipation of the NJT4031NT3G?
    The maximum power dissipation is 2 W.
  6. What are some common applications of the NJT4031NT3G?
    Common applications include power amplifiers, high-frequency amplifiers, automotive and industrial control systems, and general-purpose amplification and switching circuits.
  7. What is the polarity of the NJT4031NT3G transistor?
    The polarity is NPN.
  8. What is the maximum collector-base voltage of the NJT4031NT3G?
    The maximum collector-base voltage is 40 V.
  9. Where can I find detailed specifications for the NJT4031NT3G?
    Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Mouser and Digi-Key.
  10. Is the NJT4031NT3G suitable for high-frequency applications?
    Yes, with a transition frequency of 215 MHz, it is suitable for high-frequency applications.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):3 A
Voltage - Collector Emitter Breakdown (Max):40 V
Vce Saturation (Max) @ Ib, Ic:300mV @ 300mA, 3A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 1A, 1V
Power - Max:2 W
Frequency - Transition:215MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:SOT-223 (TO-261)
0 Remaining View Similar

In Stock

$0.58
1,298

Please send RFQ , we will respond immediately.
