Overview

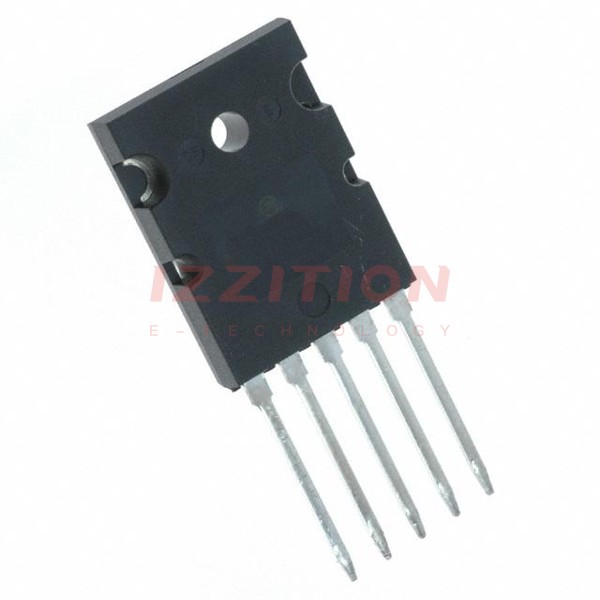

The NJL3281DG is a high-performance NPN transistor manufactured by onsemi. This device is part of the Complementary ThermalTrak Transistors series, designed to provide reliable and efficient operation in various high-power applications. The NJL3281DG is notable for its high current and voltage handling capabilities, making it suitable for use in power management, automotive, and industrial systems.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Collector-Base Voltage (VCBO) | 260 | V |
| Emitter-Base Voltage (VEBO) | 5 | V |
| Collector-Emitter Saturation Voltage | 3 | V |
| Collector Current (IC) | 25 | A |
| Power Dissipation (Pd) | 200 | W |
| Thermal Resistance, Junction-to-Case (RθJC) | 0.625 | °C/W |
| Package Type | TO-264, 5-Pin |
Key Features
- High collector current of up to 25 A, making it suitable for high-power applications.
- High collector-base voltage of 260 V, providing robust voltage handling.
- ThermalTrak technology for improved thermal management and reliability.
- TO-264 package with 5 pins, offering a compact and efficient design.
- Low collector-emitter saturation voltage of 3 V, reducing power losses.
Applications
The NJL3281DG transistor is designed for use in a variety of high-power applications, including:
- Power management systems in automotive and industrial environments.
- High-current switching and amplification circuits.
- Motor control and power supplies.
- Automotive systems such as battery management and power steering.
Q & A
- What is the maximum collector current of the NJL3281DG transistor?
The maximum collector current is 25 A. - What is the collector-base voltage rating of the NJL3281DG?
The collector-base voltage rating is 260 V. - What is the thermal resistance, junction-to-case (RθJC) of the NJL3281DG?
The thermal resistance, junction-to-case (RθJC) is 0.625 °C/W. - What package type does the NJL3281DG come in?
The NJL3281DG comes in a TO-264 package with 5 pins. - What is the collector-emitter saturation voltage of the NJL3281DG?
The collector-emitter saturation voltage is 3 V. - What technology does the NJL3281DG use for thermal management?
The NJL3281DG uses ThermalTrak technology for improved thermal management. - What are some common applications of the NJL3281DG transistor?
Common applications include power management systems, high-current switching and amplification circuits, motor control, and automotive systems. - What is the maximum power dissipation of the NJL3281DG?
The maximum power dissipation is 200 W. - What is the emitter-base voltage rating of the NJL3281DG?
The emitter-base voltage rating is 5 V. - Who is the manufacturer of the NJL3281DG transistor?
The manufacturer is onsemi.
