NJL0302DG
  • Share:

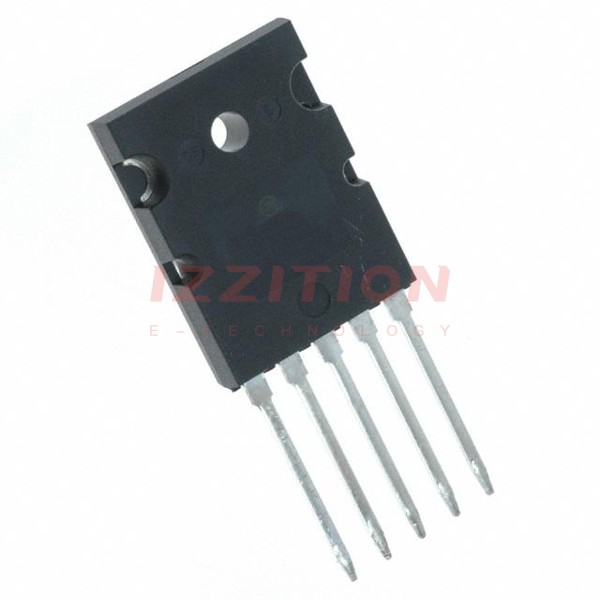

onsemi NJL0302DG

Manufacturer No:
NJL0302DG
Manufacturer:
onsemi
Package:
Bulk
Description:
TRANS PNP 260V 15A TO264
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NJL0302DG is a high-performance bipolar junction transistor (BJT) manufactured by onsemi. This PNP transistor is part of the ThermalTrak family, designed to provide reliable and efficient operation in a variety of applications. The NJL0302DG is known for its robust thermal management capabilities and high current handling, making it suitable for demanding environments.

Key Specifications

Parameter Value Unit
Transistor Polarity PNP
Collector Emitter Voltage Max 260 V
Continuous Collector Current 15 A
Power Dissipation (Pd) 180 W
Gain Bandwidth Product (fT) 30 MHz
Minimum Operating Temperature -65 °C
Maximum Operating Temperature 150 °C
Thermal Resistance, Junction−to−Case (RθJC) 0.694 °C/W
Package Type Through Hole TO-264

Key Features

  • High Current Handling: The NJL0302DG can handle continuous collector currents up to 15 A, making it suitable for high-power applications.
  • ThermalTrak Technology: This technology enhances thermal management by providing a thermal sensing capability, which helps in monitoring and controlling the device temperature.
  • High Gain Bandwidth Product: With a gain bandwidth product of 30 MHz, this transistor is capable of operating at high frequencies.
  • Wide Operating Temperature Range: The transistor can operate in a temperature range from -65°C to 150°C, making it versatile for various environmental conditions.
  • Robust Package: The TO-264 package is designed for through-hole mounting and provides good thermal dissipation and mechanical stability.

Applications

  • Power Amplifiers: The NJL0302DG is suitable for use in power amplifier circuits due to its high current and power handling capabilities.
  • Motor Control: It can be used in motor control applications where high current and reliable operation are required.
  • Industrial Automation: This transistor is used in various industrial automation systems where robust and reliable performance is necessary.
  • Automotive Systems: The NJL0302DG can be used in automotive systems that require high power and reliable operation over a wide temperature range.

Q & A

  1. What is the maximum collector current of the NJL0302DG?

    The maximum continuous collector current of the NJL0302DG is 15 A.

  2. What is the maximum collector-emitter voltage of the NJL0302DG?

    The maximum collector-emitter voltage of the NJL0302DG is 260 V.

  3. What is the gain bandwidth product (fT) of the NJL0302DG?

    The gain bandwidth product (fT) of the NJL0302DG is 30 MHz.

  4. What is the operating temperature range of the NJL0302DG?

    The NJL0302DG operates in a temperature range from -65°C to 150°C.

  5. What package type is the NJL0302DG available in?

    The NJL0302DG is available in a Through Hole TO-264 package.

  6. What is the thermal resistance, junction-to-case (RθJC) of the NJL0302DG?

    The thermal resistance, junction-to-case (RθJC) of the NJL0302DG is 0.694 °C/W.

  7. What are some common applications of the NJL0302DG?

    The NJL0302DG is commonly used in power amplifiers, motor control, industrial automation, and automotive systems.

  8. Does the NJL0302DG have any special thermal management features?

    Yes, the NJL0302DG features ThermalTrak technology, which enhances thermal management by providing thermal sensing capabilities.

  9. How much power can the NJL0302DG dissipate?

    The NJL0302DG can dissipate up to 180 W of power.

  10. What is the polarity of the NJL0302DG transistor?

    The NJL0302DG is a PNP transistor.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):15 A
Voltage - Collector Emitter Breakdown (Max):260 V
Vce Saturation (Max) @ Ib, Ic:1V @ 500mA, 5A
Current - Collector Cutoff (Max):10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:75 @ 3A, 5V
Power - Max:180 W
Frequency - Transition:30MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-264-5
Supplier Device Package:TO-264
0 Remaining View Similar

In Stock

$2.98
175

Please send RFQ , we will respond immediately.

Same Series
NJL0281DG
NJL0281DG
TRANS NPN 260V 15A TO264

Similar Products

Part Number NJL0302DG NJL1302DG NJL4302DG
Manufacturer onsemi onsemi onsemi
Product Status Active Active Obsolete
Transistor Type PNP PNP + Diode (Isolated) PNP
Current - Collector (Ic) (Max) 15 A 15 A 15 A
Voltage - Collector Emitter Breakdown (Max) 260 V 260 V 350 V
Vce Saturation (Max) @ Ib, Ic 1V @ 500mA, 5A 3V @ 1A, 10A 1V @ 800mA, 8A
Current - Collector Cutoff (Max) 10µA (ICBO) 50µA (ICBO) 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce 75 @ 3A, 5V 75 @ 5A, 5V 80 @ 5A, 5V
Power - Max 180 W 200 W 230 W
Frequency - Transition 30MHz 30MHz 35MHz
Operating Temperature -65°C ~ 150°C (TJ) -65°C ~ 150°C (TJ) -65°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole
Package / Case TO-264-5 TO-264-5 TO-264-5
Supplier Device Package TO-264 TO-264 TO-264
