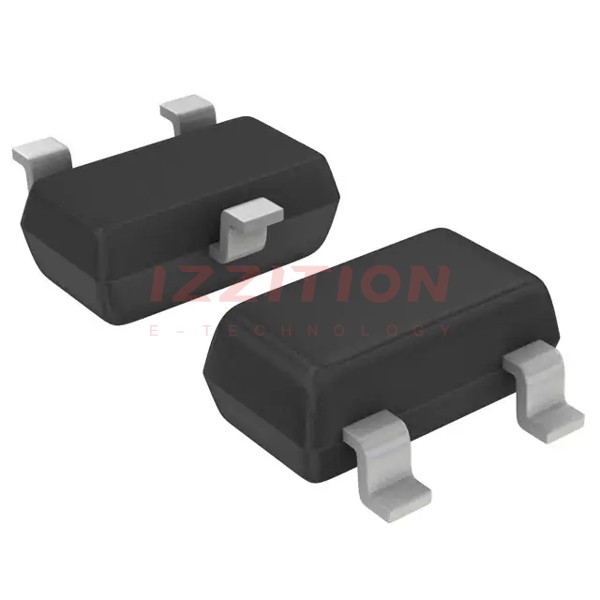

onsemi MSA1162GT1G

Manufacturer No:
MSA1162GT1G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS PNP 50V 0.1A SC59
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MSA1162GT1G is a PNP bipolar transistor designed for use in both linear and switching applications. It is manufactured by onsemi and is housed in the SC-59 surface mount package, which is optimized for lower power surface mount applications. This transistor is Pb-free and has a moisture sensitivity level of 1, making it suitable for a wide range of electronic designs.

Key Specifications

CharacteristicSymbolValueUnit
Collector-Base VoltageV(BR)CBO60Vdc
Collector-Emitter VoltageV(BR)CEO50Vdc
Emitter-Base VoltageV(BR)EBO7.0Vdc
Collector Current - ContinuousIC0.1A
Collector Current - PeakIC(P)0.2A
Power DissipationPD200mW
Junction TemperatureTJ150°C
Storage TemperatureTstg-55 to +150°C
DC Current GainhFE200 - 400-
Collector-Emitter Saturation VoltageVCE(sat)0.5Vdc
Current-Gain - Bandwidth ProductfT80MHz

Key Features

  • Pb-free and RoHS compliant package
  • Moisture sensitivity level of 1
  • Surface mount SC-59 package
  • High DC current gain (hFE) of 200 to 400
  • Low collector-emitter saturation voltage (VCE(sat)) of 0.5 V
  • High current-gain - bandwidth product (fT) of 80 MHz
  • Operating temperature range from -55°C to 150°C

Applications

The MSA1162GT1G is versatile and can be used in a variety of applications, including:

  • Linear amplifiers
  • Switching circuits
  • General-purpose amplification
  • Audio and video circuits
  • Automotive and industrial control systems

Q & A

  1. What is the maximum collector-emitter voltage of the MSA1162GT1G?
    The maximum collector-emitter voltage is 50 Vdc.
  2. What is the continuous collector current rating of the MSA1162GT1G?
    The continuous collector current rating is 0.1 A.
  3. What is the junction temperature limit for the MSA1162GT1G?
    The junction temperature limit is 150°C.
  4. Is the MSA1162GT1G Pb-free and RoHS compliant?
    Yes, the MSA1162GT1G is Pb-free and RoHS compliant.
  5. What is the moisture sensitivity level of the MSA1162GT1G?
    The moisture sensitivity level is 1.
  6. What is the typical DC current gain (hFE) of the MSA1162GT1G?
    The typical DC current gain (hFE) is between 200 and 400.
  7. What is the collector-emitter saturation voltage (VCE(sat)) of the MSA1162GT1G?
    The collector-emitter saturation voltage (VCE(sat)) is 0.5 V.
  8. What is the current-gain - bandwidth product (fT) of the MSA1162GT1G?
    The current-gain - bandwidth product (fT) is 80 MHz.
  9. In what package is the MSA1162GT1G available?
    The MSA1162GT1G is available in the SC-59 surface mount package.
  10. What are the typical applications for the MSA1162GT1G?
    The MSA1162GT1G is typically used in linear amplifiers, switching circuits, general-purpose amplification, audio and video circuits, and automotive and industrial control systems.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 10mA, 100mA
Current - Collector Cutoff (Max):100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 2mA, 6V
Power - Max:200 mW
Frequency - Transition:80MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SC-59
