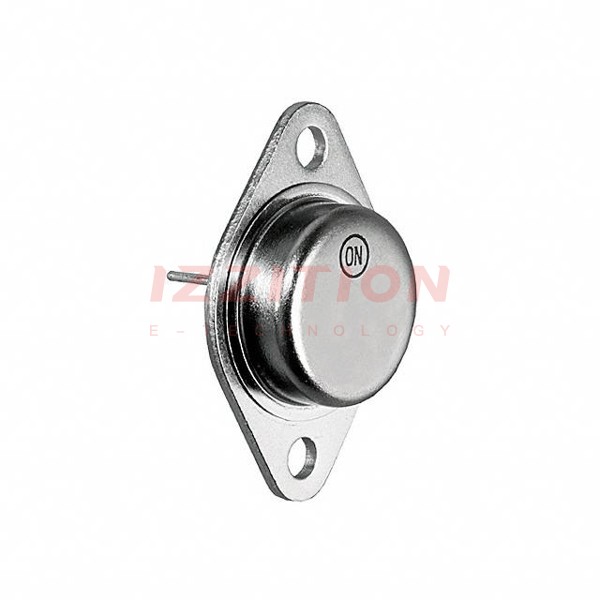

onsemi MJ11015G

Manufacturer No:
MJ11015G
Manufacturer:
onsemi
Package:
Tray
Description:
TRANS PNP DARL 120V 30A TO204
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MJ11015G is a high-current Darlington power transistor manufactured by onsemi. This PNP transistor is part of the MJ11015 series and is known for its high DC current gain and monolithic construction with a built-in base-emitter shunt resistor. It is designed for use as an output device in complementary general-purpose amplifier applications. The transistor features a TO-204 (TO-3) package and is lead-free, making it suitable for a variety of high-power electronic systems.

Key Specifications

ParameterValueUnit
Collector-Emitter Voltage (VCEO)120Vdc
Collector-Base Voltage (VCB)120Vdc
Emitter-Base Voltage (VEB)5Vdc
Collector Current (IC)30A
Base Current (IB)1A
Total Device Dissipation (PD)200W
Junction Temperature (TJ)-55 to +200°C
Thermal Resistance, Junction-to-Case (RJC)0.87°C/W
Maximum Lead Temperature for Soldering275°C
DC Current Gain (hFE) @ IC = 20 A, VCE = 5 Vdc1000 (Min)
Collector-Emitter Saturation Voltage (VCE(sat)) @ IC = 20 A, IB = 200 mA3Vdc
Base-Emitter Saturation Voltage (VBE(sat)) @ IC = 20 A, IB = 200 mA3.5Vdc

Key Features

  • High DC Current Gain: The MJ11015G has a minimum DC current gain (hFE) of 1000 at IC = 20 A and VCE = 5 Vdc, ensuring high amplification efficiency.
  • Monolithic Construction: The transistor features a monolithic construction with a built-in base-emitter shunt resistor, enhancing its reliability and performance.
  • High Power Handling: With a total device dissipation of 200 W and a collector current of 30 A, this transistor is suitable for high-power applications.
  • Wide Operating Temperature Range: The transistor can operate over a junction temperature range of -55°C to +200°C, making it versatile for various environmental conditions.
  • Lead-Free Packaging: The TO-204 (TO-3) package is lead-free, complying with environmental regulations and standards.

Applications

The MJ11015G is designed for use in various high-current and high-power electronic systems, including:

  • General-Purpose Amplifiers: Suitable for output stages in complementary amplifier configurations.
  • Power Supplies: Can be used in high-current power supply circuits.
  • Motor Control: Ideal for motor control applications requiring high current and voltage handling.
  • Audio Amplifiers: Used in high-power audio amplifiers for efficient signal amplification.

Q & A

  1. What is the collector-emitter voltage rating of the MJ11015G transistor?
    The collector-emitter voltage (VCEO) rating is 120 Vdc.
  2. What is the maximum collector current of the MJ11015G transistor?
    The maximum collector current (IC) is 30 A.
  3. What is the DC current gain (hFE) of the MJ11015G transistor?
    The minimum DC current gain (hFE) is 1000 at IC = 20 A and VCE = 5 Vdc.
  4. What is the operating junction temperature range of the MJ11015G transistor?
    The operating junction temperature range is -55°C to +200°C.
  5. What type of package does the MJ11015G transistor use?
    The transistor uses a TO-204 (TO-3) package.
  6. Is the MJ11015G transistor lead-free?
    Yes, the MJ11015G transistor is lead-free.
  7. What are some common applications of the MJ11015G transistor?
    Common applications include general-purpose amplifiers, power supplies, motor control, and audio amplifiers.
  8. What is the thermal resistance, junction-to-case (RJC) of the MJ11015G transistor?
    The thermal resistance, junction-to-case (RJC) is 0.87 °C/W.
  9. What is the maximum lead temperature for soldering the MJ11015G transistor?
    The maximum lead temperature for soldering is 275 °C.
  10. What is the collector-emitter saturation voltage (VCE(sat)) of the MJ11015G transistor?
    The collector-emitter saturation voltage (VCE(sat)) is 3 Vdc at IC = 20 A and IB = 200 mA.

Product Attributes

Transistor Type:PNP - Darlington
Current - Collector (Ic) (Max):30 A
Voltage - Collector Emitter Breakdown (Max):120 V
Vce Saturation (Max) @ Ib, Ic:4V @ 300mA, 30A
Current - Collector Cutoff (Max):1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:1000 @ 20A, 5V
Power - Max:200 W
Frequency - Transition:4MHz
Operating Temperature:-55°C ~ 200°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-204AA, TO-3
Supplier Device Package:TO-204 (TO-3)
