MJ11016G
  • Share:

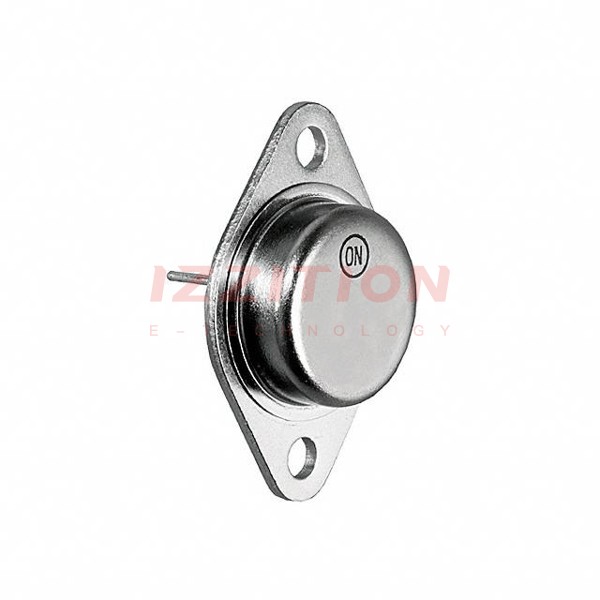

onsemi MJ11016G

Manufacturer No:
MJ11016G
Manufacturer:
onsemi
Package:
Bulk
Description:
TRANS NPN DARL 120V 30A TO204
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MJ11016G is a high-current Darlington power transistor produced by onsemi. This NPN transistor is part of the MJ11012, MJ11015, and MJ11016 series, which are designed for use as output devices in complementary general-purpose amplifier applications. The MJ11016G is housed in a TO-3 package and is lead-free, making it suitable for a wide range of industrial and commercial applications.

Key Specifications

Parameter Symbol Value Unit
Collector-Emitter Voltage VCEO 120 Vdc
Collector-Base Voltage VCB 120 Vdc
Emitter-Base Voltage VEB 5 Vdc
Collector Current IC 30 Adc
Base Current IB 1 Adc
Total Device Dissipation @ TC = 25°C PD 200 W
Derate above 25°C @ TC = 100°C PD 1.15 W/°C
Operating Junction Temperature Range TJ, Tstg -55 to +200 °C
Thermal Resistance, Junction-to-Case RJC 0.87 °C/W
Maximum Lead Temperature for Soldering Purposes TL 275 °C
DC Current Gain (IC = 20 Adc, VCE = 5 Vdc) hFE 1000 (Min)
Collector-Emitter Saturation Voltage (IC = 20 Adc, IB = 200 mAdc) VCE(sat) 3 Vdc
Base-Emitter Saturation Voltage (IC = 20 A, IB = 200 mAdc) VBE(sat) 3.5 Vdc

Key Features

  • High DC Current Gain: The MJ11016G has a minimum DC current gain (hFE) of 1000 at IC = 20 Adc and VCE = 5 Vdc, ensuring high amplification capabilities.
  • Monolithic Construction: The transistor features a monolithic construction with a built-in base-emitter shunt resistor, enhancing its reliability and performance.
  • High Collector Current: It can handle a collector current of up to 30 Adc, making it suitable for high-power applications.
  • Wide Operating Temperature Range: The transistor operates within a junction temperature range of -55°C to +200°C, allowing it to function in various environmental conditions.
  • Lead-Free Package: The TO-3 package is lead-free, complying with environmental regulations and making it suitable for modern electronic designs.

Applications

The MJ11016G is designed for use in a variety of applications, including:

  • General-Purpose Amplifiers: It is ideal for output stages in complementary general-purpose amplifier circuits.
  • Power Supplies: The high current and voltage ratings make it suitable for power supply applications.
  • Motor Control: It can be used in motor control circuits due to its high current handling capability.
  • Industrial Automation: The transistor is applicable in various industrial automation systems requiring high-power switching and amplification.

Q & A

  1. What is the maximum collector current of the MJ11016G?

    The maximum collector current of the MJ11016G is 30 Adc.

  2. What is the collector-emitter voltage rating of the MJ11016G?

    The collector-emitter voltage rating of the MJ11016G is 120 Vdc.

  3. What is the DC current gain of the MJ11016G at IC = 20 Adc and VCE = 5 Vdc?

    The DC current gain (hFE) of the MJ11016G at IC = 20 Adc and VCE = 5 Vdc is a minimum of 1000.

  4. What is the operating junction temperature range of the MJ11016G?

    The operating junction temperature range of the MJ11016G is -55°C to +200°C.

  5. Is the MJ11016G lead-free?

    Yes, the MJ11016G is housed in a lead-free TO-3 package.

  6. What is the thermal resistance, junction-to-case, of the MJ11016G?

    The thermal resistance, junction-to-case, of the MJ11016G is 0.87 °C/W.

  7. What is the maximum lead temperature for soldering purposes?

    The maximum lead temperature for soldering purposes is 275°C for ≤ 10 seconds.

  8. What are some typical applications of the MJ11016G?

    The MJ11016G is typically used in general-purpose amplifiers, power supplies, motor control, and industrial automation systems.

  9. Does the MJ11016G have a built-in base-emitter shunt resistor?

    Yes, the MJ11016G features a monolithic construction with a built-in base-emitter shunt resistor.

  10. What is the collector-emitter saturation voltage of the MJ11016G at IC = 20 Adc and IB = 200 mAdc?

    The collector-emitter saturation voltage (VCE(sat)) of the MJ11016G at IC = 20 Adc and IB = 200 mAdc is 3 Vdc.

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):30 A
Voltage - Collector Emitter Breakdown (Max):120 V
Vce Saturation (Max) @ Ib, Ic:4V @ 300mA, 30A
Current - Collector Cutoff (Max):1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:1000 @ 20A, 5V
Power - Max:200 W
Frequency - Transition:4MHz
Operating Temperature:-55°C ~ 200°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-204AA, TO-3
Supplier Device Package:TO-204 (TO-3)
0 Remaining View Similar

In Stock

$8.85
104

Please send RFQ , we will respond immediately.

Same Series
MJ11012G
MJ11012G
TRANS NPN DARL 60V 30A TO204
MJ11016
MJ11016
TRANS NPN DARL 120V 30A TO3
MJ11016G
MJ11016G
TRANS NPN DARL 120V 30A TO204

Similar Products

Part Number MJ11016G MJ15016G MJ11012G MJ11015G MJ11016
Manufacturer onsemi onsemi onsemi onsemi Solid State Inc.
Product Status Active Active Active Active Active
Transistor Type NPN - Darlington PNP NPN - Darlington PNP - Darlington NPN - Darlington
Current - Collector (Ic) (Max) 30 A 15 A 30 A 30 A 30 A
Voltage - Collector Emitter Breakdown (Max) 120 V 120 V 60 V 120 V 120 V
Vce Saturation (Max) @ Ib, Ic 4V @ 300mA, 30A 5V @ 7A, 15A 4V @ 300mA, 30A 4V @ 300mA, 30A 4V @ 300mA, 30A
Current - Collector Cutoff (Max) 1mA 100µA 1mA 1mA 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce 1000 @ 20A, 5V 10 @ 4A, 2V 1000 @ 20A, 5V 1000 @ 20A, 5V 1000 @ 20A, 5V
Power - Max 200 W 115 W 200 W 200 W 200 W
Frequency - Transition 4MHz 18MHz 4MHz 4MHz -
Operating Temperature -55°C ~ 200°C (TJ) -65°C ~ 200°C (TJ) -55°C ~ 200°C (TJ) -55°C ~ 200°C (TJ) -65°C ~ 200°C (TJ)
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case TO-204AA, TO-3 TO-204AA, TO-3 TO-204AA, TO-3 TO-204AA, TO-3 TO-204AA, TO-3
Supplier Device Package TO-204 (TO-3) TO-204 (TO-3) TO-204 (TO-3) TO-204 (TO-3) TO-3
