FCPF260N65FL1-F154
  • Share:

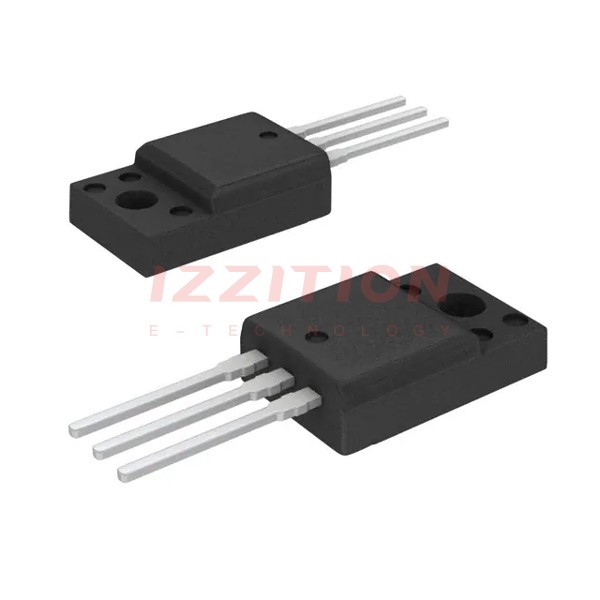

onsemi FCPF260N65FL1-F154

Manufacturer No:
FCPF260N65FL1-F154
Manufacturer:
onsemi
Package:
Tube
Description:
MOSFET N-CH 650V 15A TO220F-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FCPF260N65FL1-F154 is a high-voltage N-Channel MOSFET from onsemi, part of their SUPERFET II and FRFET product lines. This device is designed to offer high performance and reliability in various power management applications. It features a robust TO-220F package, which is lead-free, making it suitable for modern electronic designs that require environmental compliance.

Key Specifications

ParameterValue
Voltage Rating (Vds)650 V
Continuous Drain Current (Id)15 A
On-Resistance (Rds(on))260 mΩ
Package TypeTO-220F (Pb-Free)
Operating Temperature Range-55°C to 150°C

Key Features

  • High voltage rating of 650 V, making it suitable for high-power applications.
  • Continuous drain current of 15 A, ensuring robust performance.
  • Low on-resistance (Rds(on)) of 260 mΩ, minimizing power losses.
  • TO-220F package which is lead-free, complying with environmental regulations.
  • Wide operating temperature range from -55°C to 150°C, enhancing reliability in various environments.

Applications

The FCPF260N65FL1-F154 MOSFET is ideal for a variety of high-power applications, including:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Industrial power management systems.
  • Aerospace and defense electronics.
  • Automotive systems requiring high reliability and performance.

Q & A

  1. What is the voltage rating of the FCPF260N65FL1-F154 MOSFET? The voltage rating is 650 V.
  2. What is the continuous drain current of this MOSFET? The continuous drain current is 15 A.
  3. What is the on-resistance (Rds(on)) of this device? The on-resistance is 260 mΩ.
  4. What type of package does the FCPF260N65FL1-F154 come in? It comes in a TO-220F package, which is lead-free.
  5. What is the operating temperature range of this MOSFET? The operating temperature range is from -55°C to 150°C.
  6. Is the FCPF260N65FL1-F154 suitable for high-power applications? Yes, it is designed for high-power applications due to its high voltage and current ratings.
  7. Can this MOSFET be used in automotive systems? Yes, it can be used in automotive systems due to its high reliability and performance.
  8. Is the FCPF260N65FL1-F154 environmentally compliant? Yes, it is lead-free, making it compliant with environmental regulations.
  9. What are some common applications for this MOSFET? Common applications include power supplies, motor control systems, industrial power management, and aerospace electronics.
  10. Where can I find detailed specifications for the FCPF260N65FL1-F154? Detailed specifications can be found in the datasheet available on onsemi’s official website or through distributors like Mouser Electronics.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):650 V
Current - Continuous Drain (Id) @ 25°C:15A (Tc)
Drive Voltage (Max Rds On, Min Rds On):-
Rds On (Max) @ Id, Vgs:260mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id:5V @ 1.5mA
Gate Charge (Qg) (Max) @ Vgs:60 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2340 pF @ 100 V
FET Feature:-
Power Dissipation (Max):36W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220F-3
Package / Case:TO-220-3 Full Pack
0 Remaining View Similar

In Stock

$1.54
592

Please send RFQ , we will respond immediately.
