FCH47N60-F133
  • Share:

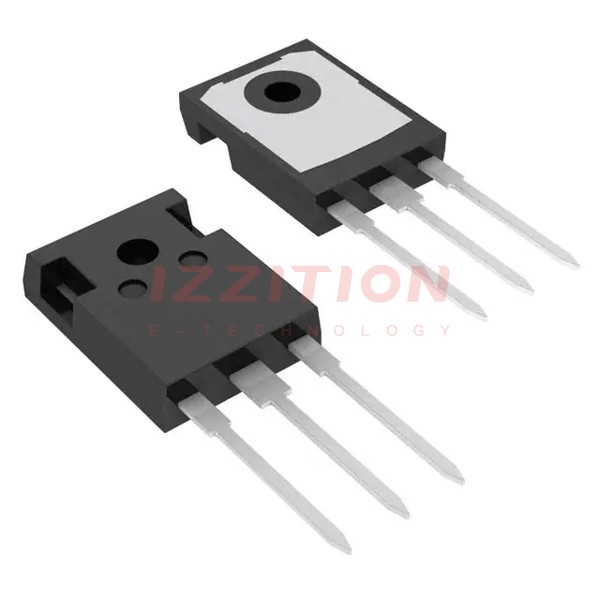

onsemi FCH47N60-F133

Manufacturer No:
FCH47N60-F133
Manufacturer:
onsemi
Package:
Tube
Description:
MOSFET N-CH 600V 47A TO-247
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FCH47N60-F133 is a high-voltage N-Channel MOSFET from onsemi, part of their SuperFET II family. This device utilizes charge balance technology to achieve outstanding low on-resistance and lower gate charge performance. It is designed to minimize conduction loss and provide superior switching performance, making it highly suitable for various high-power applications.

Key Specifications

ParameterValueUnit
Drain to Source Voltage (VDSS)600V
Gate to Source Voltage (VGSS)±30V
Continuous Drain Current (ID) at TC = 25°C47A
Continuous Drain Current (ID) at TC = 100°C29.7A
Pulsed Drain Current (IDM)141A
Static Drain to Source On Resistance (RDS(ON)) at VGS = 10 V0.058 - 0.070mΩ
Gate Threshold Voltage (VGS(th))3 - 5V
Total Gate Charge (Qg(tot)) at VGS = 10 V210 - 270nC
Thermal Resistance, Junction to Case (RθJC)0.3°C/W
Operating and Storage Temperature Range-55 to +150°C

Key Features

  • Ultra-low on-resistance (Typ. RDS(ON) = 58 mΩ) at VGS = 10 V.
  • Low effective output capacitance (Typ. Coss(eff.) = 420 pF).
  • Ultra-low gate charge (Typ. Qg = 210 nC).
  • 100% avalanche tested.
  • Pb-free and RoHS compliant.
  • High dv/dt rate and higher avalanche energy.

Applications

  • Telecom and server power supplies.
  • Industrial power supplies.
  • Power factor correction (PFC) applications.
  • FPD TV power supplies.
  • ATX power supplies.

Q & A

  1. What is the maximum drain to source voltage of the FCH47N60-F133 MOSFET?
    The maximum drain to source voltage (VDSS) is 600 V.
  2. What is the continuous drain current rating at 25°C?
    The continuous drain current (ID) at TC = 25°C is 47 A.
  3. What is the typical on-resistance of the FCH47N60-F133?
    The typical static drain to source on resistance (RDS(ON)) at VGS = 10 V is 58 mΩ.
  4. Is the FCH47N60-F133 Pb-free and RoHS compliant?
    Yes, the device is Pb-free and RoHS compliant.
  5. What are the typical gate charge values for this MOSFET?
    The total gate charge (Qg(tot)) at VGS = 10 V is typically 210 nC.
  6. What is the thermal resistance from junction to case?
    The thermal resistance from junction to case (RθJC) is 0.3 °C/W.
  7. What are the operating and storage temperature ranges for this device?
    The operating and storage temperature range is -55 to +150 °C.
  8. What are some common applications for the FCH47N60-F133?
    Common applications include telecom and server power supplies, industrial power supplies, PFC applications, FPD TV power supplies, and ATX power supplies.
  9. What is the maximum pulsed drain current rating?
    The maximum pulsed drain current (IDM) is 141 A.
  10. What is the gate threshold voltage range for this MOSFET?
    The gate threshold voltage (VGS(th)) range is 3 to 5 V.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):600 V
Current - Continuous Drain (Id) @ 25°C:47A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:70mOhm @ 23.5A, 10V
Vgs(th) (Max) @ Id:5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:270 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:8000 F @ 25 V
FET Feature:-
Power Dissipation (Max):417W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-247-3
Package / Case:TO-247-3
0 Remaining View Similar

In Stock

$9.03
86

Please send RFQ , we will respond immediately.

Similar Products

Part Number FCH47N60-F133 FCH47N60F-F133
Manufacturer onsemi onsemi
Product Status Active Active
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V 600 V
Current - Continuous Drain (Id) @ 25°C 47A (Tc) 47A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V
Rds On (Max) @ Id, Vgs 70mOhm @ 23.5A, 10V 70mOhm @ 23.5A, 10V
Vgs(th) (Max) @ Id 5V @ 250µA 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 270 nC @ 10 V 270 nC @ 10 V
Vgs (Max) ±30V ±30V
Input Capacitance (Ciss) (Max) @ Vds 8000 F @ 25 V 8000 pF @ 25 V
FET Feature - -
Power Dissipation (Max) 417W (Tc) 417W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole
Supplier Device Package TO-247-3 TO-247-3
Package / Case TO-247-3 TO-247-3
