onsemi BC846BM3T5H

Manufacturer No:
BC846BM3T5H
Manufacturer:
onsemi
Package:
Bulk
Description:
GENERAL PURPOSE TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

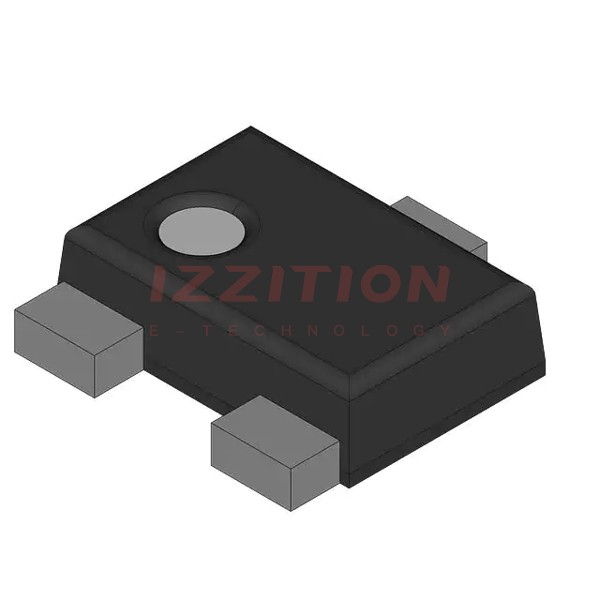

The BC846BM3T5G, produced by onsemi, is an NPN bipolar junction transistor (BJT) designed for general-purpose amplifier applications. This transistor is housed in the SOT-723 package, which is optimized for low power surface mount applications where board space is limited. It is particularly suited for scenarios where compact size and efficient performance are crucial.

Key Specifications

CharacteristicSymbolValueUnit
Collector-Emitter VoltageVCEO65Vdc
Collector-Base VoltageVCBO80Vdc
Emitter-Base VoltageVEBO6.0Vdc
Collector Current - ContinuousIC100mAdc
Base-Emitter Voltage (VCE = 5 V, IC = 10 mA)VBE(on)0.66 - 0.7mV
Current-Gain - Bandwidth Product (IC = 10 mA, VCE = 5 Vdc, f = 100 MHz)fT100MHz
Total Device Dissipation (FR-5 Board, TA = 25°C)PD265mW

Key Features

  • Moisture Sensitivity Level: 1
  • ESD Rating: Human Body Model > 4000 V, Machine Model > 400 V
  • AEC-Q101 Qualified and PPAP Capable for automotive and other demanding applications
  • Low voltage operation and high current capability
  • Efficient current transfer for improved performance
  • Pb-Free device
  • Compact SOT-723 package for surface mount applications

Applications

The BC846BM3T5G is suitable for a variety of general-purpose amplifier applications, including but not limited to:

  • Audio amplifiers
  • Switching circuits
  • Automotive electronics (due to AEC-Q101 qualification)
  • Industrial control systems
  • Consumer electronics where compact size and reliability are essential

Q & A

  1. What is the collector-emitter voltage rating of the BC846BM3T5G?
    The collector-emitter voltage rating is 65 Vdc.
  2. What is the maximum collector current for the BC846BM3T5G?
    The maximum collector current is 100 mAdc.
  3. What package type is the BC846BM3T5G available in?
    The BC846BM3T5G is available in the SOT-723 package.
  4. Is the BC846BM3T5G AEC-Q101 qualified?
    Yes, the BC846BM3T5G is AEC-Q101 qualified.
  5. What is the ESD rating of the BC846BM3T5G?
    The ESD rating is > 4000 V for the Human Body Model and > 400 V for the Machine Model.
  6. What is the typical base-emitter voltage for the BC846BM3T5G?
    The typical base-emitter voltage is 0.66 - 0.7 mV at VCE = 5 V and IC = 10 mA.
  7. What is the current-gain-bandwidth product of the BC846BM3T5G?
    The current-gain-bandwidth product is 100 MHz.
  8. Is the BC846BM3T5G Pb-Free?
    Yes, the BC846BM3T5G is a Pb-Free device.
  9. What are the typical applications for the BC846BM3T5G?
    The BC846BM3T5G is used in general-purpose amplifier applications, including audio amplifiers, switching circuits, automotive electronics, and industrial control systems.
  10. What is the moisture sensitivity level of the BC846BM3T5G?
    The moisture sensitivity level is 1.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
