2SB1124T-TD-E
  • Share:

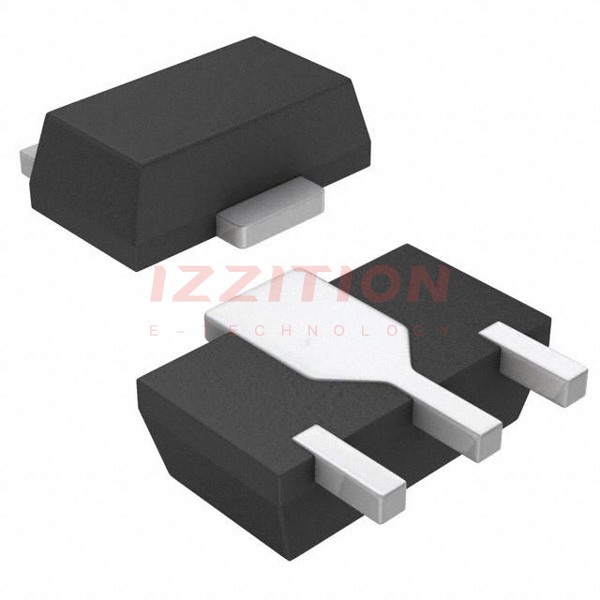

onsemi 2SB1124T-TD-E

Manufacturer No:
2SB1124T-TD-E
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS PNP 50V 3A PCP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2SB1124T-TD-E is a PNP bipolar transistor manufactured by onsemi. This component is part of the 2SB1124/2SD1624 series, known for its low collector-to-emitter saturation voltage, fast switching speed, and large current capacity. It is designed for various applications requiring high performance and reliability.

Key Specifications

ParameterSymbolConditionsRatingsUnit
Collector-to-Base VoltageVCBOTa=25°C-60V
Collector-to-Emitter VoltageVCEOTa=25°C-50V
Emitter-to-Base VoltageVEBOTa=25°C-6V
Collector CurrentICTa=25°C-3A
Collector Current (Pulse)ICPTa=25°C-6A
Junction TemperatureTj-150°C
Storage TemperatureTstg-55 to +150°C
Collector DissipationPCMounted on ceramic substrate (250mm²×0.8mm)1.5W
DC Current Gain (hFE1)hFE1VCE=-2V, IC=-100mA100-560
Collector-to-Emitter Saturation VoltageVCE(sat)IC=-2A, IB=-100mA-0.35 to -0.7V
Base-to-Emitter Saturation VoltageVBE(sat)VCE=-2V, IC=-100mA-0.94 to -1.2V

Key Features

  • Low collector-to-emitter saturation voltage (VCE(sat)) for efficient operation.
  • Fast switching speed, making it suitable for high-frequency applications.
  • Large current capacity with a maximum collector current of 3A.
  • Adoption of FBET and MBIT processes for enhanced performance.
  • Pb-free and halogen-free options available, ensuring environmental compliance.

Applications

The 2SB1124T-TD-E is versatile and can be used in various applications, including:

  • Voltage regulators.
  • Relay drivers.
  • Lamp drivers.
  • Electrical equipment.

Q & A

  1. What is the maximum collector-to-emitter voltage for the 2SB1124T-TD-E?
    The maximum collector-to-emitter voltage (VCEO) is -50V.
  2. What is the maximum collector current for this transistor?
    The maximum collector current (IC) is -3A.
  3. What is the typical collector-to-emitter saturation voltage?
    The typical collector-to-emitter saturation voltage (VCE(sat)) is -0.19 to -0.7V.
  4. What is the junction temperature range for this component?
    The junction temperature (Tj) range is up to 150°C.
  5. Is the 2SB1124T-TD-E Pb-free and halogen-free?
    Yes, Pb-free and halogen-free options are available.
  6. What are the typical applications for the 2SB1124T-TD-E?
    Typical applications include voltage regulators, relay drivers, lamp drivers, and electrical equipment.
  7. What is the package type for the 2SB1124T-TD-E?
    The package type is PCP (Plastic Case PNP), specifically SOT-89-3.
  8. What is the collector dissipation when mounted on a ceramic substrate?
    The collector dissipation (PC) is 1.5W when mounted on a ceramic substrate (250mm²×0.8mm).
  9. What is the DC current gain (hFE) range for this transistor?
    The DC current gain (hFE) range is 100 to 560 at VCE=-2V and IC=-100mA.
  10. What is the storage temperature range for the 2SB1124T-TD-E?
    The storage temperature (Tstg) range is -55 to +150°C.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):3 A
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:700mV @ 100mA, 2A
Current - Collector Cutoff (Max):1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 100mA, 2V
Power - Max:500 mW
Frequency - Transition:150MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:PCP
0 Remaining View Similar

In Stock

$0.56
175

Please send RFQ , we will respond immediately.

Same Series
2SD1624T-TD-E
2SD1624T-TD-E
TRANS NPN 50V 3A PCP
2SD1624S-TD-E
2SD1624S-TD-E
TRANS NPN 50V 3A PCP
2SD1624S-TD-H
2SD1624S-TD-H
TRANS NPN 50V 3A PCP
2SB1124S-TD-H
2SB1124S-TD-H
TRANS PNP 50V 3A PCP
2SB1124T-TD-H
2SB1124T-TD-H
TRANS PNP 50V 3A PCP
2SD1624T-TD-H
2SD1624T-TD-H
TRANS NPN 50V 3A PCP
2SB1124S-TD-E
2SB1124S-TD-E
TRANS PNP 50V 3A PCP

Similar Products

Part Number 2SB1124T-TD-E 2SB1124T-TD-H 2SB1121T-TD-E 2SB1122T-TD-E 2SB1123T-TD-E 2SB1124S-TD-E
Manufacturer onsemi onsemi onsemi onsemi onsemi onsemi
Product Status Obsolete Obsolete Active Obsolete Active Obsolete
Transistor Type PNP PNP PNP PNP - PNP
Current - Collector (Ic) (Max) 3 A 3 A 2 A 1 A - 3 A
Voltage - Collector Emitter Breakdown (Max) 50 V 50 V 25 V 50 V - 50 V
Vce Saturation (Max) @ Ib, Ic 700mV @ 100mA, 2A 700mV @ 100mA, 2A 600mV @ 75mA, 1.5A 500mV @ 50mA, 500mA - 700mV @ 100mA, 2A
Current - Collector Cutoff (Max) 1µA (ICBO) 1µA (ICBO) 100nA (ICBO) 100nA (ICBO) - 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 100mA, 2V 200 @ 100mA, 2V 100 @ 100mA, 2V 100 @ 100mA, 2V - 140 @ 100mA, 2V
Power - Max 500 mW 500 mW 500 mW 500 mW - 500 mW
Frequency - Transition 150MHz 150MHz 150MHz 150MHz - 150MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) - 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount - Surface Mount
Package / Case TO-243AA TO-243AA TO-243AA TO-243AA - TO-243AA
Supplier Device Package PCP PCP PCP PCP - PCP
