2SD1624T-TD-E
  • Share:

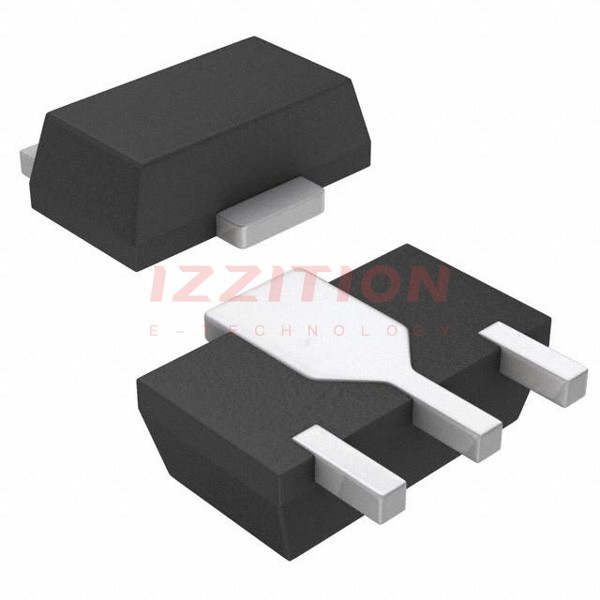

onsemi 2SD1624T-TD-E

Manufacturer No:
2SD1624T-TD-E
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS NPN 50V 3A PCP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2SD1624T-TD-E is a discrete NPN bipolar junction transistor (BJT) manufactured by onsemi. This transistor is designed for a wide range of power amplification and switching applications. It features advanced technologies such as the FBET (Field-Effect Bipolar Transistor) and MBIT (Merged Bipolar Insulated Gate Transistor) processes, which enhance its performance and reliability.

Key Specifications

Parameter Symbol Conditions Ratings Unit
Collector-to-Base Voltage VCBO - -60 V
Collector-to-Emitter Voltage VCEO - -50 V
Emitter-to-Base Voltage VEBO - -6 V
Collector Current IC - -3 A A
Collector Current (Pulse) ICP - -6 A A
Junction Temperature Tj - 150 °C °C
Storage Temperature Tstg -55 to +150 °C
Collector Dissipation PC Mounted on ceramic substrate (250mm² x 0.8mm) 1.5 W W
DC Current Gain (hFE1) hFE1 VCE = -2 V, IC = -100 mA 100 to 560 -
Collector-to-Emitter Saturation Voltage VCE(sat) IC = -2 A, IB = -100 mA -0.35 to -0.7 V V
Base-to-Emitter Saturation Voltage VBE(sat) IC = -2 A, IB = -100 mA -0.94 to -1.2 V V
Gain-Bandwidth Product fT VCE = -10 V, IC = -50 mA 150 MHz MHz

Key Features

  • Advanced Processes: Utilizes FBET and MBIT processes for enhanced performance and reliability.
  • Low VCE(sat): Offers low collector-to-emitter saturation voltage, which is beneficial for reducing power losses.
  • Fast Switching Speed: Features fast switching times, making it suitable for high-frequency applications.
  • Large Current Capacity: Supports high collector current up to 3 A and pulse current up to 6 A.
  • Compact Package: Available in PCP (Plastic Chip Carrier) package, which is compact and suitable for various applications.

Applications

  • Voltage Regulators: Used in voltage regulator circuits due to its high current handling and low VCE(sat).
  • Relay Drivers: Suitable for driving relays in various control systems.
  • Lamp Drivers: Can be used to drive lamps and other high-current loads.
  • Electrical Equipment: Used in a variety of electrical equipment requiring high current and low voltage drop.

Q & A

  1. What is the maximum collector-to-emitter voltage for the 2SD1624T-TD-E?

    The maximum collector-to-emitter voltage (VCEO) is -50 V.

  2. What is the maximum collector current for the 2SD1624T-TD-E?

    The maximum collector current (IC) is -3 A, and the maximum pulse current (ICP) is -6 A.

  3. What is the typical DC current gain (hFE) for the 2SD1624T-TD-E?

    The typical DC current gain (hFE) ranges from 100 to 560, depending on the current and voltage conditions.

  4. What is the collector-to-emitter saturation voltage (VCE(sat)) for the 2SD1624T-TD-E?

    The collector-to-emitter saturation voltage (VCE(sat)) is typically between -0.35 V and -0.7 V.

  5. What is the gain-bandwidth product (fT) for the 2SD1624T-TD-E?

    The gain-bandwidth product (fT) is 150 MHz at VCE = -10 V and IC = -50 mA.

  6. What are the typical applications for the 2SD1624T-TD-E?

    Typical applications include voltage regulators, relay drivers, lamp drivers, and various electrical equipment.

  7. What package type is the 2SD1624T-TD-E available in?

    The 2SD1624T-TD-E is available in the PCP (Plastic Chip Carrier) package.

  8. What is the maximum junction temperature for the 2SD1624T-TD-E?

    The maximum junction temperature (Tj) is 150 °C.

  9. What is the storage temperature range for the 2SD1624T-TD-E?

    The storage temperature range (Tstg) is from -55 °C to +150 °C.

  10. What is the collector dissipation for the 2SD1624T-TD-E when mounted on a ceramic substrate?

    The collector dissipation (PC) is 1.5 W when mounted on a ceramic substrate (250mm² x 0.8mm).

  11. Is the 2SD1624T-TD-E lead-free and halogen-free?

    Yes, the 2SD1624T-TD-E is available in lead-free and halogen-free versions.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):3 A
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 100mA, 2A
Current - Collector Cutoff (Max):1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 100mA, 2V
Power - Max:500 mW
Frequency - Transition:150MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:PCP
0 Remaining View Similar

In Stock

$0.77
540

Please send RFQ , we will respond immediately.

Same Series
2SD1624T-TD-E
2SD1624T-TD-E
TRANS NPN 50V 3A PCP
2SD1624S-TD-E
2SD1624S-TD-E
TRANS NPN 50V 3A PCP
2SD1624S-TD-H
2SD1624S-TD-H
TRANS NPN 50V 3A PCP
2SB1124S-TD-H
2SB1124S-TD-H
TRANS PNP 50V 3A PCP
2SB1124T-TD-H
2SB1124T-TD-H
TRANS PNP 50V 3A PCP
2SD1624T-TD-H
2SD1624T-TD-H
TRANS NPN 50V 3A PCP
2SB1124S-TD-E
2SB1124S-TD-E
TRANS PNP 50V 3A PCP

Similar Products

Part Number 2SD1624T-TD-E 2SD1624T-TD-H 2SD1623T-TD-E 2SD1624S-TD-E
Manufacturer onsemi onsemi onsemi onsemi
Product Status Active Active Active Active
Transistor Type NPN NPN NPN NPN
Current - Collector (Ic) (Max) 3 A 3 A 2 A 3 A
Voltage - Collector Emitter Breakdown (Max) 50 V 50 V 50 V 50 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 100mA, 2A 500mV @ 100mA, 2A 400mV @ 50mA, 1A 500mV @ 100mA, 2A
Current - Collector Cutoff (Max) 1µA (ICBO) 1µA (ICBO) 100nA (ICBO) 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 100mA, 2V 200 @ 100mA, 2V 100 @ 100mA, 2V 140 @ 100mA, 2V
Power - Max 500 mW 500 mW 500 mW 500 mW
Frequency - Transition 150MHz 150MHz 150MHz 150MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case TO-243AA TO-243AA TO-243AA TO-243AA
Supplier Device Package PCP PCP PCP PCP
