2SA2016-TD-E
  • Share:

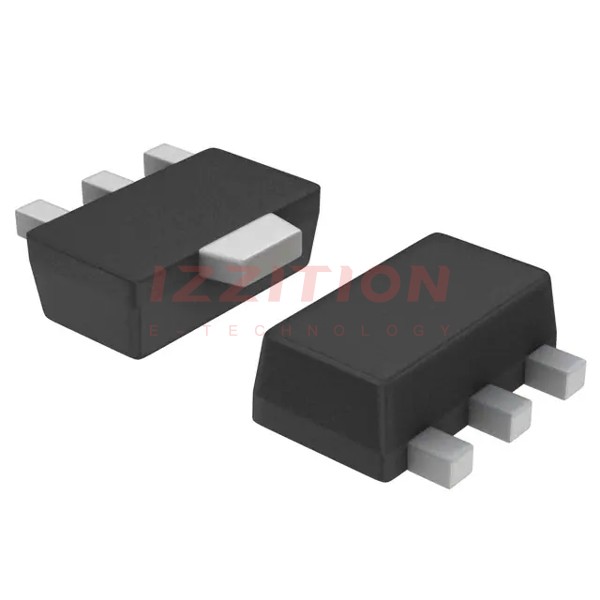

onsemi 2SA2016-TD-E

Manufacturer No:
2SA2016-TD-E
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS PNP 50V 7A PCP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2SA2016-TD-E is a PNP bipolar transistor manufactured by onsemi. This transistor is designed for high-performance applications, particularly in DC-DC converter circuits, relay drivers, and lamp drivers. It features advanced technologies such as the FBET (Field-Effect Bipolar Transistor) and MBIT (Merged Bipolar Insulated Gate Transistor) processes, which enhance its switching speed and current handling capabilities.

Key Specifications

Parameter Value Unit
Collector-Base Voltage (V_CBO) -50 V
Collector-Emitter Voltage (V_CEO) -50 V
Emitter-Base Voltage (V_EBO) -5 V
Collector Current (I_C) -7 A
Base Current (I_B) -500 mA
Collector-Emitter Saturation Voltage (V_CE(sat)) 0.2 V
Power Dissipation (P_C) 3.5 W
Package Type SOT-89-3
RoHS Compliance Yes

Key Features

  • Adoption of FBET and MBIT processes for enhanced performance.
  • Large current capacity, supporting up to 7A collector current.
  • Low collector-to-emitter saturation voltage (V_CE(sat)) of 0.2V.
  • High-speed switching capabilities.
  • Compact SOT-89-3 package for space-efficient designs.
  • RoHS compliant, ensuring environmental sustainability.

Applications

  • DC-DC converter applications.
  • Relay drivers.
  • Lamp drivers.
  • General-purpose switching and amplification.

Q & A

  1. What is the collector-emitter voltage rating of the 2SA2016-TD-E transistor?

    The collector-emitter voltage rating is -50V.

  2. What is the maximum collector current for the 2SA2016-TD-E?

    The maximum collector current is 7A.

  3. What package type is the 2SA2016-TD-E transistor available in?

    The transistor is available in the SOT-89-3 package.

  4. Is the 2SA2016-TD-E RoHS compliant?

    Yes, the 2SA2016-TD-E is RoHS compliant.

  5. What are the key processes used in the 2SA2016-TD-E transistor?

    The transistor uses FBET and MBIT processes.

  6. What is the typical collector-emitter saturation voltage (V_CE(sat)) of the 2SA2016-TD-E?

    The typical V_CE(sat) is 0.2V.

  7. What are some common applications of the 2SA2016-TD-E transistor?

    Common applications include DC-DC converters, relay drivers, and lamp drivers.

  8. What is the power dissipation rating of the 2SA2016-TD-E transistor?

    The power dissipation rating is 3.5W.

  9. Does the 2SA2016-TD-E support high-speed switching?

    Yes, the transistor is designed for high-speed switching applications.

  10. Where can I find detailed specifications for the 2SA2016-TD-E transistor?

    Detailed specifications can be found in the datasheet available on onsemi's official website and other electronic component distributors like Mouser and TME.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):7 A
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:400mV @ 40mA, 2A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 500mA, 2V
Power - Max:3.5 W
Frequency - Transition:330MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:PCP
0 Remaining View Similar

In Stock

$0.90
546

Please send RFQ , we will respond immediately.

Same Series
2SC5569-TD-E
2SC5569-TD-E
TRANS NPN 50V 7A SOT89/PCP-1

Similar Products

Part Number 2SA2016-TD-E 2SA2011-TD-E 2SA2012-TD-E 2SA2013-TD-E 2SA2014-TD-E 2SA2015-TD-E
Manufacturer onsemi onsemi onsemi onsemi onsemi onsemi
Product Status Active Active Active Active Active Active
Transistor Type PNP - PNP PNP - -
Current - Collector (Ic) (Max) 7 A - 5 A 4 A - -
Voltage - Collector Emitter Breakdown (Max) 50 V - 30 V 50 V - -
Vce Saturation (Max) @ Ib, Ic 400mV @ 40mA, 2A - 210mV @ 30mA, 1.5A 340mV @ 100mA, 2A - -
Current - Collector Cutoff (Max) 100nA (ICBO) - 100nA (ICBO) 1µA (ICBO) - -
DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 500mA, 2V - 200 @ 500mA, 2V 200 @ 500mA, 2V - -
Power - Max 3.5 W - 3.5 W 3.5 W - -
Frequency - Transition 330MHz - 420MHz 400MHz - -
Operating Temperature 150°C (TJ) - 150°C (TJ) 150°C (TJ) - -
Mounting Type Surface Mount - Surface Mount Surface Mount - -
Package / Case TO-243AA - TO-243AA TO-243AA - -
Supplier Device Package PCP - PCP PCP - -
