2SA2013-TD-E
  • Share:

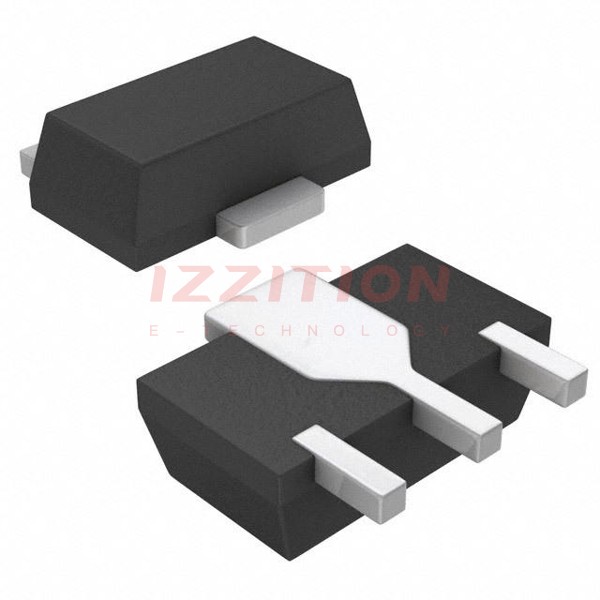

onsemi 2SA2013-TD-E

Manufacturer No:
2SA2013-TD-E
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS PNP 50V 4A PCP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2SA2013-TD-E is a bipolar transistor produced by onsemi, designed for high-performance applications. This transistor is part of the 2SA2013/2SC5566 series and is known for its low collector-to-emitter saturation voltage and high-speed switching capabilities. It is packaged in a PCP (Plastic Chip Carrier) package, which facilitates miniaturization in end products.

Key Specifications

Parameter Symbol Conditions Ratings Unit
Collector-to-Base Voltage VCBO - -50 to 100 V
Collector-to-Emitter Voltage VCES - -50 to 100 V
Collector Current IC - -4 A A
Collector Current (Pulse) ICP - -7 A A
Base Current IB - -600 mA mA
Collector Dissipation PC When mounted on ceramic substrate (250mm² x 0.8mm) 1.3 W (Tc=25°C), 3.5 W (Tc=25°C) W
Junction Temperature Tj - 150 °C °C
Storage Temperature Tstg - -55 to +150 °C °C
DC Current Gain hFE VCE = -2 V, IC = -500 mA 200 to 560 -
Collector-to-Emitter Saturation Voltage VCE(sat) IC = -1 A, IB = -50 mA -105 to -85 mV mV
Base-to-Emitter Saturation Voltage VBE(sat) IC = -2 A, IB = -100 mA -0.89 to -1.2 V V

Key Features

  • Adoption of FBET and MBIT processes for enhanced performance.
  • Large current capacity with a collector current of up to 4 A.
  • Low collector-to-emitter saturation voltage (VCE(sat)) for efficient operation.
  • High-speed switching capabilities.
  • Ultrasmall package (PCP) facilitating miniaturization in end products.
  • High allowable power dissipation.

Applications

  • Relay drivers.
  • Lamp drivers.
  • Motor drivers.
  • Flash drivers.

Q & A

  1. What is the maximum collector current of the 2SA2013-TD-E transistor?

    The maximum collector current is -4 A.

  2. What is the collector-to-emitter saturation voltage (VCE(sat)) of the 2SA2013-TD-E transistor?

    The VCE(sat) ranges from -105 to -85 mV for IC = -1 A and IB = -50 mA.

  3. What is the base-to-emitter saturation voltage (VBE(sat)) of the 2SA2013-TD-E transistor?

    The VBE(sat) ranges from -0.89 to -1.2 V for IC = -2 A and IB = -100 mA.

  4. What are the typical applications of the 2SA2013-TD-E transistor?

    Typical applications include relay drivers, lamp drivers, motor drivers, and flash drivers.

  5. What is the junction temperature rating of the 2SA2013-TD-E transistor?

    The junction temperature rating is 150 °C.

  6. What is the storage temperature range for the 2SA2013-TD-E transistor?

    The storage temperature range is -55 to +150 °C.

  7. What is the DC current gain (hFE) of the 2SA2013-TD-E transistor?

    The DC current gain (hFE) ranges from 200 to 560 for VCE = -2 V and IC = -500 mA.

  8. What is the package type of the 2SA2013-TD-E transistor?

    The package type is PCP (Plastic Chip Carrier).

  9. What is the maximum collector dissipation of the 2SA2013-TD-E transistor when mounted on a ceramic substrate?

    The maximum collector dissipation is 1.3 W at Tc=25°C and 3.5 W at Tc=25°C when mounted on a ceramic substrate (250mm² x 0.8mm).

  10. Is the 2SA2013-TD-E transistor suitable for high-speed switching applications?

    Yes, the transistor is designed for high-speed switching applications.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):4 A
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:340mV @ 100mA, 2A
Current - Collector Cutoff (Max):1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 500mA, 2V
Power - Max:3.5 W
Frequency - Transition:400MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:PCP
0 Remaining View Similar

In Stock

$0.77
1,205

Please send RFQ , we will respond immediately.

Same Series
2SC5566-TD-E
2SC5566-TD-E
TRANS NPN 50V 4A PCP

Similar Products

Part Number 2SA2013-TD-E 2SA2014-TD-E 2SA2015-TD-E 2SA2016-TD-E 2SA2011-TD-E 2SA2012-TD-E
Manufacturer onsemi onsemi onsemi onsemi onsemi onsemi
Product Status Active Active Active Active Active Active
Transistor Type PNP - - PNP - PNP
Current - Collector (Ic) (Max) 4 A - - 7 A - 5 A
Voltage - Collector Emitter Breakdown (Max) 50 V - - 50 V - 30 V
Vce Saturation (Max) @ Ib, Ic 340mV @ 100mA, 2A - - 400mV @ 40mA, 2A - 210mV @ 30mA, 1.5A
Current - Collector Cutoff (Max) 1µA (ICBO) - - 100nA (ICBO) - 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 500mA, 2V - - 200 @ 500mA, 2V - 200 @ 500mA, 2V
Power - Max 3.5 W - - 3.5 W - 3.5 W
Frequency - Transition 400MHz - - 330MHz - 420MHz
Operating Temperature 150°C (TJ) - - 150°C (TJ) - 150°C (TJ)
Mounting Type Surface Mount - - Surface Mount - Surface Mount
Package / Case TO-243AA - - TO-243AA - TO-243AA
Supplier Device Package PCP - - PCP - PCP
