2SC5566-TD-E
  • Share:

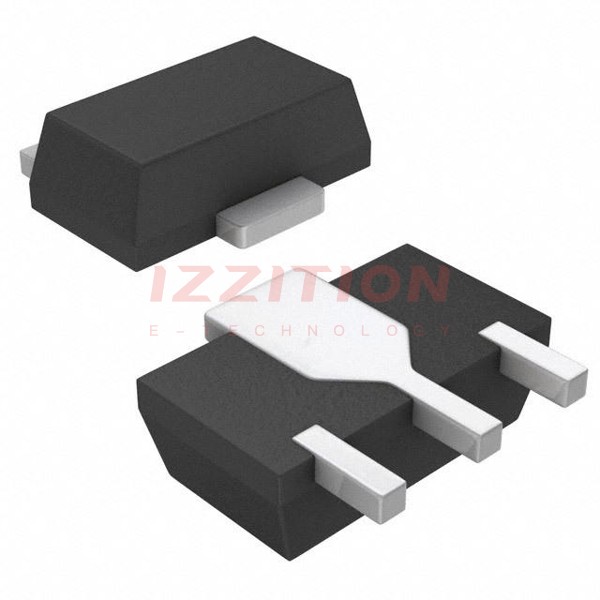

onsemi 2SC5566-TD-E

Manufacturer No:
2SC5566-TD-E
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS NPN 50V 4A PCP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2SC5566-TD-E is a high-performance NPN bipolar junction transistor (BJT) manufactured by onsemi. This transistor is designed for various power management and switching applications, particularly in DC-DC converters. It features a low collector-to-emitter saturation voltage (VCE(sat)), making it efficient for high-current and low-loss operations.

Key Specifications

Parameter Value
Type NPN Bipolar Junction Transistor (BJT)
Collector-Emitter Voltage (Vce) 50 V
Collector Current (Ic) 4 A
Power Dissipation (Pd) 3.5 W
Collector-to-Emitter Saturation Voltage (Vce(sat)) 200 mV @ 500 mA, 2 V
Package Type SOT-89-3
RoHS Compliance Yes

Key Features

  • Adoption of FBET and MBIT processes for enhanced performance.
  • Large current capacity, supporting up to 4 A of collector current.
  • Low collector-to-emitter saturation voltage (Vce(sat)) for reduced power losses.
  • Compact SOT-89-3 package suitable for surface mount applications.
  • RoHS compliant, ensuring environmental sustainability.

Applications

The 2SC5566-TD-E is primarily designed for DC-DC converter applications, where high current handling and low power losses are critical. It is also suitable for other power management and switching applications that require reliable and efficient performance.

Q & A

  1. What is the collector-emitter voltage rating of the 2SC5566-TD-E?

    The collector-emitter voltage rating is 50 V.

  2. What is the maximum collector current of the 2SC5566-TD-E?

    The maximum collector current is 4 A.

  3. What is the power dissipation of the 2SC5566-TD-E?

    The power dissipation is 3.5 W.

  4. What is the collector-to-emitter saturation voltage (Vce(sat)) of the 2SC5566-TD-E?

    The Vce(sat) is 200 mV @ 500 mA, 2 V.

  5. What package type does the 2SC5566-TD-E use?

    The package type is SOT-89-3.

  6. Is the 2SC5566-TD-E RoHS compliant?

    Yes, it is RoHS compliant.

  7. What are the primary applications of the 2SC5566-TD-E?

    The primary applications are DC-DC converter and other power management and switching applications.

  8. What processes are used in the manufacturing of the 2SC5566-TD-E?

    The manufacturing uses FBET and MBIT processes.

  9. Why is the low Vce(sat) important in the 2SC5566-TD-E?

    The low Vce(sat) reduces power losses and enhances efficiency in high-current applications.

  10. Where can I find detailed specifications for the 2SC5566-TD-E?

    Detailed specifications can be found in the datasheet available on onsemi's official website and other electronic component distributors like Mouser and TME.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):4 A
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:225mV @ 100mA, 2A
Current - Collector Cutoff (Max):1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 500mA, 2V
Power - Max:1.3 W
Frequency - Transition:400MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:PCP
0 Remaining View Similar

In Stock

$0.76
1,241

Please send RFQ , we will respond immediately.

Same Series
2SC5566-TD-E
2SC5566-TD-E
TRANS NPN 50V 4A PCP

Similar Products

Part Number 2SC5566-TD-E 2SC5569-TD-E
Manufacturer onsemi onsemi
Product Status Active Active
Transistor Type NPN NPN
Current - Collector (Ic) (Max) 4 A 7 A
Voltage - Collector Emitter Breakdown (Max) 50 V 50 V
Vce Saturation (Max) @ Ib, Ic 225mV @ 100mA, 2A 240mV @ 175mA, 3.5A
Current - Collector Cutoff (Max) 1µA (ICBO) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 500mA, 2V 200 @ 500mA, 2V
Power - Max 1.3 W 1.3 W
Frequency - Transition 400MHz 330MHz
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Package / Case TO-243AA TO-243AA
Supplier Device Package PCP SOT-89/PCP-1
