NX3008NBKV/S500115
  • Share:

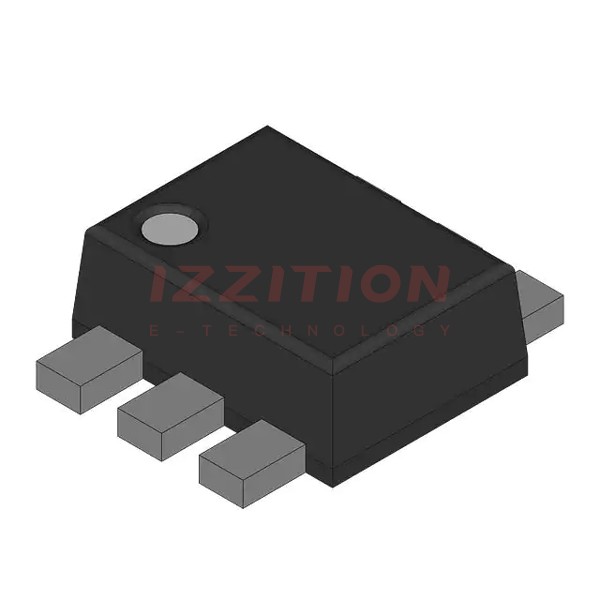

NXP USA Inc. NX3008NBKV/S500115

Manufacturer No:
NX3008NBKV/S500115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL N-CHANNEL MOSFET
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NX3008NBKV is a 30 V, 400 mA dual N-channel Trench MOSFET produced by Nexperia, a company that is often associated with NXP USA Inc. due to its origins. This component is part of Nexperia's extensive portfolio of MOSFETs, known for their high performance and reliability. The NX3008NBKV is designed to offer very fast switching, low threshold voltage, and advanced Trench MOSFET technology, making it suitable for a wide range of applications.

Key Specifications

ParameterValue
Type numberNX3008NBKV
PackageSOT666
Channel typeN
Number of transistors2
VDS [max] (V)30
VGS [max] (V)8
RDSon [max] @ VGS = 4.5 V; @25°C (mΩ)1400
RDSon [max] @ VGS = 2.5 V (mΩ)2100
VESD (kV)2
Tj [max] (°C)150
ID [max] (A)0.4
QGD [typ] (nC)0.08
QG(tot) [typ] @ VGS = 4.5 V (nC)0.52
Ptot [max] (W)0.33
VGSth [typ] (V)0.9

Key Features

  • Very fast switching
  • Low threshold voltage
  • Trench MOSFET technology for improved performance
  • ESD protection up to 2 kV
  • Compact SOT666 package

Applications

The NX3008NBKV is versatile and can be used in various applications across different industries, including:

  • Automotive systems
  • Industrial control systems
  • Power management systems
  • Consumer electronics
  • Mobile and wearable devices

Q & A

  1. What is the maximum drain-source voltage (VDS) of the NX3008NBKV?
    The maximum drain-source voltage (VDS) is 30 V.
  2. What is the maximum gate-source voltage (VGS) of the NX3008NBKV?
    The maximum gate-source voltage (VGS) is 8 V.
  3. What is the typical threshold voltage (VGSth) of the NX3008NBKV?
    The typical threshold voltage (VGSth) is 0.9 V.
  4. What is the maximum drain current (ID) of the NX3008NBKV?
    The maximum drain current (ID) is 0.4 A.
  5. Does the NX3008NBKV have ESD protection?
    Yes, the NX3008NBKV has ESD protection up to 2 kV.
  6. In what package is the NX3008NBKV available?
    The NX3008NBKV is available in the SOT666 package.
  7. What is the maximum junction temperature (Tj) of the NX3008NBKV?
    The maximum junction temperature (Tj) is 150°C.
  8. What are some common applications of the NX3008NBKV?
    The NX3008NBKV is used in automotive, industrial, power management, consumer electronics, and mobile and wearable devices.
  9. Is the NX3008NBKV automotive qualified?
    No, the NX3008NBKV is not specifically listed as automotive qualified.
  10. Where can I purchase the NX3008NBKV?
    The NX3008NBKV can be purchased from various distributors such as Digi-Key, Mouser, and directly from Nexperia.

Product Attributes

FET Type:-
Technology:-
Drain to Source Voltage (Vdss):-
Current - Continuous Drain (Id) @ 25°C:-
Drive Voltage (Max Rds On, Min Rds On):-
Rds On (Max) @ Id, Vgs:-
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):-
Input Capacitance (Ciss) (Max) @ Vds:-
FET Feature:-
Power Dissipation (Max):-
Operating Temperature:-
Mounting Type:-
Supplier Device Package:-
Package / Case:-
0 Remaining View Similar

In Stock

-
400

Please send RFQ , we will respond immediately.
