Product Introduction

Overview

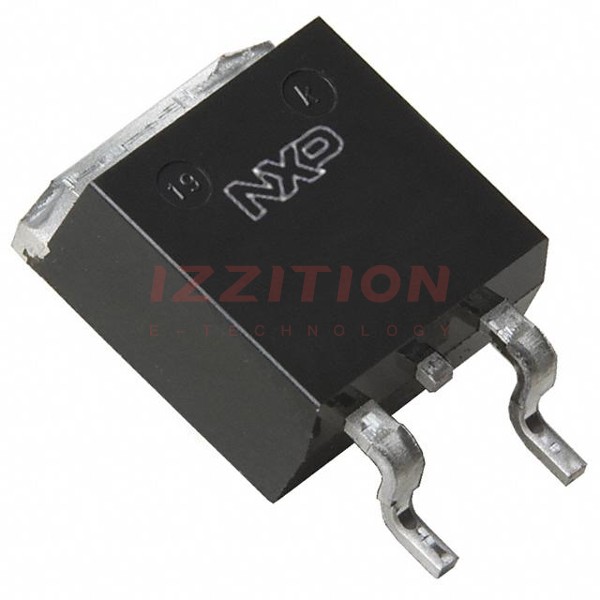

The PSMN4R8-100BSEJ is a standard level N-channel MOSFET produced by Nexperia USA Inc. This component is part of Nexperia's 'NextPower Live' portfolio and is packaged in a D2PAK (SOT404) package, qualified to operate up to 175 °C. It is designed to complement the latest 'hot-swap' controllers, making it robust enough to withstand substantial inrush currents during turn-on while maintaining low conduction losses due to its very low RDS(on) characteristic. This MOSFET is particularly suitable for telecommunication systems based on a 48 V backplane or supply rail.

Key Specifications

Parameter Description
Type Number PSMN4R8-100BSEJ
Package D2PAK (SOT404)
Channel Type N-channel
VDS [max] 100 V
RDS(on) [max] @ VGS = 10 V 4.8 mΩ
Tj [max] 175 °C
ID [max] 120 A
Ptot [max] 405 W
QGD [typ] 59 nC
QG(tot) [typ] @ VGS = 10 V 196 nC
VGSth [typ] 3 V
RoHS Status Lead Free / RoHS Compliant

Key Features

  • Enhanced forward biased safe operating area for superior linear mode operation
  • Very low RDS(on) for low conduction losses
  • Robust enough to withstand substantial inrush currents during turn-on
  • Ideal for hot-swap, load switch, and soft start applications

Applications

  • Electronic fuse
  • Hot swap
  • Load switch
  • Soft start
  • Telecommunication systems based on a 48 V backplane or supply rail

Q & A

  1. What is the maximum drain-source voltage (VDS) of the PSMN4R8-100BSEJ MOSFET?

    The maximum drain-source voltage (VDS) is 100 V.

  2. What is the package type of the PSMN4R8-100BSEJ MOSFET?

    The package type is D2PAK (SOT404).

  3. What is the maximum drain current (ID) of the PSMN4R8-100BSEJ MOSFET?

    The maximum drain current (ID) is 120 A.

  4. What is the typical threshold voltage (VGSth) of the PSMN4R8-100BSEJ MOSFET?

    The typical threshold voltage (VGSth) is 3 V.

  5. Is the PSMN4R8-100BSEJ MOSFET RoHS compliant?
  6. What are some common applications of the PSMN4R8-100BSEJ MOSFET?
  7. What is the maximum junction temperature (Tj) of the PSMN4R8-100BSEJ MOSFET?

    The maximum junction temperature (Tj) is 175 °C.

  8. What is the typical gate-drain charge (QGD) of the PSMN4R8-100BSEJ MOSFET?

    The typical gate-drain charge (QGD) is 59 nC.

  9. What is the maximum total power dissipation (Ptot) of the PSMN4R8-100BSEJ MOSFET?

    The maximum total power dissipation (Ptot) is 405 W.

  10. How does the PSMN4R8-100BSEJ MOSFET handle inrush currents during turn-on?

    The PSMN4R8-100BSEJ MOSFET is robust enough to withstand substantial inrush currents during turn-on.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:120A (Tj)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:4.8mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:278 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:14400 pF @ 50 V
FET Feature:-
Power Dissipation (Max):405W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D2PAK
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
