PSMN4R5-40PS,127
  • Share:

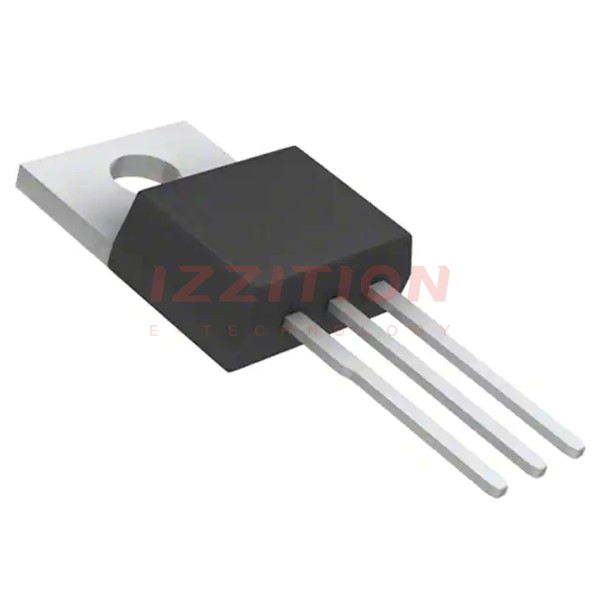

Nexperia USA Inc. PSMN4R5-40PS,127

Manufacturer No:
PSMN4R5-40PS,127
Manufacturer:
Nexperia USA Inc.
Package:
Tube
Description:
MOSFET N-CH 40V 100A TO220AB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PSMN4R5-40PS,127 is an N-Channel MOSFET produced by Nexperia USA Inc. This component is part of the PSMN series, known for its high efficiency and reliability. It is packaged in a TO-220AB through-hole configuration, making it suitable for a variety of applications requiring high current handling and low power losses.

Key Specifications

ParameterValue
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Maximum Continuous Drain Current100 A
Maximum Drain Source Resistance4.6 mΩ
Package TypeTO-220AB
Mounting TypeThrough Hole
Pin Count3
Operating TemperatureQualified to 175°C

Key Features

  • High efficiency due to low switching and conduction losses.
  • High current handling capability of up to 100 A.
  • Low on-state resistance of 4.6 mΩ.
  • Qualified to operate at temperatures up to 175°C.
  • TO-220AB package for through-hole mounting.

Applications

The PSMN4R5-40PS,127 MOSFET is designed for use in a wide range of industrial, communications, and domestic equipment. It is particularly suitable for applications requiring high current handling, low power losses, and high reliability.

Q & A

  1. What is the maximum drain to source voltage of the PSMN4R5-40PS,127 MOSFET?
    The maximum drain to source voltage is 40 V.
  2. What is the maximum continuous drain current of this MOSFET?
    The maximum continuous drain current is 100 A.
  3. What is the package type of the PSMN4R5-40PS,127?
    The package type is TO-220AB.
  4. What is the mounting type of this component?
    The mounting type is through-hole.
  5. What is the maximum on-state resistance of this MOSFET?
    The maximum on-state resistance is 4.6 mΩ.
  6. What is the operating temperature range for this MOSFET?
    It is qualified to operate at temperatures up to 175°C.
  7. What are the key applications for the PSMN4R5-40PS,127?
    It is suitable for industrial, communications, and domestic equipment.
  8. Why is this MOSFET considered efficient?
    It is considered efficient due to its low switching and conduction losses.
  9. How many pins does the PSMN4R5-40PS,127 have?
    It has 3 pins.
  10. Who is the manufacturer of the PSMN4R5-40PS,127?
    The manufacturer is Nexperia USA Inc.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:4.6mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:42.3 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2683 pF @ 12 V
FET Feature:-
Power Dissipation (Max):148W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220AB
Package / Case:TO-220-3
0 Remaining View Similar

In Stock

$2.09
422

Please send RFQ , we will respond immediately.
