BUK9230-100B,118
  • Share:

Nexperia USA Inc. BUK9230-100B,118

Manufacturer No:
BUK9230-100B,118
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 47A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

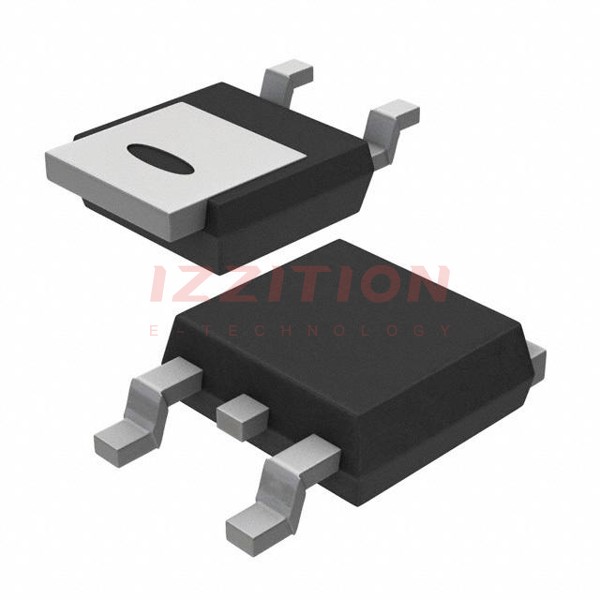

The BUK9230-100B is a logic level N-channel enhancement mode Field-Effect Transistor (FET) produced by Nexperia USA Inc. This device utilizes TrenchMOS technology and is packaged in a DPAK (SOT428) package. It has been designed and qualified to the AEC Q101 standard, making it suitable for automotive critical applications. The BUK9230-100B is known for its low conduction losses and high thermal rating, making it a reliable choice for various power switching applications.

Key Specifications

ParameterValue
Type numberBUK9230-100B
PackageDPAK (SOT428)
Channel typeN-channel
Number of transistors1
VDS [max] (V)100
RDSon [max] @ VGS = 10 V (mΩ)28
RDSon [max] @ VGS = 5 V (mΩ)30
RDSon [max] @ VGS = 4.5 V; @25 °C (mΩ)33
Tj [max] (°C)185
ID [max] (A)47
QGD [typ] (nC)13
Ptot [max] (W)167
Qr [typ] (nC)196
VGSth [typ] (V)1.5
Automotive qualifiedYes
Ciss [typ] (pF)2854
Coss [typ] (pF)232

Key Features

  • AEC Q101 compliant, ensuring suitability for automotive critical applications.
  • Low conduction losses due to low on-state resistance.
  • Suitable for logic level gate drive sources.
  • Suitable for thermally demanding environments with a maximum junction temperature of 185 °C.

Applications

  • 12 V, 24 V, and 42 V loads.
  • Automotive systems.
  • General purpose power switching.
  • Motors, lamps, and solenoids.

Q & A

  1. What is the BUK9230-100B? The BUK9230-100B is a logic level N-channel enhancement mode Field-Effect Transistor (FET) produced by Nexperia USA Inc.
  2. What package type does the BUK9230-100B use? The BUK9230-100B is packaged in a DPAK (SOT428) package.
  3. What is the maximum drain-source voltage (VDS) of the BUK9230-100B? The maximum drain-source voltage (VDS) is 100 V.
  4. What is the maximum on-state resistance (RDSon) at VGS = 10 V? The maximum on-state resistance (RDSon) at VGS = 10 V is 28 mΩ.
  5. What is the maximum junction temperature (Tj) of the BUK9230-100B? The maximum junction temperature (Tj) is 185 °C.
  6. Is the BUK9230-100B automotive qualified? Yes, the BUK9230-100B is AEC Q101 compliant and suitable for automotive critical applications.
  7. What are the typical applications of the BUK9230-100B? Typical applications include 12 V, 24 V, and 42 V loads, automotive systems, general purpose power switching, and motors, lamps, and solenoids.
  8. What is the maximum continuous drain current (ID) of the BUK9230-100B? The maximum continuous drain current (ID) is 47 A.
  9. What is the status of the BUK9230-100B? The BUK9230-100B is obsolete and no longer manufactured.
  10. Where can I find detailed documentation for the BUK9230-100B? Detailed documentation, including datasheets and application notes, can be found on the Nexperia website or through local Nexperia sales offices.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:47A (Tc)
Drive Voltage (Max Rds On, Min Rds On):5V, 10V
Rds On (Max) @ Id, Vgs:28mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:33 nC @ 5 V
Vgs (Max):±15V
Input Capacitance (Ciss) (Max) @ Vds:3805 pF @ 25 V
FET Feature:-
Power Dissipation (Max):167W (Tc)
Operating Temperature:-55°C ~ 185°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
