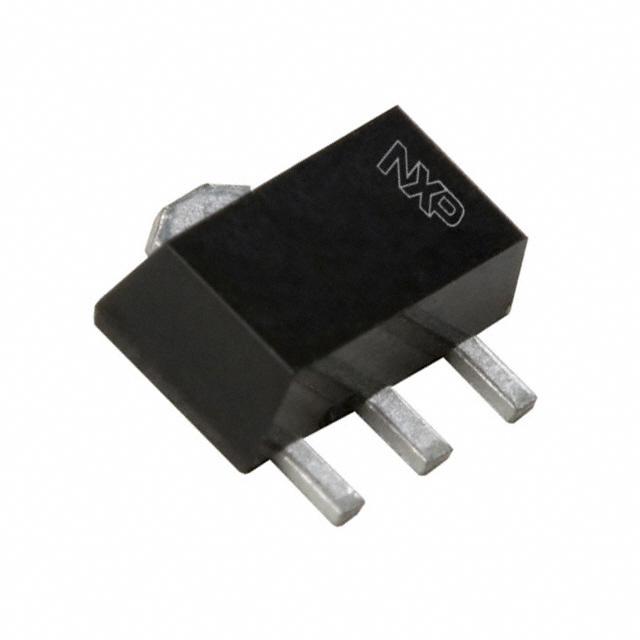

Nexperia USA Inc. BCV49,135

Manufacturer No:
BCV49,135
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN DARL 60V 0.5A SOT89
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BCV49,135 is a bipolar junction transistor (BJT) manufactured by Nexperia USA Inc. It is a Darlington transistor with an NPN configuration, designed for a variety of applications requiring high current gain and reliability. This transistor is packaged in a surface mount SOT-89 format, making it suitable for modern electronic designs where space efficiency is crucial.

Key Specifications

ParameterValue
Transistor TypeNPN Darlington
Package TypeSOT-89
Collector-Emitter Voltage (Vce)60 V
Collector Current (Ic)500 mA
Transition Frequency (ft)220 MHz
Power Dissipation (Pd)1.3 W
Mounting TypeSurface Mount

Key Features

  • High Current Gain: The Darlington configuration provides a high current gain, making it suitable for applications requiring significant amplification.
  • High Collector-Emitter Voltage: With a Vce of 60 V, this transistor can handle high voltage applications.
  • High Transition Frequency: A transition frequency of 220 MHz makes it suitable for high-frequency applications.
  • Compact Packaging: The SOT-89 package is compact and ideal for space-constrained designs.

Applications

  • Power Amplifiers: Suitable for use in power amplifier circuits due to its high current gain and voltage handling capabilities.
  • Switching Circuits: Can be used in switching applications where high speed and reliability are required.
  • Automotive Electronics: Applicable in automotive systems due to its robustness and ability to handle high voltages.
  • Industrial Control Systems: Used in various industrial control systems where high reliability and performance are necessary.

Q & A

  1. What is the transistor type of the BCV49,135?
    The BCV49,135 is an NPN Darlington transistor.
  2. What is the collector-emitter voltage (Vce) of the BCV49,135?
    The collector-emitter voltage (Vce) is 60 V.
  3. What is the maximum collector current (Ic) of the BCV49,135?
    The maximum collector current (Ic) is 500 mA.
  4. What is the transition frequency (ft) of the BCV49,135?
    The transition frequency (ft) is 220 MHz.
  5. What is the power dissipation (Pd) of the BCV49,135?
    The power dissipation (Pd) is 1.3 W.
  6. What is the package type of the BCV49,135?
    The package type is SOT-89.
  7. Is the BCV49,135 suitable for high-frequency applications?
    Yes, it is suitable for high-frequency applications due to its high transition frequency.
  8. Can the BCV49,135 be used in automotive electronics?
    Yes, it can be used in automotive electronics due to its robustness and high voltage handling capabilities.
  9. What are some common applications of the BCV49,135?
    Common applications include power amplifiers, switching circuits, automotive electronics, and industrial control systems.
  10. Where can I purchase the BCV49,135?
    You can purchase the BCV49,135 from distributors such as Digi-Key, Mouser Electronics, and other authorized suppliers.

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):60 V
Vce Saturation (Max) @ Ib, Ic:1V @ 100µA, 100mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:10000 @ 100mA, 5V
Power - Max:1.3 W
Frequency - Transition:220MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89
0 Remaining View Similar

In Stock

$0.51
115

Please send RFQ , we will respond immediately.

Same Series
BCV49,135
BCV49,135
TRANS NPN DARL 60V 0.5A SOT89
BCV29,115
BCV29,115
TRANS NPN DARL 30V 0.5A SOT89

Similar Products

Part Number BCV49,135 BCV49,115
Manufacturer Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active
Transistor Type NPN - Darlington NPN - Darlington
Current - Collector (Ic) (Max) 500 mA 500 mA
Voltage - Collector Emitter Breakdown (Max) 60 V 60 V
Vce Saturation (Max) @ Ib, Ic 1V @ 100µA, 100mA 1V @ 100µA, 100mA
Current - Collector Cutoff (Max) 100nA (ICBO) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 10000 @ 100mA, 5V 10000 @ 100mA, 5V
Power - Max 1.3 W 1.3 W
Frequency - Transition 220MHz 220MHz
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Package / Case TO-243AA TO-243AA
Supplier Device Package SOT-89 SOT-89
