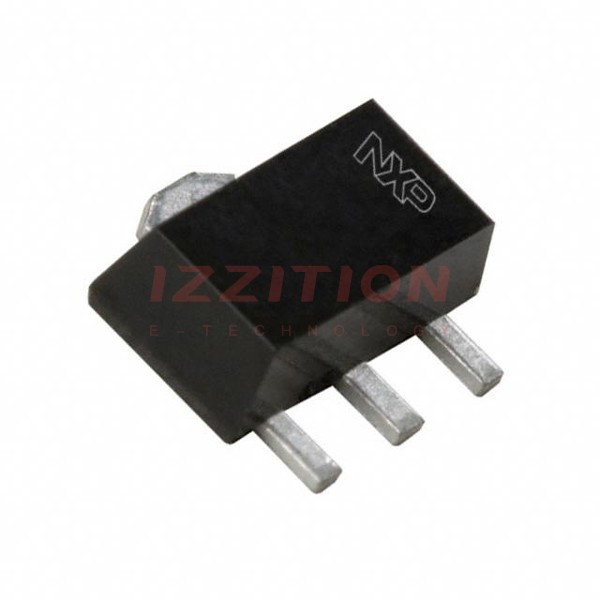

Nexperia USA Inc. BCV49,115

Manufacturer No:
BCV49,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN DARL 60V 0.5A SOT89
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BCV49,115 is an NPN small-signal Darlington transistor manufactured by Nexperia USA Inc. It is packaged in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package. This transistor is designed for high current and low voltage applications, making it suitable for a variety of electronic circuits. The BCV49 is the NPN complement to the BCV48 PNP Darlington transistor.

Key Specifications

Parameter Value Unit
Type NPN Darlington Transistor
Package SOT89 (SC-62)
Maximum Collector Current (Ic) 500 mA
Maximum Collector-Emitter Voltage (Vceo) 60 V
Transition Frequency (fT) 220 MHz
DC Current Gain (hFE) 10000 (min)
Total Power Dissipation (Ptot) 1300 mW
PNP Complement BCV48
Automotive Qualified No

Key Features

  • High current capability up to 500 mA
  • Low voltage operation up to 60 V
  • High DC current gain (min. 10000)
  • High transition frequency (min. 220 MHz)
  • Suitable for preamplifier input applications and general-purpose amplification and switching functions
  • Surface-mount device (SMD) in SOT89 package, ideal for high-density PCBs
  • RoHS compliant and meets international semiconductor standards
  • Energy efficient and constructed for continuous usage

Applications

  • Consumer electronics
  • Telecommunication circuits
  • Power management systems
  • Automotive and industrial applications
  • General-purpose amplification and switching circuits

Q & A

  1. What is the BCV49,115 transistor?

    The BCV49,115 is an NPN small-signal Darlington transistor in a SOT89 package.

  2. What is the maximum collector current of the BCV49,115?

    The maximum collector current is 500 mA.

  3. What is the maximum collector-emitter voltage of the BCV49,115?

    The maximum collector-emitter voltage is 60 V.

  4. What is the transition frequency of the BCV49,115?

    The transition frequency is at least 220 MHz.

  5. Is the BCV49,115 RoHS compliant?
  6. What is the PNP complement of the BCV49,115?

    The PNP complement is the BCV48.

  7. What are the typical applications of the BCV49,115?

    Typical applications include consumer electronics, telecommunication circuits, power management systems, and general-purpose amplification and switching circuits.

  8. Is the BCV49,115 suitable for high-density PCBs?
  9. What is the total power dissipation of the BCV49,115?

    The total power dissipation is 1300 mW.

  10. Is the BCV49,115 automotive qualified?

    No, the BCV49,115 is not automotive qualified.

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):60 V
Vce Saturation (Max) @ Ib, Ic:1V @ 100µA, 100mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:10000 @ 100mA, 5V
Power - Max:1.3 W
Frequency - Transition:220MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89
0 Remaining View Similar

In Stock

$0.51
701

Please send RFQ , we will respond immediately.

Same Series
BCV49,135
BCV49,135
TRANS NPN DARL 60V 0.5A SOT89
BCV29,115
BCV29,115
TRANS NPN DARL 30V 0.5A SOT89

Similar Products

Part Number BCV49,115 BCV49,135 BCV29,115 BCV48,115
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active Active
Transistor Type NPN - Darlington NPN - Darlington NPN - Darlington PNP - Darlington
Current - Collector (Ic) (Max) 500 mA 500 mA 500 mA 500 mA
Voltage - Collector Emitter Breakdown (Max) 60 V 60 V 30 V 60 V
Vce Saturation (Max) @ Ib, Ic 1V @ 100µA, 100mA 1V @ 100µA, 100mA 1V @ 100µA, 100mA 1V @ 100µA, 100mA
Current - Collector Cutoff (Max) 100nA (ICBO) 100nA (ICBO) 100nA (ICBO) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 10000 @ 100mA, 5V 10000 @ 100mA, 5V 20000 @ 100mA, 5V 10000 @ 100mA, 5V
Power - Max 1.3 W 1.3 W 1.3 W 1.3 W
Frequency - Transition 220MHz 220MHz 220MHz 220MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case TO-243AA TO-243AA TO-243AA TO-243AA
Supplier Device Package SOT-89 SOT-89 SOT-89 SOT-89
