BC847AQBZ
  • Share:

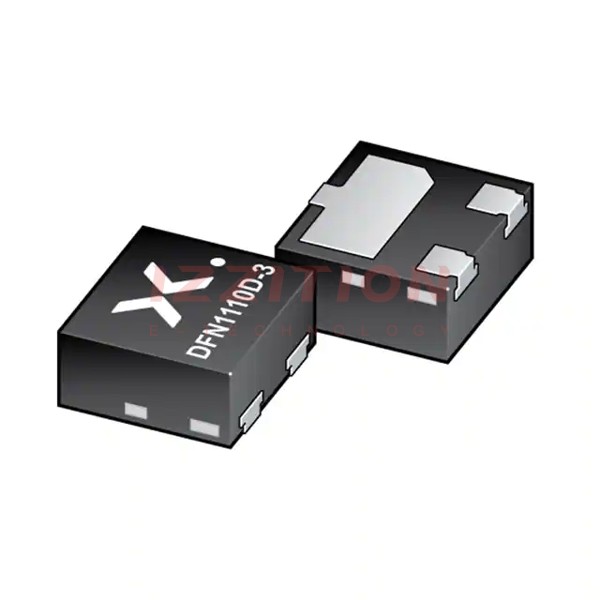

Nexperia USA Inc. BC847AQBZ

Manufacturer No:
BC847AQBZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 45V 0.1A DFN1110D-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC847AQBZ is a bipolar junction transistor (BJT) produced by Nexperia USA Inc. This NPN transistor is designed for general-purpose applications and is known for its reliability and performance in a variety of electronic circuits. The BC847AQBZ is part of the BC847 series, which is widely used in electronic designs due to its robust specifications and versatility.

Key Specifications

ParameterValue
TypeNPN Bipolar Junction Transistor (BJT)
Maximum Collector-Emitter Voltage (Vce)45 V
Maximum Collector Current (Ic)100 mA
Maximum Power Dissipation (Ptot)340 mW
Transition Frequency (ft)100 MHz
Package TypeSurface Mount, Wettable Flank DFN1110D-3
Operating Temperature Range-55°C to 150°C

Key Features

  • High current gain (beta) for reliable switching and amplification.
  • Low noise and high frequency performance, making it suitable for a wide range of applications.
  • Compact surface mount package (DFN1110D-3) for space-saving designs.
  • Wettable flanks for improved solderability and inspection.
  • AEC-Q101 qualified for automotive applications, ensuring high reliability and robustness.

Applications

  • General-purpose switching and amplification in electronic circuits.
  • Automotive electronics, including sensors, actuators, and control systems.
  • Consumer electronics such as audio amplifiers, power supplies, and control circuits.
  • Industrial control systems, including motor control and power management.
  • Medical devices requiring reliable and precise electronic control.

Q & A

  1. What is the maximum collector-emitter voltage of the BC847AQBZ transistor?
    The maximum collector-emitter voltage (Vce) is 45 V.
  2. What is the maximum collector current of the BC847AQBZ transistor?
    The maximum collector current (Ic) is 100 mA.
  3. What is the package type of the BC847AQBZ transistor?
    The package type is Surface Mount, Wettable Flank DFN1110D-3.
  4. What is the operating temperature range of the BC847AQBZ transistor?
    The operating temperature range is -55°C to 150°C.
  5. Is the BC847AQBZ transistor AEC-Q101 qualified?
    Yes, it is AEC-Q101 qualified for automotive applications.
  6. What is the transition frequency (ft) of the BC847AQBZ transistor?
    The transition frequency (ft) is 100 MHz.
  7. What are some common applications of the BC847AQBZ transistor?
    General-purpose switching and amplification, automotive electronics, consumer electronics, industrial control systems, and medical devices.
  8. Why is the wettable flank package important?
    The wettable flank package improves solderability and inspection during the manufacturing process.
  9. Can the BC847AQBZ be used in high-frequency applications?
    Yes, it is suitable for high-frequency applications due to its high transition frequency.
  10. Where can I purchase the BC847AQBZ transistor?
    You can purchase it from various distributors such as Digi-Key, Mouser Electronics, and Arrow Electronics.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:400mV @ 5mA, 100mA
Current - Collector Cutoff (Max):15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:110 @ 2mA, 5V
Power - Max:340 mW
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1110D-3
0 Remaining View Similar

In Stock

$0.24
2,036

Please send RFQ , we will respond immediately.

Same Series
DD15S20LV5X
DD15S20LV5X
CONN D-SUB HD RCPT 15P SLDR CUP
RD15S10H00/AA
RD15S10H00/AA
CONN D-SUB RCPT 15POS CRIMP
DD26M20JV5Z
DD26M20JV5Z
CONN D-SUB HD PLUG 26P SLDR CUP
CBC13W3S10H00/AA
CBC13W3S10H00/AA
CONN D-SUB RCPT 13POS CRIMP
CBC47W1S10000
CBC47W1S10000
CONN D-SUB RCPT 47POS CRIMP
DD15S20WV5S/AA
DD15S20WV5S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S2S00X/AA
DD26S2S00X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S10HT0/AA
DD26S10HT0/AA
CONN D-SUB HD RCPT 26POS CRIMP
M24308/24-67Z
M24308/24-67Z
CONN D-SUB HD PLUG 15POS SLDR
DD44S3200T2X
DD44S3200T2X
CONN D-SUB HD RCPT 44P VERT SLDR
DD26S20WTX
DD26S20WTX
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S20WE20/AA
DD26S20WE20/AA
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number BC847AQBZ BC847BQBZ BC847AQCZ BC847AQAZ
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Obsolete Active
Transistor Type NPN NPN - NPN
Current - Collector (Ic) (Max) 100 mA 100 mA 100 mA 100 mA
Voltage - Collector Emitter Breakdown (Max) 45 V 45 V 45 V 45 V
Vce Saturation (Max) @ Ib, Ic 400mV @ 5mA, 100mA 400mV @ 5mA, 100mA 400mV @ 5mA, 100mA 400mV @ 5mA, 100mA
Current - Collector Cutoff (Max) 15nA (ICBO) 15nA (ICBO) 15nA (ICBO) 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 110 @ 2mA, 5V 200 @ 2mA, 5V 110 @ 2mA, 5V 110 @ 2mA, 5V
Power - Max 340 mW 340 mW 360 mW 280 mW
Frequency - Transition 100MHz 100MHz 100MHz 100MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount, Wettable Flank Surface Mount, Wettable Flank Surface Mount, Wettable Flank Surface Mount
Package / Case 3-XDFN Exposed Pad 3-XDFN Exposed Pad 3-XDFN Exposed Pad 3-XDFN Exposed Pad
Supplier Device Package DFN1110D-3 DFN1110D-3 DFN1412D-3 DFN1010D-3
