BC846AQC-QZ
  • Share:

Nexperia USA Inc. BC846AQC-QZ

Manufacturer No:
BC846AQC-QZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:

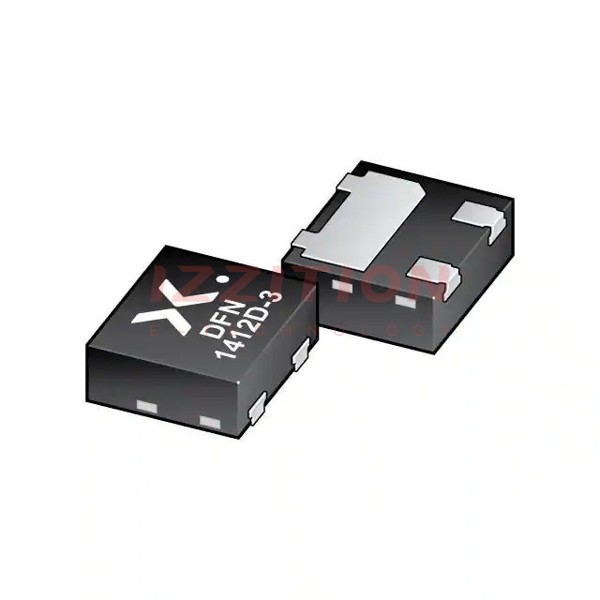

TRANS NPN 65V 0.1A DFN1412D-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC846AQC-QZ is a high-performance NPN general-purpose transistor manufactured by Nexperia USA Inc. This transistor is part of Nexperia's extensive portfolio of bipolar transistors, known for their reliability and efficiency in various electronic applications. The BC846AQC-QZ is designed to meet the demands of modern electronics, offering a balance of current handling, voltage tolerance, and compact packaging.

Key Specifications

SpecificationValue
Transistor TypeNPN
Maximum DC Collector Current100 mA
Maximum Collector Emitter Voltage65 V
Package TypeSOT8009

Key Features

  • High Current Capability: The BC846AQC-QZ can handle a maximum DC collector current of 100 mA, making it suitable for a variety of applications requiring moderate current levels.
  • High Voltage Tolerance: With a maximum collector-emitter voltage of 65 V, this transistor offers robust performance in high-voltage environments.
  • Compact Packaging: The SOT8009 package ensures a small footprint, ideal for space-constrained designs.
  • General-Purpose Use: Designed for general-purpose applications, this transistor is versatile and can be used in a wide range of electronic circuits.

Applications

The BC846AQC-QZ is suitable for various applications across different industries, including:

  • Automotive Electronics: Used in automotive systems for signal amplification and switching.
  • Industrial Electronics: Employed in industrial control systems, motor drives, and power supplies.
  • Consumer Electronics: Found in consumer devices such as audio amplifiers, power supplies, and other general-purpose electronic circuits.
  • IoT and Embedded Systems: Used in Internet of Things (IoT) devices and embedded systems where compact, reliable components are essential.

Q & A

  1. What is the maximum DC collector current of the BC846AQC-QZ transistor?
    The maximum DC collector current is 100 mA.
  2. What is the maximum collector-emitter voltage of the BC846AQC-QZ transistor?
    The maximum collector-emitter voltage is 65 V.
  3. What package type does the BC846AQC-QZ transistor use?
    The package type is SOT8009.
  4. What are some common applications of the BC846AQC-QZ transistor?
    It is used in automotive, industrial, consumer electronics, and IoT/embedded systems.
  5. Who is the manufacturer of the BC846AQC-QZ transistor?
    The manufacturer is Nexperia USA Inc.
  6. What type of transistor is the BC846AQC-QZ?
    It is an NPN general-purpose transistor.
  7. Where can I purchase the BC846AQC-QZ transistor?
    You can purchase it from authorized distributors such as Mouser, Digi-Key, and Arrow Electronics.
  8. What are the benefits of using the BC846AQC-QZ transistor in my design?
    The benefits include high current capability, high voltage tolerance, and compact packaging.
  9. Is the BC846AQC-QZ transistor suitable for high-temperature applications?
    While it is robust, always refer to the datasheet for specific temperature ratings and limitations.
  10. Can I use the BC846AQC-QZ transistor in switching applications?
    Yes, it can be used in switching applications due to its general-purpose design and suitable electrical characteristics.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):65 V
Vce Saturation (Max) @ Ib, Ic:400mV @ 5mA, 100mA
Current - Collector Cutoff (Max):15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:110 @ 2mA, 5V
Power - Max:360 mW
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1412D-3
0 Remaining View Similar

In Stock

$0.28
626

Please send RFQ , we will respond immediately.
