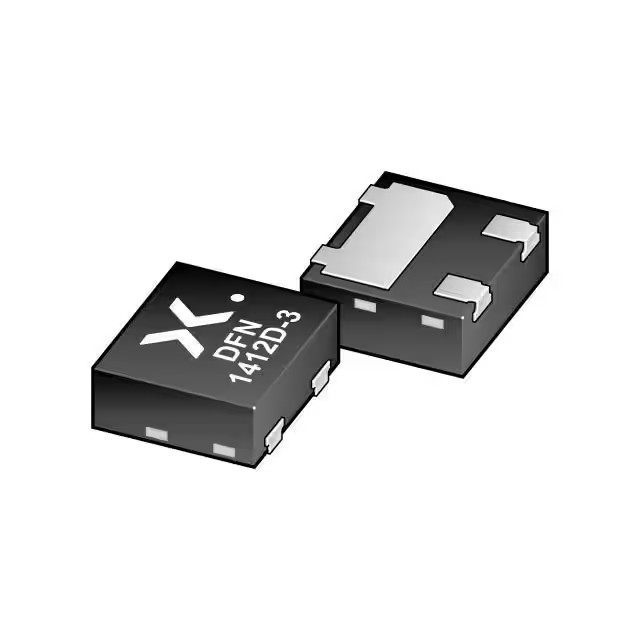

Nexperia USA Inc. BC807-25QCH-QZ

Manufacturer No:
BC807-25QCH-QZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS PNP 45V 0.5A DFN1412D-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC807-25QCH-QZ is a PNP general-purpose bipolar transistor manufactured by Nexperia USA Inc. This transistor is part of the BC807QCH-Q series, which is specifically designed for automotive applications and is qualified according to AEC-Q101 standards. It features a small DFN1412D-3 (SOT8009) package, making it suitable for space-constrained designs. The transistor is known for its high reliability and robust performance, making it a versatile component for various electronic systems.

Key Specifications

Type numberPackage versionPackage nameSize (mm)T J [max] (°C)Vceo (V)Ic (mA)fT (MHz)Ptot (mW)
BC807-25QCH-QSOT8009DFN1412D-31.4 x 1.2 x 0.481754550080455

Key Features

  • Automotive Qualified: Compliant with AEC-Q101 standards, ensuring high reliability and performance in automotive applications.
  • Compact Package: DFN1412D-3 (SOT8009) package, which is small and leadless, ideal for space-constrained designs.
  • High Current Capability: Supports up to 500 mA collector current.
  • High Frequency Operation: With a transition frequency (fT) of 80 MHz, suitable for high-frequency applications.
  • RoHS Compliant: Meets RoHS and RHF-indicator standards, ensuring environmental sustainability.

Applications

The BC807-25QCH-QZ transistor is widely used in various applications, including:

  • Automotive Systems: Suitable for use in automotive electronics due to its AEC-Q101 qualification.
  • General-Purpose Switching and Amplification: Can be used in switching and amplification circuits in industrial, consumer, and mobile devices.
  • Power Management: Useful in power management circuits where high current and frequency stability are required.

Q & A

  1. What is the maximum collector current of the BC807-25QCH-QZ transistor?
    The maximum collector current is 500 mA.
  2. What is the package type of the BC807-25QCH-QZ transistor?
    The package type is DFN1412D-3 (SOT8009).
  3. Is the BC807-25QCH-QZ transistor RoHS compliant?
    Yes, it is RoHS compliant.
  4. What is the maximum junction temperature (T J [max]) of the BC807-25QCH-QZ transistor?
    The maximum junction temperature is 175°C.
  5. What is the transition frequency (fT) of the BC807-25QCH-QZ transistor?
    The transition frequency is 80 MHz.
  6. What are the typical applications of the BC807-25QCH-QZ transistor?
    It is used in automotive systems, general-purpose switching and amplification, and power management circuits.
  7. Is the BC807-25QCH-QZ transistor suitable for high-frequency applications?
    Yes, it is suitable for high-frequency applications due to its high transition frequency.
  8. How do I order samples of the BC807-25QCH-QZ transistor?
    Samples can be ordered through Nexperia's sales organization or through their network of global and regional distributors.
  9. What is the NPN complement of the BC807-25QCH-QZ transistor?
    The NPN complement is the BC817-25Q transistor.
  10. What is the maximum collector-emitter voltage (Vceo) of the BC807-25QCH-QZ transistor?
    The maximum collector-emitter voltage is 45 V.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:700mV @ 50mA, 500mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:160 @ 100mA, 1V
Power - Max:455 mW
Frequency - Transition:80MHz
Operating Temperature:175°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1412D-3
