Nexperia USA Inc. BC807-25QC-QZ

Manufacturer No:
BC807-25QC-QZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:

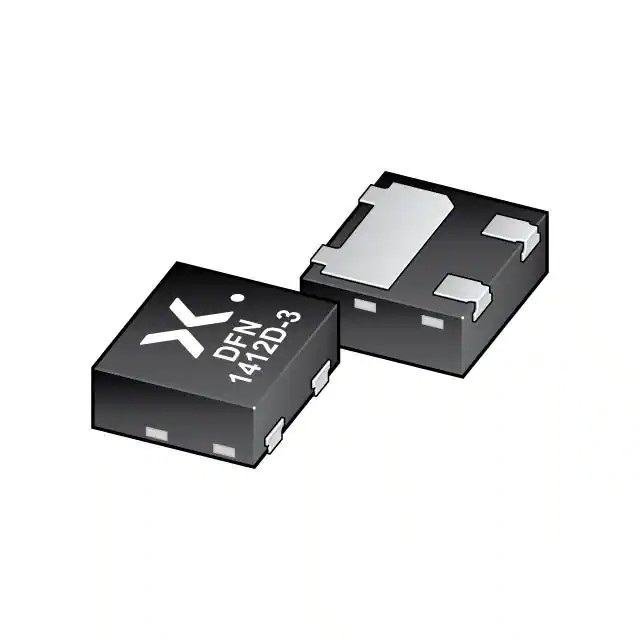

TRANS PNP 45V 0.5A DFN1412D-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The Nexperia BC807-25QC-QZ is a high-performance PNP bipolar junction transistor (BJT) designed for general-purpose applications. Manufactured by Nexperia USA Inc., this transistor is known for its reliability and efficiency in various electronic circuits. The BC807-25QC-QZ is packaged in a DFN1412D-3 surface mount package, making it suitable for modern PCB designs that require compact and efficient components.

Key Specifications

Specification Value
Brand Nexperia
Transistor Type PNP
Maximum DC Collector Current -500 mA
Maximum Collector Emitter Voltage -45 V
Package Type DFN1412D-3
Mounting Type Surface Mount
Minimum DC Current Gain 160

Key Features

  • High Current Capability: The BC807-25QC-QZ can handle a maximum DC collector current of -500 mA, making it suitable for applications requiring moderate to high current levels.
  • High Voltage Handling: With a maximum collector-emitter voltage of -45 V, this transistor is robust and can handle a wide range of voltage conditions.
  • Compact Package: The DFN1412D-3 package is compact and ideal for surface mount technology, allowing for efficient use of space on PCBs.
  • High Current Gain: The minimum DC current gain of 160 ensures reliable amplification and switching performance.

Applications

  • General-Purpose Amplification: Suitable for various amplification and switching applications in electronic circuits.
  • Automotive Electronics: Can be used in automotive systems due to its robust voltage and current handling capabilities.
  • Consumer Electronics: Ideal for use in consumer electronics such as audio equipment, power supplies, and other general-purpose electronic devices.
  • Industrial Control Systems: Used in industrial control systems where reliable and efficient transistor performance is critical.

Q & A

  1. What is the maximum DC collector current of the BC807-25QC-QZ transistor?

    The maximum DC collector current is -500 mA.

  2. What is the maximum collector-emitter voltage of the BC807-25QC-QZ transistor?

    The maximum collector-emitter voltage is -45 V.

  3. What type of package does the BC807-25QC-QZ transistor use?

    The transistor is packaged in a DFN1412D-3 surface mount package.

  4. What is the minimum DC current gain of the BC807-25QC-QZ transistor?

    The minimum DC current gain is 160.

  5. What are some common applications of the BC807-25QC-QZ transistor?

    It is used in general-purpose amplification, automotive electronics, consumer electronics, and industrial control systems.

  6. Who is the manufacturer of the BC807-25QC-QZ transistor?

    The transistor is manufactured by Nexperia USA Inc.

  7. What is the mounting type of the BC807-25QC-QZ transistor?

    The transistor is a surface mount type.

  8. Is the BC807-25QC-QZ transistor suitable for high-voltage applications?

    Yes, it can handle up to -45 V collector-emitter voltage.

  9. What is the transistor type of the BC807-25QC-QZ?

    The transistor type is PNP.

  10. Where can I find detailed specifications of the BC807-25QC-QZ transistor?

    Detailed specifications can be found on the official Nexperia website, as well as on distributor websites such as RS Components, Digi-Key, and Mouser.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:700mV @ 50mA, 500mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:160 @ 100mA, 1V
Power - Max:380 mW
Frequency - Transition:80MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1412D-3
