Vishay General Semiconductor - Diodes Division BYW29-200-E3/45

Manufacturer No:
BYW29-200-E3/45
Manufacturer:
Vishay General Semiconductor - Diodes Division
Package:
Tube
Description:

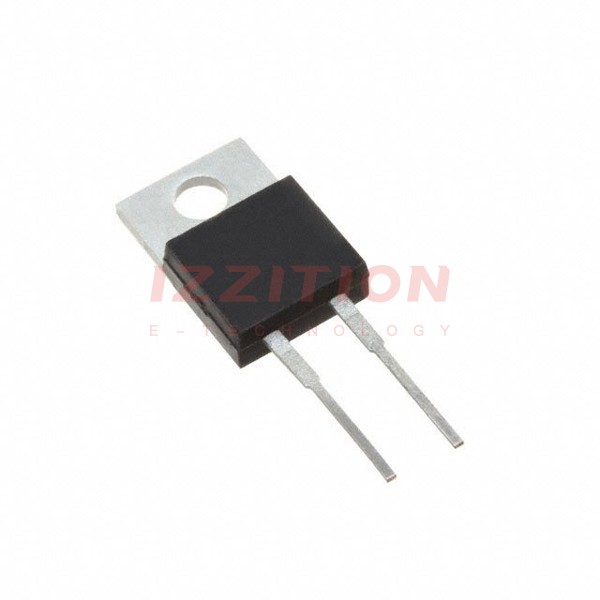

DIODE GEN PURP 200V 8A TO220AC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BYW29-200-E3/45 is a fast recovery rectifier diode produced by Vishay General Semiconductor - Diodes Division. This component is part of Vishay's extensive portfolio of discrete semiconductors, which are widely used in various electronic devices and equipment across multiple industries, including industrial, automotive, consumer, and telecommunications sectors.

Key Specifications

ParameterValue
Package / CaseTO-220AC
Vr - Reverse Voltage (Max)200 V
If - Forward Current (Average Rectified)8 A
TypeFast Recovery Rectifiers
PackagingTube
Part StatusActive
TechnologyStandard

Key Features

  • High reverse voltage of 200 V, making it suitable for high-voltage applications.
  • High average rectified current of 8 A, ensuring robust performance in power rectification.
  • Fast recovery time, which is crucial for reducing switching losses and improving overall efficiency in power circuits.
  • TO-220AC package, which is a standard and widely used package for power diodes, offering good heat dissipation and ease of mounting.

Applications

The BYW29-200-E3/45 is versatile and can be used in a variety of applications, including:

  • Power supplies and rectifier circuits.
  • Motor control and drive systems.
  • Automotive systems, such as battery charging and power management.
  • Industrial power equipment, including inverters and converters.
  • Consumer electronics requiring high-power rectification.

Q & A

  1. What is the maximum reverse voltage of the BYW29-200-E3/45?
    The maximum reverse voltage is 200 V.
  2. What is the average rectified current of the BYW29-200-E3/45?
    The average rectified current is 8 A.
  3. What type of package does the BYW29-200-E3/45 use?
    The package used is TO-220AC.
  4. What is the part status of the BYW29-200-E3/45?
    The part status is Active.
  5. What technology is used in the BYW29-200-E3/45?
    The technology used is Standard.
  6. What are the typical applications of the BYW29-200-E3/45?
    Typical applications include power supplies, motor control systems, automotive systems, industrial power equipment, and consumer electronics.
  7. Why is the fast recovery time important for this diode?
    The fast recovery time reduces switching losses and improves overall efficiency in power circuits.
  8. Is the BYW29-200-E3/45 suitable for high-voltage applications?
    Yes, it is suitable for high-voltage applications due to its 200 V reverse voltage rating.
  9. What industries can benefit from using the BYW29-200-E3/45?
    Industries such as automotive, consumer electronics, industrial, and telecommunications can benefit from using this diode.
  10. Where can I purchase the BYW29-200-E3/45?
    You can purchase the BYW29-200-E3/45 from distributors like Digi-Key, Mouser, and other authorized Vishay distributors.

Product Attributes

Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):200 V
Current - Average Rectified (Io):8A
Voltage - Forward (Vf) (Max) @ If:1.3 V @ 20 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):25 ns
Current - Reverse Leakage @ Vr:10 µA @ 200 V
Capacitance @ Vr, F:45pF @ 4V, 1MHz
Mounting Type:Through Hole
Package / Case:TO-220-2
Supplier Device Package:TO-220AC
Operating Temperature - Junction:-65°C ~ 150°C
