CSD19537Q3
  • Share:

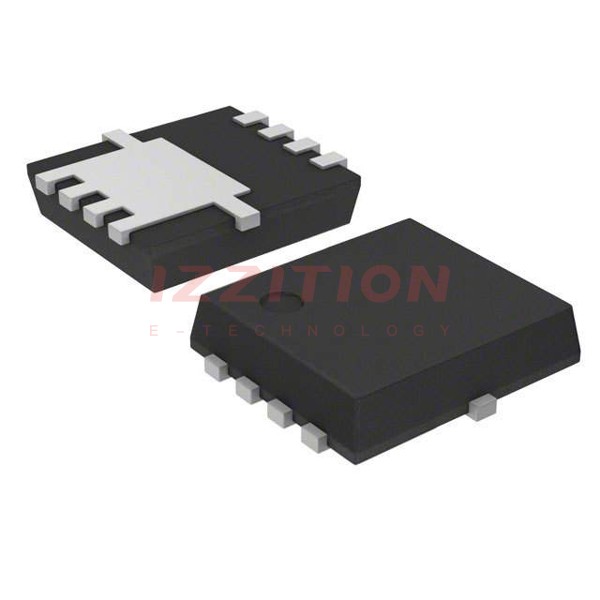

Texas Instruments CSD19537Q3

Manufacturer No:
CSD19537Q3
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 9.7A/50A 8VSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The Texas Instruments CSD19537Q3 is a high-performance N-channel NexFET™ power MOSFET designed for a variety of power management applications. This device is packaged in a compact 8-VSON-CLIP package, measuring 3 mm x 3 mm, making it ideal for space-constrained designs. The CSD19537Q3 features a low on-resistance (Rds(on)) of 14.5 mΩ, a high drain to source breakdown voltage of 100 V, and a continuous drain current (ID) of 9.7 A. These characteristics make it suitable for applications requiring high efficiency and reliability.

Key Specifications

ParameterValueUnit
Case/PackageVSON-8-EP(3.3x3.3)
Continuous Drain Current (ID)9.7A
Drain to Source Breakdown Voltage100V
Drain to Source Resistance (Rds(on))14.5mΩ
Gate to Source Voltage (Vgs)20V
Max Junction Temperature (Tj)150°C
Max Operating Temperature150°C
Max Power Dissipation2.8W
Min Operating Temperature-55°C
Number of Channels1
Number of Pins8
Rise Time3ns
Fall Time3ns
Threshold Voltage3V
RoHS ComplianceYes

Key Features

  • Low on-resistance (Rds(on)) of 14.5 mΩ for high efficiency.
  • High drain to source breakdown voltage of 100 V for robust operation.
  • Continuous drain current (ID) of 9.7 A to handle high current applications.
  • Compact VSON-8-EP(3.3x3.3) package for space-saving designs.
  • Operating temperature range from -55°C to 150°C for wide application suitability.
  • Fast switching times with rise and fall times of 3 ns each.
  • RoHS compliant for environmental sustainability.

Applications

The Texas Instruments CSD19537Q3 is versatile and can be used in a variety of applications, including:

  • Power management systems in consumer electronics.
  • Automotive systems requiring high reliability and efficiency.
  • Industrial power supplies and motor control systems.
  • Renewable energy systems such as solar and wind power.
  • High-performance computing and data center power management.

Q & A

  1. What is the package type of the CSD19537Q3? The CSD19537Q3 is packaged in a VSON-8-EP(3.3x3.3) package.
  2. What is the maximum drain to source breakdown voltage of the CSD19537Q3? The maximum drain to source breakdown voltage is 100 V.
  3. What is the continuous drain current (ID) of the CSD19537Q3? The continuous drain current (ID) is 9.7 A.
  4. What is the on-resistance (Rds(on)) of the CSD19537Q3? The on-resistance (Rds(on)) is 14.5 mΩ.
  5. Is the CSD19537Q3 RoHS compliant? Yes, the CSD19537Q3 is RoHS compliant.
  6. What is the operating temperature range of the CSD19537Q3? The operating temperature range is from -55°C to 150°C.
  7. What are the rise and fall times of the CSD19537Q3? The rise and fall times are both 3 ns.
  8. What is the maximum power dissipation of the CSD19537Q3? The maximum power dissipation is 2.8 W.
  9. What are some typical applications of the CSD19537Q3? Typical applications include power management in consumer electronics, automotive systems, industrial power supplies, renewable energy systems, and high-performance computing.
  10. Where can I find the datasheet for the CSD19537Q3? The datasheet can be found on the official Texas Instruments website or through distributors like Fusion Worldwide, JLCPCB, and LCSC.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:50A (Ta)
Drive Voltage (Max Rds On, Min Rds On):6V, 10V
Rds On (Max) @ Id, Vgs:14.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:3.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:21 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1680 pF @ 50 V
FET Feature:-
Power Dissipation (Max):2.8W (Ta), 83W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-VSON (3.3x3.3)
Package / Case:8-PowerVDFN
0 Remaining View Similar

In Stock

$1.45
149

Please send RFQ , we will respond immediately.

Same Series
DD15S2S5WV30/AA
DD15S2S5WV30/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S200V3S/AA
DD15S200V3S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S10LVLS
DD15S10LVLS
CONN D-SUB HD RCPT 15POS CRIMP
CBC13W3S10H00/AA
CBC13W3S10H00/AA
CONN D-SUB RCPT 13POS CRIMP
DD26S200E3X
DD26S200E3X
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50T0/AA
DD26S2S50T0/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD15S20JVLS/AA
DD15S20JVLS/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD44S32S600X/AA
DD44S32S600X/AA
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S000
DD44S32S000
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S60V3X/AA
DD44S32S60V3X/AA
CONN D-SUB HD RCPT 44P VERT SLDR
DD26S20WE2X/AA
DD26S20WE2X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S20J0X
DD26S20J0X
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number CSD19537Q3 CSD19537Q3T
Manufacturer Texas Instruments Texas Instruments
Product Status Active Active
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V 100 V
Current - Continuous Drain (Id) @ 25°C 50A (Ta) 50A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V 6V, 10V
Rds On (Max) @ Id, Vgs 14.5mOhm @ 10A, 10V 14.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id 3.6V @ 250µA 3.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 21 nC @ 10 V 21 nC @ 10 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 1680 pF @ 50 V 1680 pF @ 50 V
FET Feature - -
Power Dissipation (Max) 2.8W (Ta), 83W (Tc) 2.8W (Ta), 83W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package 8-VSON (3.3x3.3) 8-VSON (3.3x3.3)
Package / Case 8-PowerVDFN 8-PowerVDFN
