MD1803DFX
  • Share:

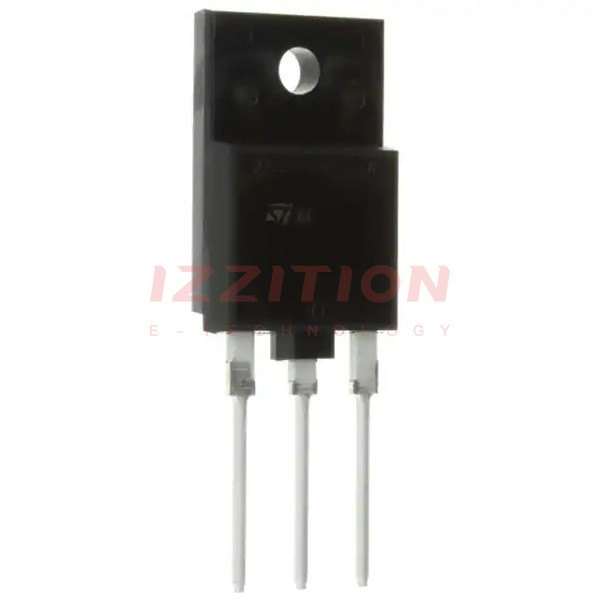

STMicroelectronics MD1803DFX

Manufacturer No:
MD1803DFX
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
TRANS NPN 700V 10A TO3PF
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MD1803DFX is a high-voltage NPN power transistor manufactured by STMicroelectronics. It is produced using Diffused Collector in Planar Technology, which adopts a new and enhanced high voltage structure. This technology ensures improved silicon efficiency and updated performance, particularly in the Horizontal Deflection stage of standard definition CRT displays. The transistor is designed to provide stable performance across varying operating temperatures and features a low base drive requirement, tighter hFE range at operating collector current, and an integrated free-wheeling diode.

Key Specifications

ParameterValueUnit
Collector-emitter voltage (VBE = 0)1500V
Collector-emitter voltage (IB = 0)700V
Emitter-base voltage (IC = 0)10V
Collector current10A
Collector peak current (tP < 5ms)15A
Base current5A
Total dissipation at Tc = 25°C57W
Insulation withstand voltage (rms) from all three leads to external heatsink2500V
Storage temperature-65 to 150°C
Max. operating junction temperature-°C
Thermal resistance junction-case2.2°C/W

Key Features

  • State-of-the-art technology using Diffused Collector in Planar Technology with enhanced high voltage structure.
  • More stable performance versus operating temperature variation.
  • Low base drive requirement.
  • Tighter hFE range at operating collector current.
  • Fully insulated power package, U.L. compliant.
  • Integrated free-wheeling diode.
  • In compliance with the 2002/93/EC European directive.
  • Lead-free second level interconnect in ECOPACK® packages.

Applications

The MD1803DFX is primarily used for horizontal deflection output in standard definition CRT displays. Its high voltage and current handling capabilities make it suitable for applications requiring robust and reliable power transistor performance.

Q & A

  1. What is the collector-emitter voltage of the MD1803DFX?
    The collector-emitter voltage (VBE = 0) is 1500 V.
  2. What is the maximum collector current of the MD1803DFX?
    The maximum collector current is 10 A.
  3. What is the thermal resistance junction-case of the MD1803DFX?
    The thermal resistance junction-case is 2.2 °C/W.
  4. Is the MD1803DFX compliant with any specific European directive?
    Yes, it is in compliance with the 2002/93/EC European directive.
  5. What type of package does the MD1803DFX use?
    The MD1803DFX uses a fully insulated power package, U.L. compliant, and is available in ECOPACK® packages.
  6. What is the primary application of the MD1803DFX?
    The primary application is for horizontal deflection output in standard definition CRT displays.
  7. Does the MD1803DFX have an integrated free-wheeling diode?
    Yes, it has an integrated free-wheeling diode.
  8. What is the maximum operating junction temperature of the MD1803DFX?
    The maximum operating junction temperature is not explicitly stated but is typically within the range of the storage temperature (-65 to 150 °C).
  9. What is the total dissipation at Tc = 25°C for the MD1803DFX?
    The total dissipation at Tc = 25°C is 57 W.
  10. Is the MD1803DFX lead-free?
    Yes, it is available in lead-free ECOPACK® packages.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):10 A
Voltage - Collector Emitter Breakdown (Max):700 V
Vce Saturation (Max) @ Ib, Ic:2V @ 1.25A, 5A
Current - Collector Cutoff (Max):200µA
DC Current Gain (hFE) (Min) @ Ic, Vce:5.5 @ 5A, 5V
Power - Max:57 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3 Full Pack
Supplier Device Package:TO-3PF
0 Remaining View Similar

In Stock

-
149

Please send RFQ , we will respond immediately.

Similar Products

Part Number MD1803DFX MD1803DFP
Manufacturer STMicroelectronics STMicroelectronics
Product Status Obsolete Obsolete
Transistor Type NPN NPN
Current - Collector (Ic) (Max) 10 A 10 A
Voltage - Collector Emitter Breakdown (Max) 700 V 700 V
Vce Saturation (Max) @ Ib, Ic 2V @ 1.25A, 5A 2V @ 1.25A, 5A
Current - Collector Cutoff (Max) 200µA 200µA
DC Current Gain (hFE) (Min) @ Ic, Vce 5.5 @ 5A, 5V 5.5 @ 5A, 5V
Power - Max 57 W 40 W
Frequency - Transition - -
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Through Hole Through Hole
Package / Case TO-3P-3 Full Pack TO-220-3 Full Pack
Supplier Device Package TO-3PF TO-220FP
