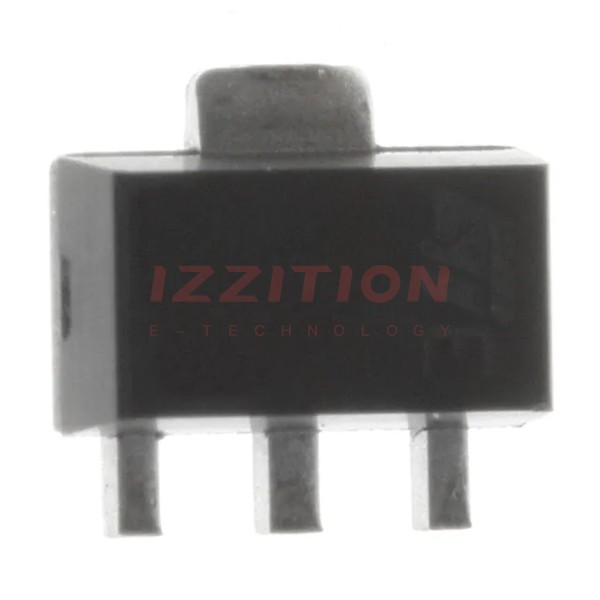

STMicroelectronics 2STF2550

Manufacturer No:
2STF2550
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
TRANS PNP 50V 5A SOT89-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2STF2550 is a high-performance PNP power transistor manufactured by STMicroelectronics. This transistor is produced using the advanced 'PB-HCD' (Power bipolar high current density) technology, which ensures exceptional high gain performances and very low saturation voltage. The 2STF2550 is part of a family that includes the 2STN2550, both of which are designed to meet the demands of high-current applications with efficiency and reliability.

Key Specifications

ParameterValue
TypePNP Bipolar (BJT) Transistor
Voltage Rating (Vce)50 V
Current Rating (Ic)5 A
Power Dissipation (Pd)1.4 W
Package TypeSurface Mount SOT-89-3

Key Features

  • High gain performance due to 'PB-HCD' technology
  • Very low saturation voltage
  • High current density
  • Surface mount SOT-89-3 package for compact design
  • High reliability and efficiency in high-current applications

Applications

The 2STF2550 is suitable for a variety of high-current applications, including but not limited to:

  • Power amplifiers and switches
  • Motor control circuits
  • High-power audio amplifiers
  • Automotive and industrial control systems

Q & A

  1. What is the voltage rating of the 2STF2550 transistor? The voltage rating (Vce) of the 2STF2550 transistor is 50 V.
  2. What is the current rating of the 2STF2550 transistor? The current rating (Ic) of the 2STF2550 transistor is 5 A.
  3. What is the power dissipation of the 2STF2550 transistor? The power dissipation (Pd) of the 2STF2550 transistor is 1.4 W.
  4. What package type does the 2STF2550 transistor use? The 2STF2550 transistor uses a surface mount SOT-89-3 package.
  5. What technology is used in the manufacture of the 2STF2550 transistor? The 2STF2550 transistor is manufactured using 'PB-HCD' (Power bipolar high current density) technology.
  6. What are some typical applications of the 2STF2550 transistor? Typical applications include power amplifiers, motor control circuits, high-power audio amplifiers, and automotive and industrial control systems.
  7. Where can I find detailed technical data for the 2STF2550 transistor? Detailed technical data can be found in the datasheet available on the STMicroelectronics website or through distributors like Digi-Key.
  8. What is the gain performance of the 2STF2550 transistor? The 2STF2550 transistor shows exceptional high gain performance due to the 'PB-HCD' technology.
  9. Is the 2STF2550 transistor suitable for high-current applications? Yes, the 2STF2550 transistor is designed for high-current applications and offers high reliability and efficiency.
  10. Can the 2STF2550 transistor be used in automotive systems? Yes, the 2STF2550 transistor can be used in automotive systems due to its high performance and reliability.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):5 A
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:550mV @ 300mA, 3A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:110 @ 2A, 2V
Power - Max:1.4 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89-3
