Overview
The NC7SZ157P6X is a high-performance, 2-to-1 CMOS non-inverting multiplexer from onsemi's Ultra-High Speed series of TinyLogic®. This device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range of 1.65V to 5.5V. It is designed for applications requiring high-speed data selection and routing, making it suitable for a variety of digital circuits.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage (VCC) | 1.65 | - | 5.5 | V |
| Operating Temperature | -40 | - | 85 | °C |
| Maximum Propagation Delay Time | - | 3.8ns @ 5V, 50pF | - | ns |
| Maximum Output High Current | - | - | 32mA | mA |
| Maximum Output Low Current | - | - | 32mA | mA |
| Maximum Quiescent Current | - | - | 1µA | µA |

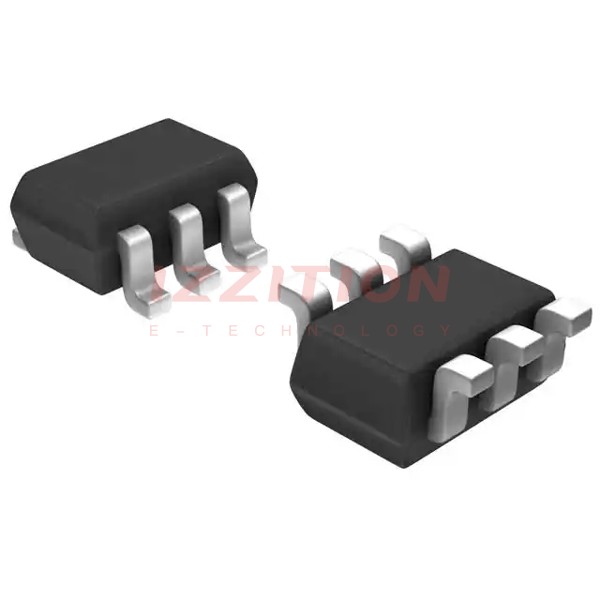

| Package Type | - | - | SC-88/SC70-6/SOT-363 | - |
| Logic Family | - | - | NC7SZ | - |
| Input Compatibility | - | - | TTL | - |
| Output Type | - | - | Non-Inverted | - |
Key Features
- Broad VCC Operating Range: 1.65V to 5.5V, allowing for versatility in different voltage environments.
- Ultra High-Speed: Achieves high-speed data selection with propagation delays as low as 3.8ns at 5V and 50pF load.
- Power Down High-Impedance Inputs/Outputs: Inputs and outputs are high impedance when VCC is 0V, reducing power consumption in standby modes.
- Over-Voltage Tolerance Inputs: Inputs can tolerate voltages up to 5.5V independent of the VCC operating range, facilitating 5V to 3V translation.
- Proprietary Noise/EMI Reduction Circuitry: Enhances signal integrity and reduces electromagnetic interference.
- Ultra-Small MicroPak™ Packages: Available in space-saving SC70 and MicroPak packages, ideal for compact designs.
Applications
The NC7SZ157P6X is suitable for a wide range of digital circuit applications, including:
- Data Selection and Routing: In systems where high-speed data selection is critical, such as in telecommunications, networking, and high-speed data processing.
- Voltage Translation: Facilitates translation between different voltage levels, making it useful in mixed-voltage systems.
- Low Power Designs: Ideal for battery-powered devices and other low-power applications due to its low quiescent current.
- Compact Designs: The ultra-small packages make it suitable for applications where space is limited, such as in mobile devices and IoT hardware.
Q & A
- What is the operating voltage range of the NC7SZ157P6X?
The operating voltage range is from 1.65V to 5.5V.
- What is the maximum propagation delay time of the NC7SZ157P6X?
The maximum propagation delay time is 3.8ns at 5V and 50pF load.
- What type of logic family does the NC7SZ157P6X belong to?
The NC7SZ157P6X belongs to the NC7SZ logic family.
- What is the input compatibility of the NC7SZ157P6X?
The inputs are TTL compatible.
- What is the output type of the NC7SZ157P6X?
The output is non-inverted.
- What are the package options available for the NC7SZ157P6X?
The device is available in SC-88/SC70-6/SOT-363 packages.
- What is the maximum quiescent current of the NC7SZ157P6X?
The maximum quiescent current is 1µA.
- Is the NC7SZ157P6X RoHS compliant?
Yes, the NC7SZ157P6X is RoHS compliant.
- What is the thermal resistance of the SC70 package?
The thermal resistance of the SC70 package is 350 °C/W.
- Can the NC7SZ157P6X handle over-voltage inputs?
Yes, the inputs can tolerate voltages up to 5.5V independent of the VCC operating range.
