Overview
The NC7SV157P6X is a single 2-Input Non-Inverting Multiplexer from ON Semiconductor's Ultra Low Power-A (ULP-A) Series of TinyLogic®. This component is fabricated with advanced CMOS technology to achieve high-speed operation while maintaining low CMOS power dissipation. It is ideal for applications that require extreme high speed, high drive, and low power consumption.
Key Specifications
| Attribute | Value |
|---|---|
| Logic Circuit | Multiplexer |
| No of Functions / Channels | 1 |
| Supply Voltage-Nom | 0.9V to 3.6V |
| Propagation Delay | 1.5ns (typ for 2.7 V to 3.6 V VCC) |
| Operating Temperature | -40°C to +85°C |
| Capacitance | 2pF |
| No of Inputs | 2 |
| No of Outputs | Single |
| High Level Output Current | -24mA |
| Low Level Output Current | 24mA |
| No of Pins | 6 |
| Quiescent Current | 0.9µA |
| Moisture Sensitivity Level | 1 |

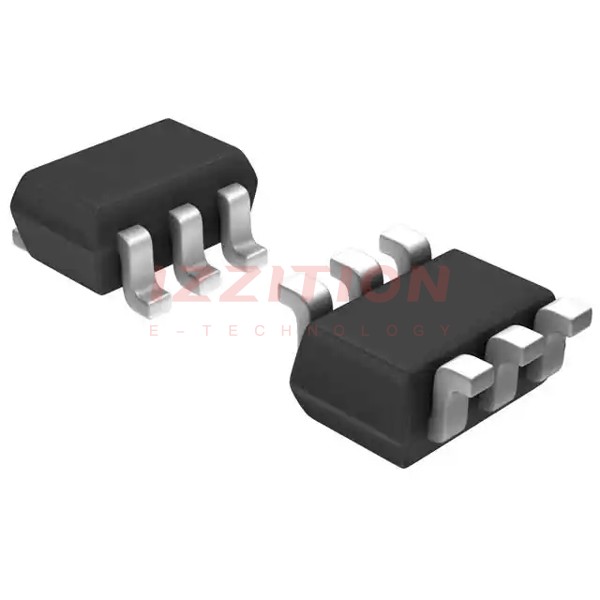

| Package Style | SOT-363 (SC-70-6, SC-88) |
| Mounting Method | Surface Mount |
Key Features
- 0.9 V to 3.6 V VCC supply operation
- 3.6 V overvoltage tolerant I/O’s at VCC from 0.9 V to 3.6 V
- Extremely High Speed tPD (e.g., 1.5 ns typ for 2.7 V to 3.6 V VCC)
- Power-Off high impedance inputs and outputs
- High Static Drive (IOH/IOL) - ±24 mA @ 3.00 V VCC
- Uses patented Quiet Series noise/EMI reduction circuitry
- Ultra small MicroPak leadfree package
- Ultra low dynamic power
Applications
- Broadband Modem
- Consumer Appliances
- Desktop PC
- Medical Electronics/Devices
- Mobile Handsets
- LCD Monitor
- Broadband Access
- Mobile Comm Infrastructure
- Automation
- Test and Measurement
- Building & Home Control
Q & A
- What is the NC7SV157P6X? The NC7SV157P6X is a single 2-Input Non-Inverting Multiplexer from ON Semiconductor's Ultra Low Power-A (ULP-A) Series of TinyLogic®.
- What is the supply voltage range for the NC7SV157P6X? The supply voltage range is from 0.9 V to 3.6 V.
- What is the typical propagation delay for the NC7SV157P6X at 3.6 V VCC? The typical propagation delay is 1.5 ns.
- What is the operating temperature range for the NC7SV157P6X? The operating temperature range is -40°C to +85°C.
- How many inputs and outputs does the NC7SV157P6X have? It has 2 inputs and a single output.
- What is the package style of the NC7SV157P6X? The package style is SOT-363 (SC-70-6, SC-88).
- What is the mounting method for the NC7SV157P6X? The mounting method is Surface Mount.
- What are some of the key applications for the NC7SV157P6X? Key applications include Broadband Modem, Consumer Appliances, Desktop PC, Medical Electronics/Devices, and more.
- Does the NC7SV157P6X support overvoltage tolerant I/Os? Yes, it supports 3.6 V overvoltage tolerant I/O’s at VCC from 0.9 V to 3.6 V.
- What is the quiescent current of the NC7SV157P6X? The quiescent current is 0.9µA.
