MMBT2222AM3T5G
  • Share:

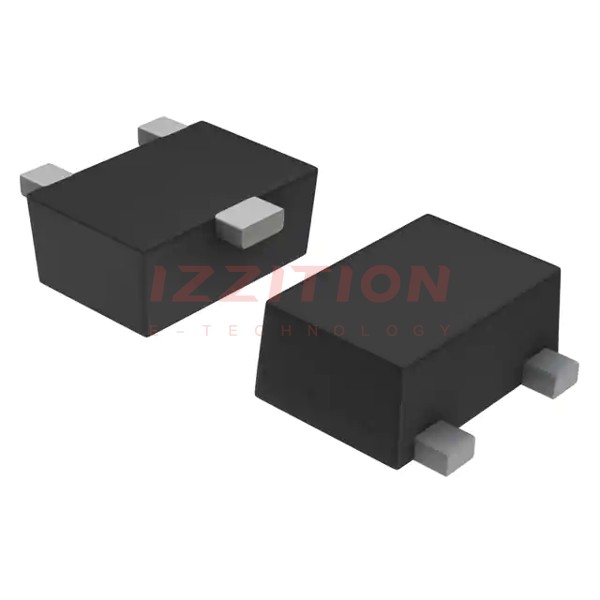

onsemi MMBT2222AM3T5G

Manufacturer No:
MMBT2222AM3T5G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS NPN 40V 0.6A SOT723
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MMBT2222AM3T5G is an NPN general-purpose bipolar junction transistor (BJT) manufactured by onsemi. This transistor is designed for a wide range of applications requiring high current and voltage handling capabilities. It is known for its reliability, low noise, and high switching speeds, making it suitable for various electronic circuits.

Key Specifications

ParameterValue
Transistor TypeNPN
Maximum Collector-Emitter Voltage (Vceo)40 V
Maximum Collector Current (Ic)600 mA
Maximum Power Dissipation (Pd)625 mW
Transition Frequency (ft)300 MHz
Base-Emitter Voltage (Vbe)0.7 V (typical)
Collector-Emitter Saturation Voltage (Vce(sat))0.3 V (typical)
Operating Temperature Range-55°C to 150°C

Key Features

  • High current and voltage handling capabilities.
  • Low noise and high switching speeds.
  • General-purpose use in a variety of electronic circuits.
  • Reliable performance across a wide temperature range.
  • Compact SOT-23 package for space-efficient designs.

Applications

The MMBT2222AM3T5G is versatile and can be used in various applications, including:

  • Amplifier circuits.
  • Switching circuits.
  • Audio and video equipment.
  • Automotive systems.
  • Industrial control systems.

Q & A

  1. What is the maximum collector current of the MMBT2222AM3T5G? The maximum collector current is 600 mA.
  2. What is the maximum collector-emitter voltage of the MMBT2222AM3T5G? The maximum collector-emitter voltage is 40 V.
  3. What is the transition frequency of the MMBT2222AM3T5G? The transition frequency is 300 MHz.
  4. What is the typical base-emitter voltage of the MMBT2222AM3T5G? The typical base-emitter voltage is 0.7 V.
  5. What is the operating temperature range of the MMBT2222AM3T5G? The operating temperature range is -55°C to 150°C.
  6. What package type does the MMBT2222AM3T5G come in? The MMBT2222AM3T5G comes in a SOT-23 package.
  7. Is the MMBT2222AM3T5G suitable for high-frequency applications? Yes, with a transition frequency of 300 MHz, it is suitable for high-frequency applications.
  8. Can the MMBT2222AM3T5G be used in automotive systems? Yes, it can be used in automotive systems due to its robust specifications and wide operating temperature range.
  9. What are some common applications of the MMBT2222AM3T5G? Common applications include amplifier circuits, switching circuits, audio and video equipment, and industrial control systems.
  10. Where can I find detailed specifications and datasheets for the MMBT2222AM3T5G? Detailed specifications and datasheets can be found on the onsemi website, as well as on distributor websites like Mouser and Digi-Key.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):600 mA
Voltage - Collector Emitter Breakdown (Max):40 V
Vce Saturation (Max) @ Ib, Ic:1V @ 50mA, 500mA
Current - Collector Cutoff (Max):10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 150mA, 10V
Power - Max:640 mW
Frequency - Transition:300MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-723
Supplier Device Package:SOT-723
