KSD1691YSTU
  • Share:

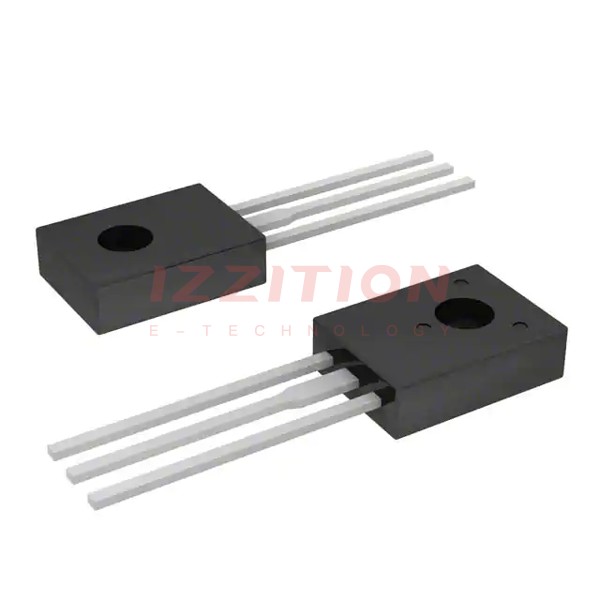

onsemi KSD1691YSTU

Manufacturer No:
KSD1691YSTU
Manufacturer:
onsemi
Package:
Tube
Description:
TRANS NPN 60V 5A TO126-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The KSD1691YSTU is a bipolar junction transistor (BJT) produced by onsemi, formerly known as Fairchild Semiconductor. This NPN transistor is designed for general-purpose applications and is known for its reliability and performance in various electronic circuits.

Key Specifications

ParameterValue
Transistor TypeNPN
Collector-Base Voltage (Vcb)60V
Collector-Emitter Voltage (Vce)60V
Emitter-Base Voltage (Veb)5V
Collector Current (Ic)5A
Base Current (Ib)0.1A
Power Dissipation (Pd)1.3W
Package TypeTO-126
Operating Temperature Range-55°C to 150°C

Key Features

  • High collector current of up to 5A, making it suitable for power applications.
  • High voltage ratings (Vcb, Vce, Veb) for robust performance in various circuits.
  • Low power dissipation of 1.3W, contributing to energy efficiency.
  • TO-126 package, which is widely used and easy to handle.
  • Compliance with ROHS standards, ensuring environmental sustainability.

Applications

The KSD1691YSTU is versatile and can be used in a variety of applications, including:

  • Power switching and amplification.
  • Automotive systems.
  • Industrial control circuits.
  • Consumer electronics.
  • General-purpose amplifiers and drivers.

Q & A

  1. What is the collector current rating of the KSD1691YSTU?
    The collector current rating is up to 5A.
  2. What is the maximum collector-base voltage for the KSD1691YSTU?
    The maximum collector-base voltage is 60V.
  3. What is the power dissipation of the KSD1691YSTU?
    The power dissipation is 1.3W.
  4. What package type does the KSD1691YSTU come in?
    The KSD1691YSTU comes in a TO-126 package.
  5. Is the KSD1691YSTU ROHS compliant?
    Yes, the KSD1691YSTU is ROHS compliant.
  6. What is the operating temperature range for the KSD1691YSTU?
    The operating temperature range is -55°C to 150°C.
  7. Can the KSD1691YSTU be used in automotive systems?
    Yes, it can be used in automotive systems.
  8. Is the KSD1691YSTU suitable for high-power applications?
    Yes, it is suitable for high-power applications due to its high current and voltage ratings.
  9. Where can I find detailed specifications for the KSD1691YSTU?
    Detailed specifications can be found in the datasheet available on websites like Mouser, Digi-Key, and LCSC.
  10. Is the KSD1691YSTU still in production?
    No, the KSD1691YSTU has been discontinued by Fairchild Semiconductor, but it may still be available from some distributors.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):5 A
Voltage - Collector Emitter Breakdown (Max):60 V
Vce Saturation (Max) @ Ib, Ic:300mV @ 200mA, 2A
Current - Collector Cutoff (Max):10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:160 @ 2A, 1V
Power - Max:1.3 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-225AA, TO-126-3
Supplier Device Package:TO-126-3
0 Remaining View Similar

In Stock

$0.84
392

Please send RFQ , we will respond immediately.

Same Series
KSD1691GS
KSD1691GS
TRANS NPN 60V 5A TO126-3
KSD1691GSTU
KSD1691GSTU
TRANS NPN 60V 5A TO126-3
KSD1691YS
KSD1691YS
TRANS NPN 60V 5A TO126-3
KSD1691OS
KSD1691OS
TRANS NPN 60V 5A TO126-3
KSD1691YSTSTU
KSD1691YSTSTU
TRANS NPN 60V 5A TO126-3
KSD1691OSTU
KSD1691OSTU
TRANS NPN 60V 5A TO126-3

Similar Products

Part Number KSD1691YSTU KSD1691GSTU KSD1691OSTU
Manufacturer onsemi onsemi onsemi
Product Status Active Active Obsolete
Transistor Type NPN NPN NPN
Current - Collector (Ic) (Max) 5 A 5 A 5 A
Voltage - Collector Emitter Breakdown (Max) 60 V 60 V 60 V
Vce Saturation (Max) @ Ib, Ic 300mV @ 200mA, 2A 300mV @ 200mA, 2A 300mV @ 200mA, 2A
Current - Collector Cutoff (Max) 10µA (ICBO) 10µA (ICBO) 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 160 @ 2A, 1V 200 @ 2A, 1V 100 @ 2A, 1V
Power - Max 1.3 W 1.3 W 1.3 W
Frequency - Transition - - -
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole
Package / Case TO-225AA, TO-126-3 TO-225AA, TO-126-3 TO-225AA, TO-126-3
Supplier Device Package TO-126-3 TO-126-3 TO-126-3
