BUX85G
  • Share:

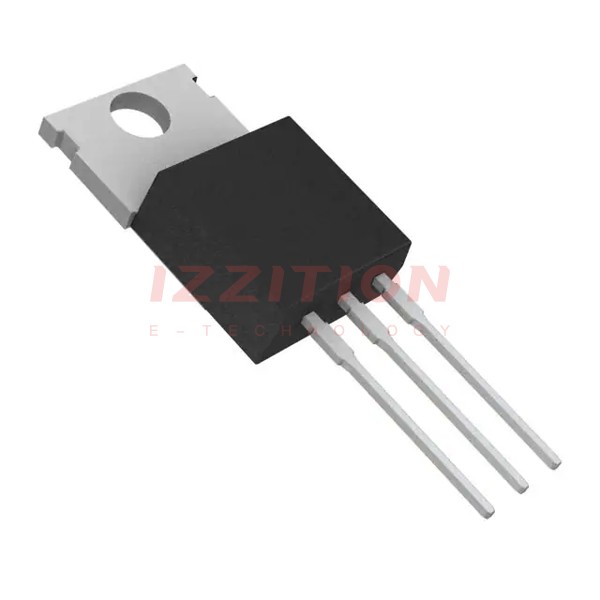

onsemi BUX85G

Manufacturer No:
BUX85G
Manufacturer:
onsemi
Package:
Tube
Description:
TRANS NPN 450V 2A TO220
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUX85G is a high-performance NPN bipolar power transistor manufactured by onsemi. This transistor is designed for high voltage, high speed power switching applications, making it suitable for a variety of demanding roles. It is housed in the TO-220 package, which is commonly used for through-hole mounting and provides good thermal dissipation characteristics.

Key Specifications

ParameterValue
Collector Current (Ic)2 A
Collector-Emitter Voltage (Vce)450 V
Power Dissipation (Pd)50 W
Frequency (fT)4 MHz
Package TypeTO-220

Key Features

  • High voltage and high speed switching capabilities.
  • Collector current of 2 A and collector-emitter voltage of 450 V.
  • Power dissipation of 50 W.
  • Operating frequency up to 4 MHz.
  • Housed in the TO-220 package for through-hole mounting and good thermal performance.

Applications

The BUX85G is designed for various high-voltage and high-speed power switching applications, including:

  • Converters and inverters.
  • Switching regulators.
  • Motor control systems.
  • General-purpose amplifier applications.

Q & A

  1. What is the collector current rating of the BUX85G?
    The collector current rating of the BUX85G is 2 A.
  2. What is the maximum collector-emitter voltage for the BUX85G?
    The maximum collector-emitter voltage for the BUX85G is 450 V.
  3. What is the power dissipation capability of the BUX85G?
    The power dissipation capability of the BUX85G is 50 W.
  4. What is the operating frequency range of the BUX85G?
    The operating frequency range of the BUX85G is up to 4 MHz.
  5. In what package is the BUX85G available?
    The BUX85G is available in the TO-220 package.
  6. What are some common applications for the BUX85G?
    The BUX85G is commonly used in converters, inverters, switching regulators, and motor control systems.
  7. Is the BUX85G suitable for high-speed switching applications?
    Yes, the BUX85G is designed for high-speed power switching applications.
  8. What is the thermal performance of the TO-220 package?
    The TO-220 package provides good thermal dissipation characteristics, making it suitable for high-power applications.
  9. Can the BUX85G be used in general-purpose amplifier applications?
    Yes, the BUX85G can be used in general-purpose amplifier applications.
  10. Where can I find detailed specifications for the BUX85G?
    Detailed specifications for the BUX85G can be found on the official onsemi website, as well as on distributor websites such as Mouser and Digi-Key.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):2 A
Voltage - Collector Emitter Breakdown (Max):450 V
Vce Saturation (Max) @ Ib, Ic:1V @ 200mA, 1A
Current - Collector Cutoff (Max):200µA
DC Current Gain (hFE) (Min) @ Ic, Vce:30 @ 100mA, 5V
Power - Max:50 W
Frequency - Transition:4MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3
Supplier Device Package:TO-220
0 Remaining View Similar

In Stock

$0.96
146

Please send RFQ , we will respond immediately.

Same Series
BUX85
BUX85
TRANS NPN 450V 2A TO220

Similar Products

Part Number BUX85G BUX85
Manufacturer onsemi onsemi
Product Status Active Obsolete
Transistor Type NPN NPN
Current - Collector (Ic) (Max) 2 A 2 A
Voltage - Collector Emitter Breakdown (Max) 450 V 450 V
Vce Saturation (Max) @ Ib, Ic 1V @ 200mA, 1A 1V @ 200mA, 1A
Current - Collector Cutoff (Max) 200µA 200µA
DC Current Gain (hFE) (Min) @ Ic, Vce 30 @ 100mA, 5V 30 @ 100mA, 5V
Power - Max 50 W 50 W
Frequency - Transition 4MHz 4MHz
Operating Temperature -65°C ~ 150°C (TJ) -65°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole
Package / Case TO-220-3 TO-220-3
Supplier Device Package TO-220 TO-220
