BC847BM3T5G
  • Share:

onsemi BC847BM3T5G

Manufacturer No:
BC847BM3T5G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS NPN 45V 0.1A SOT723
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

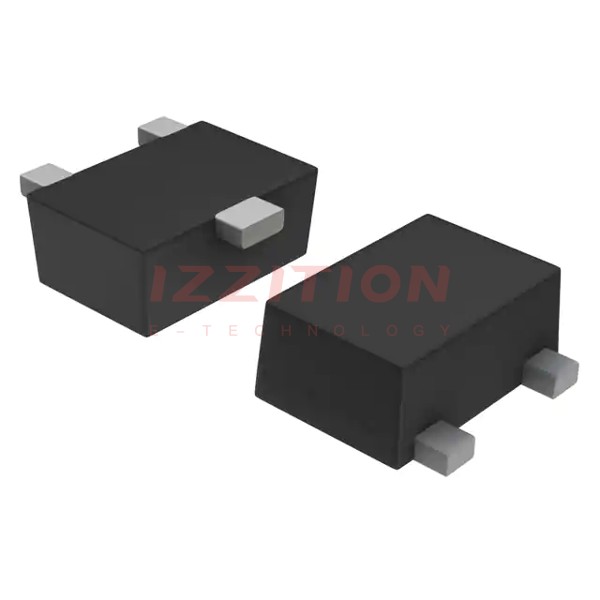

The BC847BM3T5G is a general-purpose NPN bipolar junction transistor (BJT) manufactured by onsemi. It is designed for low-power surface mount applications and is housed in the SOT-723 package. This transistor is suitable for a wide range of amplifier applications due to its robust specifications and reliability. The BC847BM3T5G is a Pb-Free device, making it compliant with current environmental regulations.

Key Specifications

AttributeValueUnit
PolarityNPN
TypeGeneral Purpose
Collector-Emitter Voltage (VCEO)45V
Collector-Base Voltage (VCBO)50V
Emitter-Base Voltage (VEBO)6V
Collector Current (IC)100mA
Power Dissipation (PD)600mW
Collector-Emitter Saturation Voltage (VCE(sat))0.6V
Base-Emitter Saturation Voltage (VBE(sat))0.7-0.9V
DC Current Gain (hFE)200
Collector Current Cutoff15 nA
ConfigurationSingle
Transition Frequency (fT)100 MHz
Operating Temperature Range-55°C to +150°C
Noise Figure (NF)10 dB
Package StyleSOT-723
Mounting MethodSurface Mount

Key Features

  • General-purpose NPN bipolar junction transistor suitable for amplifier applications.
  • Pb-Free and RoHS compliant, ensuring environmental sustainability.
  • Housed in the SOT-723 package, ideal for surface mount technology.
  • High collector-emitter voltage (VCEO) of 45V and collector-base voltage (VCBO) of 50V.
  • Low power dissipation of 600 mW and high DC current gain (hFE) of 200.
  • Wide operating temperature range from -55°C to +150°C.
  • Low noise figure of 10 dB, making it suitable for noise-sensitive applications.

Applications

The BC847BM3T5G transistor is versatile and can be used in a variety of applications, including:

  • General-purpose amplifiers.
  • Switching circuits.
  • Audio amplifiers.
  • Automotive electronics.
  • Consumer electronics.
  • Industrial control systems.

Q & A

  1. What is the polarity of the BC847BM3T5G transistor?
    The BC847BM3T5G is an NPN bipolar junction transistor.
  2. What is the maximum collector-emitter voltage (VCEO) of the BC847BM3T5G?
    The maximum collector-emitter voltage (VCEO) is 45V.
  3. What is the power dissipation of the BC847BM3T5G?
    The power dissipation is 600 mW.
  4. What is the DC current gain (hFE) of the BC847BM3T5G?
    The DC current gain (hFE) is 200.
  5. What is the operating temperature range of the BC847BM3T5G?
    The operating temperature range is from -55°C to +150°C.
  6. What is the noise figure of the BC847BM3T5G?
    The noise figure is 10 dB.
  7. What package style does the BC847BM3T5G use?
    The BC847BM3T5G is housed in the SOT-723 package.
  8. Is the BC847BM3T5G Pb-Free?
    Yes, the BC847BM3T5G is a Pb-Free device.
  9. What is the transition frequency (fT) of the BC847BM3T5G?
    The transition frequency (fT) is 100 MHz.
  10. What are some common applications of the BC847BM3T5G?
    Common applications include general-purpose amplifiers, switching circuits, audio amplifiers, automotive electronics, consumer electronics, and industrial control systems.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:600mV @ 5mA, 100mA
Current - Collector Cutoff (Max):15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 2mA, 5V
Power - Max:260 mW
Frequency - Transition:100MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-723
Supplier Device Package:SOT-723
