2SA2210
  • Share:

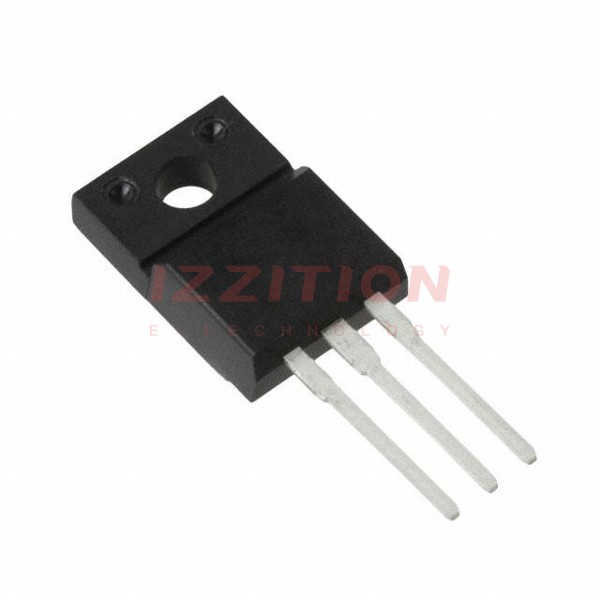

onsemi 2SA2210

Manufacturer No:
2SA2210
Manufacturer:
onsemi
Package:
Bulk
Description:
TRANS PNP 50V 20A TO220F-3SG
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2SA2210 is a high-performance Bipolar Junction Transistor (BJT) manufactured by onsemi. This PNP transistor is designed for high-current switching applications and features a low VCE(sat) characteristic, making it suitable for a variety of power management and amplifier roles. The device is housed in the TO-220F-3SG package, which is known for its robustness and thermal management capabilities.

Key Specifications

ParameterUnitMinTypMax
Collector-Base Voltage (VCB)V---50
Collector-Emitter Voltage (VCE)V---50
Emitter-Base Voltage (VEB)V---4
Collector Current (IC)A---20
Base Current (IB)A---5
Collector Cutoff Current (ICBO)μA--10
Emitter Cutoff Current (IEBO)μA--10
Saturation Voltage (VCE(sat))V-0.5-

Key Features

  • Low VCE(sat) for efficient switching and minimal power loss.
  • High collector current of up to 20A, making it suitable for high-current applications.
  • Robust TO-220F-3SG package for good thermal management and mechanical stability.
  • PNP configuration for use in a variety of amplifier and switching circuits.

Applications

The 2SA2210 is ideal for high-current switching applications, including power supplies, motor control circuits, and general-purpose amplifiers. Its low VCE(sat) and high current handling capabilities make it a reliable choice for applications requiring efficient power management.

Q & A

  1. What is the maximum collector current of the 2SA2210?
    The maximum collector current of the 2SA2210 is -20A.
  2. What is the typical VCE(sat) of the 2SA2210?
    The typical VCE(sat) of the 2SA2210 is 0.5V.
  3. What package type is the 2SA2210 available in?
    The 2SA2210 is available in the TO-220F-3SG package.
  4. What is the maximum collector-base voltage of the 2SA2210?
    The maximum collector-base voltage of the 2SA2210 is -50V.
  5. Is the 2SA2210 suitable for high-temperature applications?
    Yes, the 2SA2210 is designed to handle a range of temperatures, but specific temperature limits should be checked in the datasheet.
  6. What type of transistor is the 2SA2210?
    The 2SA2210 is a PNP Bipolar Junction Transistor (BJT).
  7. What are some common applications of the 2SA2210?
    The 2SA2210 is commonly used in high-current switching applications, power supplies, motor control circuits, and general-purpose amplifiers.
  8. Where can I find detailed specifications for the 2SA2210?
    Detailed specifications for the 2SA2210 can be found in the datasheet available on the onsemi website or through distributors like Mouser Electronics.
  9. Is the 2SA2210 available in other packages besides TO-220F-3SG?
    No, the 2SA2210 is specifically housed in the TO-220F-3SG package.
  10. What is the emitter-base voltage rating of the 2SA2210?
    The maximum emitter-base voltage rating of the 2SA2210 is -4V.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):20 A
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 350mA, 7A
Current - Collector Cutoff (Max):10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:150 @ 1A, 2V
Power - Max:2 W
Frequency - Transition:140MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack
Supplier Device Package:TO-220F-3SG
