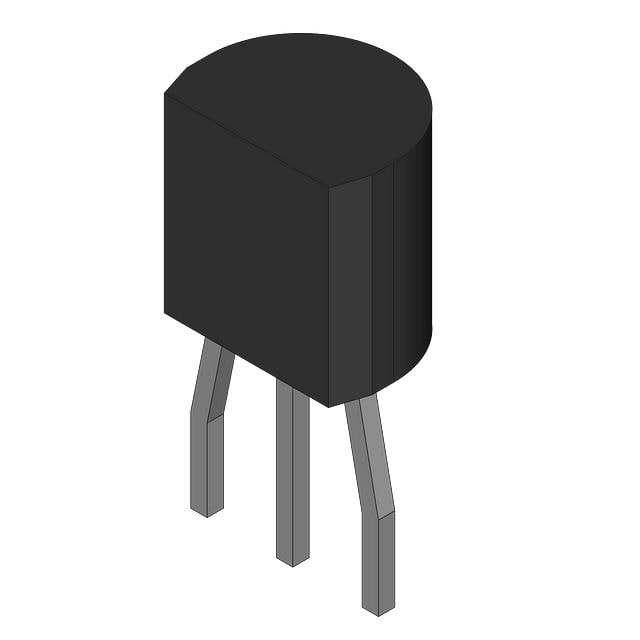

onsemi 2N3904RLRAH

Manufacturer No:
2N3904RLRAH
Manufacturer:
onsemi
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2N3904RLRAH is an NPN general-purpose amplifier and switch transistor manufactured by Onsemi. This device is designed for a wide range of applications, including amplification and switching, due to its versatile characteristics. It features a high current gain, low saturation voltage, and excellent thermal stability, making it suitable for various electronic circuits.

Key Specifications

Parameter Symbol Min Max Unit
Collector-Emitter Voltage VCEO - 40 V
Collector-Base Voltage VCBO - 60 V
Emitter-Base Voltage VEBO - 6.0 V
Collector Current - Continuous IC - 200 mA
Operating and Storage Junction Temperature Range TJ, TSTG -55 150 °C
Total Device Dissipation PD - 625 mW
Thermal Resistance, Junction to Ambient RθJA - 200 °C/W
DC Current Gain (IC = 1.0 mA, VCE = 1.0 V) hFE 35 70 -
Collector-Emitter Saturation Voltage (IC = 10 mA, IB = 1.0 mA) VCE(sat) - 0.3 V
Base-Emitter Saturation Voltage (IC = 10 mA, IB = 1.0 mA) VBE(sat) 0.65 0.85 V

Key Features

  • Low Leakage Current: Base cutoff current (IBL) and collector cutoff current (ICEX) are both typically 50 nA at VCE = 30 V and VEB = 3 V.
  • Excellent DC Current Gain Linearity: The transistor has a DC current gain (hFE) ranging from 35 to 70 at IC = 1.0 mA and VCE = 1.0 V.
  • Low Saturation Voltage: The collector-emitter saturation voltage (VCE(sat)) is typically 0.3 V at IC = 50 mA and IB = 5 mA.
  • Low Collector Output Capacitance: The output capacitance (Cobo) is typically 4 pF at VCB = 5 V and f = 1 MHz.
  • High Frequency Capability: The current-gain bandwidth product (fT) is up to 300 MHz at IC = 10 mA and VCE = 20 V.

Applications

  • General-Purpose Amplification: Suitable for a wide range of amplification tasks due to its high current gain and low noise figure.
  • Switching Circuits: Can be used in switching applications with fast rise and fall times (typically 35 ns and 50 ns, respectively).
  • Audio and Signal Processing: Used in audio amplifiers, signal processing circuits, and other applications requiring low noise and high fidelity.
  • Automotive and Industrial Electronics: Due to its robust thermal characteristics and wide operating temperature range, it is suitable for use in automotive and industrial environments.

Q & A

  1. What is the maximum collector-emitter voltage for the 2N3904?

    The maximum collector-emitter voltage (VCEO) is 40 V.

  2. What is the typical DC current gain (hFE) of the 2N3904?

    The typical DC current gain (hFE) ranges from 35 to 70 at IC = 1.0 mA and VCE = 1.0 V.

  3. What is the collector-emitter saturation voltage (VCE(sat)) for the 2N3904?

    The collector-emitter saturation voltage (VCE(sat)) is typically 0.3 V at IC = 50 mA and IB = 5 mA.

  4. What is the thermal resistance from junction to ambient (RθJA) for the 2N3904?

    The thermal resistance from junction to ambient (RθJA) is 200 °C/W.

  5. What are the typical rise and fall times for the 2N3904 in switching applications?

    The typical rise time (tr) and fall time (tf) are 35 ns and 50 ns, respectively.

  6. What is the maximum collector current for the 2N3904?

    The maximum collector current (IC) is 200 mA.

  7. What is the operating temperature range for the 2N3904?

    The operating temperature range is from -55°C to 150°C.

  8. Is the 2N3904 suitable for high-frequency applications?

    Yes, the 2N3904 has a current-gain bandwidth product (fT) of up to 300 MHz, making it suitable for high-frequency applications.

  9. What is the typical noise figure for the 2N3904?

    The typical noise figure (NF) is around 5 dB at IC = 100 μA, VCE = 5 V, and RS = 1 kΩ.

  10. Is the 2N3904 available in different packaging options?

    Yes, the 2N3904 is available in various packaging options, including TO-92 and reel packaging.
