BFU550235
  • Share:

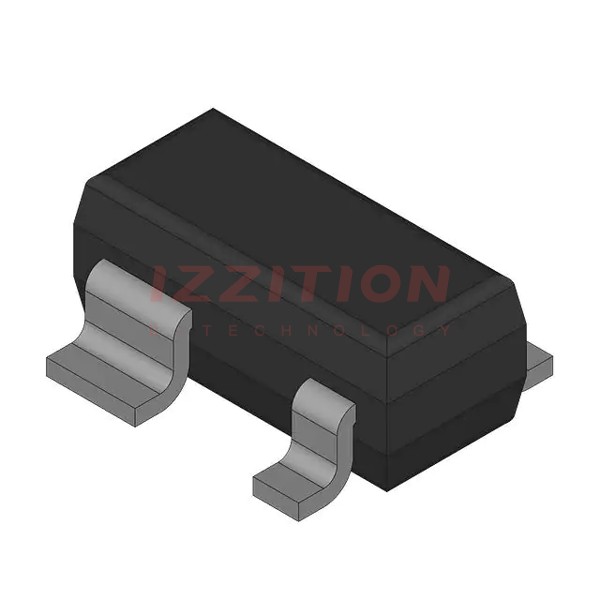

NXP USA Inc. BFU550235

Manufacturer No:
BFU550235
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
NPN WIDEBAND SILICON RF TRANSIST
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BFU550 is an NPN wideband silicon RF transistor produced by NXP USA Inc. It is part of the BFU5 family of transistors, designed for high-speed, low-noise applications. This transistor is particularly suited for small signal to medium power applications up to 2 GHz, making it a versatile component in various RF systems.

Key Specifications

ParameterValue
Transistor TypeNPN
PackageSOT143B (4-pin dual-emitter)
Maximum FrequencyUp to 2 GHz
Voltage Rating12V
Noise FigureOptimized for low noise applications
Application RangeSmall signal to medium power applications

Key Features

  • High-speed operation suitable for frequencies up to 2 GHz.
  • Low noise characteristics, making it ideal for sensitive RF applications.
  • Compact SOT143B package with a 4-pin dual-emitter configuration.
  • Part of the BFU5 family, ensuring consistency and reliability across similar models.

Applications

The BFU550 is used in a variety of RF applications, including:

  • Radio frequency amplifiers and transceivers.
  • Wireless communication systems.
  • Radar and microwave systems.
  • Automotive and industrial RF systems.

Q & A

  1. What is the BFU550 transistor used for? The BFU550 is used for high-speed, low-noise RF applications up to 2 GHz.
  2. What is the package type of the BFU550? The BFU550 comes in a SOT143B package with a 4-pin dual-emitter configuration.
  3. What are the key features of the BFU550? It features high-speed operation, low noise characteristics, and is part of the reliable BFU5 family of transistors.
  4. What are some common applications of the BFU550? It is commonly used in RF amplifiers, wireless communication systems, radar, and microwave systems.
  5. What is the maximum voltage rating of the BFU550? The maximum voltage rating is 12V.
  6. Is the BFU550 suitable for high-power applications? No, it is suitable for small signal to medium power applications.
  7. Where can I find design files and models for the BFU550? Design files and models are available on the NXP Semiconductors website.
  8. What industries benefit from the use of the BFU550? The BFU550 is beneficial in automotive, industrial, and communication infrastructure markets.
  9. How does the BFU550 contribute to system performance? It contributes by providing low noise and high-speed operation, enhancing overall system performance in RF applications.
  10. Can the BFU550 be used in legacy RF systems? Yes, it is part of the legacy RF wideband transistors family and can be used in legacy RF systems.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$0.15
4,257

Please send RFQ , we will respond immediately.
