Nexperia USA Inc. PUMD15/ZL115

Manufacturer No:
PUMD15/ZL115
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

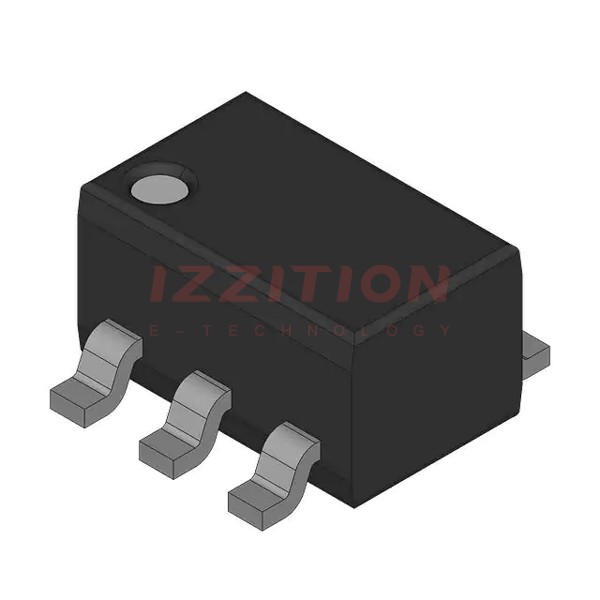

The PUMD15/ZL115, produced by Nexperia USA Inc., is a resistor-equipped double transistor featuring both NPN and PNP configurations. This component is designed to simplify circuit design by integrating bias resistors, thereby reducing the overall component count and the complexity of the circuit. It is part of Nexperia's extensive portfolio of discrete semiconductor products, which are widely used in various industries including automotive, industrial, power, computing, consumer, mobile, and wearables.

Key Specifications

Type numberPackage versionPackage nameSize (mm)I C [max] (mA)R1 (typ) (kΩ)R2 (typ) (kΩ)Channel typeP tot (mW)V CEO (V)T j [max] (°C)Automotive qualified
PUMD15SOT363TSSOP62.1 x 1.25 x 0.951004.74.7NPN/PNP30050150N

Key Features

  • 100 mA output current capability
  • Built-in bias resistors (R1 = 4.7 kΩ, R2 = 4.7 kΩ)
  • Simplifies circuit design by reducing the need for external resistors
  • Reduces component count and pick-and-place operations
  • Surface mount package (SOT363/TSSOP6) for compact design
  • Maximum collector-emitter voltage (V CEO) of 50 V
  • Maximum power dissipation (P tot) of 300 mW
  • Maximum junction temperature (T j) of 150 °C

Applications

The PUMD15/ZL115 is versatile and can be used in a variety of applications across different industries. These include:

  • Automotive systems: For general-purpose switching and amplification tasks.
  • Industrial control systems: For relay drivers, sensor interfaces, and other control circuits.
  • Consumer electronics: In audio, video, and other consumer devices requiring small signal amplification.
  • Mobile and wearable devices: Where space and power efficiency are critical.

Q & A

  1. What is the PUMD15/ZL115?
    The PUMD15/ZL115 is a resistor-equipped double transistor with NPN and PNP configurations, designed to simplify circuit design.
  2. What are the key benefits of using the PUMD15/ZL115?
    It simplifies circuit design, reduces component count, and minimizes pick-and-place operations.
  3. What is the maximum output current of the PUMD15/ZL115?
    The maximum output current is 100 mA.
  4. What are the values of the built-in bias resistors?
    The built-in bias resistors are R1 = 4.7 kΩ and R2 = 4.7 kΩ.
  5. What is the package type of the PUMD15/ZL115?
    The package type is SOT363/TSSOP6.
  6. What is the maximum collector-emitter voltage (V CEO) of the PUMD15/ZL115?
    The maximum collector-emitter voltage is 50 V.
  7. Is the PUMD15/ZL115 automotive qualified?
    No, it is not automotive qualified.
  8. What is the maximum power dissipation (P tot) of the PUMD15/ZL115?
    The maximum power dissipation is 300 mW.
  9. What is the maximum junction temperature (T j) of the PUMD15/ZL115?
    The maximum junction temperature is 150 °C.
  10. Where can I find more detailed specifications and datasheets for the PUMD15/ZL115?
    You can find detailed specifications and datasheets on Nexperia's official website and through authorized distributors like Digi-Key and TTI.
