Overview

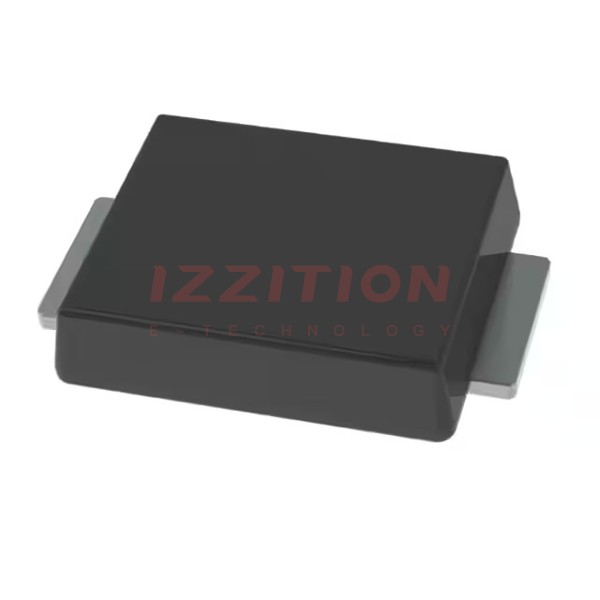

The PMEG6045ETP-QX is a high-temperature Schottky barrier rectifier produced by Nexperia USA Inc. This component is designed to provide efficient and reliable rectification in various electronic systems. It features a planar Schottky barrier structure with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface-Mounted Device (SMD) package. This diode is particularly suited for applications requiring high current handling and low forward voltage drop, making it an excellent choice for automotive, industrial, and consumer electronics.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Type Number | PMEG6045ETP | - |
| Package | SOD128 (CFP5) | - |
| Repetitive Reverse Voltage (Vrrm) | 60 | V |
| Maximum Forward Current (IF) | 4.5 | A |
| Typical Forward Voltage (VF) @ 25°C | 460 | mV |
| Maximum Forward Voltage (VF) @ 25°C | 530 | mV |
| Typical Reverse Current (IR) @ 25°C | 115 | µA |
| Maximum Reverse Current (IR) @ 25°C | 400 | µA |
| Maximum Capacitance (Cd) | 575 | pF |
| Package Dimensions | 3.8 x 2.5 x 1 | mm |
| Automotive Qualified | No | - |
Key Features
- High-Temperature Operation: The PMEG6045ETP-QX is designed to operate efficiently in high-temperature environments, making it suitable for demanding applications.
- Low Forward Voltage Drop: With a typical forward voltage of 460 mV and a maximum of 530 mV, this diode minimizes energy losses and enhances system efficiency.
- High Current Handling: Capable of handling up to 4.5 A of forward current, this diode is ideal for applications requiring high current rectification.
- Integrated Guard Ring: The integrated guard ring provides stress protection, enhancing the component's reliability and lifespan.
- Compact SOD128 Package: The small and flat lead SMD package makes it easy to integrate into compact designs, saving space and improving thermal performance.
Applications
- Automotive Systems: Suitable for use in automotive systems, including power supplies, battery management, and other high-current applications.
- Industrial Electronics: Used in industrial power supplies, motor control, and other high-reliability applications.
- Consumer Electronics: Found in consumer electronics such as power adapters, battery chargers, and other devices requiring efficient rectification.
- Power Supplies: Ideal for use in switch-mode power supplies, DC-DC converters, and other power management circuits.
Q & A
- What is the maximum repetitive reverse voltage of the PMEG6045ETP-QX?
The maximum repetitive reverse voltage (Vrrm) is 60 V.
- What is the maximum forward current rating of this diode?
The maximum forward current (IF) is 4.5 A.
- What is the typical forward voltage drop at 25°C?
The typical forward voltage (VF) at 25°C is 460 mV.
- What package type is the PMEG6045ETP-QX available in?
The diode is encapsulated in a SOD128 (CFP5) package.
- Is the PMEG6045ETP-QX automotive qualified?
No, the PMEG6045ETP-QX is not automotive qualified.
- What are the dimensions of the SOD128 package?
The package dimensions are 3.8 x 2.5 x 1 mm.
- What is the maximum capacitance of the PMEG6045ETP-QX?
The maximum capacitance (Cd) is 575 pF.
- What is the typical reverse current at 25°C?
The typical reverse current (IR) at 25°C is 115 µA.
- What are some common applications for this diode?
Common applications include automotive systems, industrial electronics, consumer electronics, and power supplies.
- How can I obtain samples of the PMEG6045ETP-QX?
Samples can be ordered via Nexperia's sales organization or through their network of global and regional distributors.
