Overview

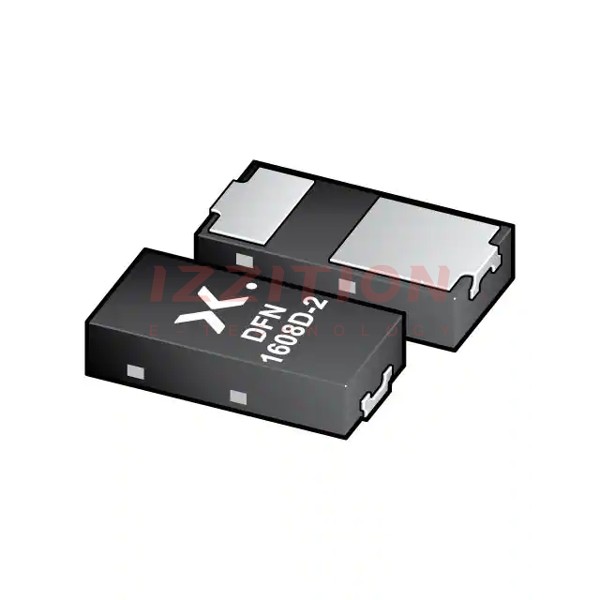

The PMEG4010EPK/S500YL is a 40 V, 1 A low forward voltage (VF) MEGA Schottky barrier rectifier produced by Nexperia USA Inc. This component is designed for high-efficiency applications and is encapsulated in a leadless ultra small SOD1608 (DFN1608D-2) package. It is automotive qualified according to the Automotive Electronics Council (AEC) standard Q101, making it suitable for use in automotive and other demanding environments.
Key Specifications
| Parameter | Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| VR (Reverse Voltage) | Tj = 25 °C | - | - | 40 | V |
| IF (Forward Current) | Tsp ≤ 130 °C | - | - | 1.4 | A |
| IF(AV) (Average Forward Current) | δ = 0.5; f = 20 kHz; Tamb ≤ 90 °C; square wave | - | - | 1 | A |
| IFRM (Repetitive Peak Forward Current) | tp ≤ 1 ms; δ ≤ 0.25 | - | - | 3 | A |
| IFSM (Non-Repetitive Peak Forward Current) | tp = 8 ms; square wave; Tj(init) = 25 °C | - | - | 5 | A |
| VF (Forward Voltage) | IF = 1 A; tp ≤ 300 µs; δ ≤ 0.02; pulsed; Tj = 25 °C | - | - | 540 - 600 | mV |
| trr (Reverse Recovery Time) | IF = 0.5 A; IR = 0.5 A; IR(meas) = 0.1 A; Tj = 25 °C | - | - | 3 | ns |
Key Features
- Low Forward Voltage Drop: The PMEG4010EPK/S500YL features a low forward voltage drop, typically 540 - 600 mV at 1 A, making it highly efficient for power conversion applications.
- High Current Capability: It can handle up to 1 A of average forward current and up to 5 A of non-repetitive peak forward current.
- Automotive Qualified: Qualified according to the Automotive Electronics Council (AEC) standard Q101, ensuring reliability in automotive and other harsh environments.
- Ultra Small Package: Encapsulated in a leadless SOD1608 (DFN1608D-2) package, which is ideal for space-constrained designs.
- Integrated Guard Ring: Includes an integrated guard ring for stress protection, enhancing the component's durability.
Applications
- Automotive Systems: Suitable for various automotive applications due to its AEC-Q101 qualification.
- Power Supplies: Ideal for use in power supply units where high efficiency and low voltage drop are crucial.
- DC-DC Converters: Used in DC-DC converters for efficient power conversion.
- Industrial Power Systems: Can be used in industrial power systems requiring high reliability and efficiency.
Q & A
- What is the maximum reverse voltage of the PMEG4010EPK/S500YL?
The maximum reverse voltage is 40 V at Tj = 25 °C.
- What is the typical forward voltage drop at 1 A?
The typical forward voltage drop at 1 A is between 540 - 600 mV.
- What is the package type of the PMEG4010EPK/S500YL?
The component is encapsulated in a leadless ultra small SOD1608 (DFN1608D-2) package.
- Is the PMEG4010EPK/S500YL automotive qualified?
Yes, it is qualified according to the Automotive Electronics Council (AEC) standard Q101.
- What is the maximum average forward current?
The maximum average forward current is 1 A.
- What is the non-repetitive peak forward current?
The non-repetitive peak forward current is 5 A for tp = 8 ms and square wave conditions.
- What is the reverse recovery time?
The reverse recovery time is typically 3 ns at specified conditions.
- What are the typical applications of the PMEG4010EPK/S500YL?
It is typically used in automotive systems, power supplies, DC-DC converters, and industrial power systems.
- Does the PMEG4010EPK/S500YL have an integrated guard ring?
Yes, it includes an integrated guard ring for stress protection.
- What is the thermal package type?
The thermal package type is DFN1608D-2 (SOD1608).
