Overview

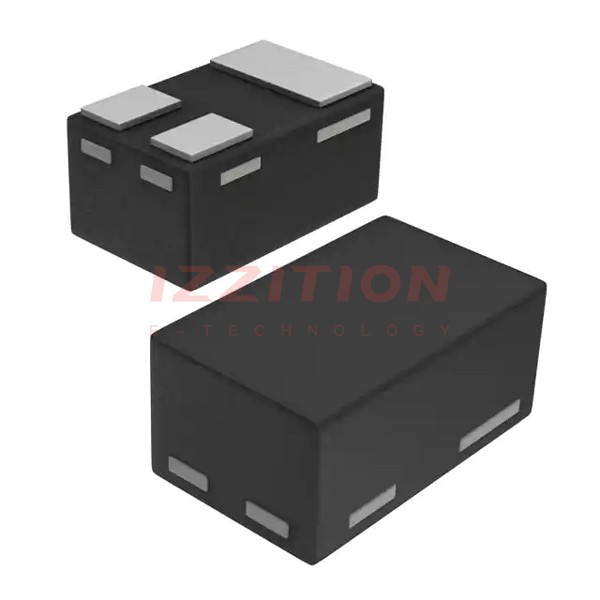

The PMBT3904M,315 is a 40 V, 200 mA NPN single switching transistor produced by Nexperia USA Inc. This transistor is packaged in a SOT883 (SC-101) leadless ultra small Surface-Mounted Device (SMD) plastic package, making it ideal for applications where board space reduction is crucial. It is a general-purpose switching transistor suitable for a wide range of electronic designs.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | PMBT3904M |
| Package | SOT883 (DFN1006-3) |
| Package Size (mm) | 1 x 0.6 x 0.48 |
| Channel Type | NPN |
| Total Power Dissipation (Ptot) | 260 mW |
| Collector-Emitter Voltage (VCEO) | 40 V |
| Collector Current (IC) | 200 mA |
| Current Gain (hFE) | 100 - 300 |
| Junction Temperature (TJ) | 150 °C |
| Transition Frequency (fT) | 300 MHz |
| Automotive Qualified | No |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Key Features
- Ultra Small Package: The SOT883 package is leadless and extremely compact, making it ideal for space-constrained designs.
- General-Purpose Switching: Suitable for a variety of switching and amplification applications.
- High Collector-Emitter Voltage: Rated at 40 V, providing robust performance in various voltage conditions.
- High Current Gain: With a current gain (hFE) range of 100 to 300, ensuring reliable switching and amplification.
- High Transition Frequency: A transition frequency of 300 MHz, suitable for high-frequency applications.
Applications
The PMBT3904M,315 transistor is versatile and can be used in a wide range of applications, including:
- Automotive Systems: Although not automotive qualified, it can be used in non-critical automotive applications.
- Industrial Control Systems: Suitable for general-purpose switching and amplification in industrial environments.
- Consumer Electronics: Ideal for use in mobile devices, wearables, and other consumer electronics where space is limited.
- Power and Computing Systems: Can be used in power management and computing systems requiring reliable switching transistors.
Q & A
- What is the package type of the PMBT3904M,315 transistor?
The PMBT3904M,315 transistor is packaged in a SOT883 (SC-101) leadless ultra small Surface-Mounted Device (SMD) plastic package.
- What is the maximum collector-emitter voltage of the PMBT3904M,315 transistor?
The maximum collector-emitter voltage (VCEO) is 40 V.
- What is the maximum collector current of the PMBT3904M,315 transistor?
The maximum collector current (IC) is 200 mA.
- What is the current gain range of the PMBT3904M,315 transistor?
The current gain (hFE) range is from 100 to 300.
- What is the maximum junction temperature of the PMBT3904M,315 transistor?
The maximum junction temperature (TJ) is 150 °C.
- Is the PMBT3904M,315 transistor automotive qualified?
No, the PMBT3904M,315 transistor is not automotive qualified.
- What is the moisture sensitivity level (MSL) of the PMBT3904M,315 transistor?
The moisture sensitivity level (MSL) is 1 (Unlimited).
- What is the transition frequency of the PMBT3904M,315 transistor?
The transition frequency (fT) is 300 MHz.
- Where can I find more detailed specifications for the PMBT3904M,315 transistor?
You can find detailed specifications in the datasheet available on Nexperia's official website or through authorized distributors.
- What are some common applications for the PMBT3904M,315 transistor?
Common applications include industrial control systems, consumer electronics, power and computing systems, and non-critical automotive applications.
