Nexperia USA Inc. PDTC144EU/HE115

Manufacturer No:
PDTC144EU/HE115
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

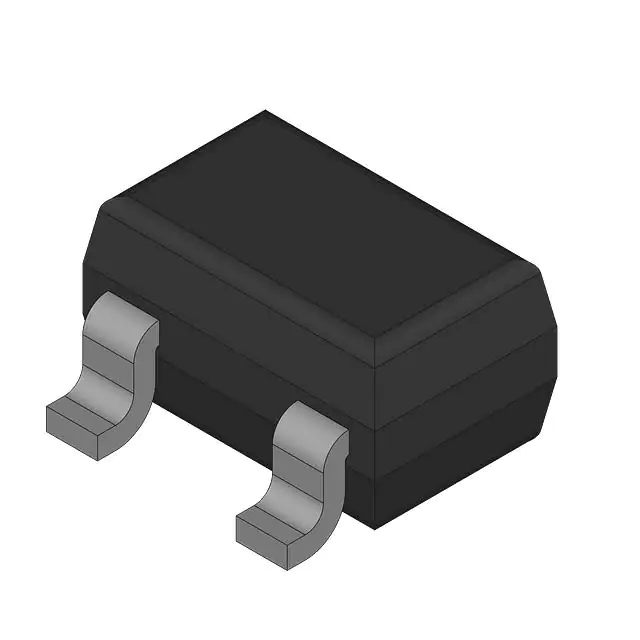

The PDTC144EU,115 is a NPN resistor-equipped bipolar transistor (BJT) manufactured by Nexperia. This device is part of the family of digital transistors or bias resistor transistors, which incorporate one or two integrated resistors. This design allows the transistor to be directly driven from digital sources, making it highly versatile in various electronic circuits.

The transistor is packaged in a SOT323 (SC-70) surface mount package, which is compact and suitable for high-density PCB designs. It is particularly useful in applications requiring high current capability and low voltage drop.

Key Specifications

Parameter Value Unit
Transistor Type NPN
Maximum DC Collector Current 100 mA
Maximum Collector Emitter Voltage 50 V
Maximum Emitter Base Voltage 10 V
Package Type SOT323 (SC-70)
Mounting Type Surface Mount
Pin Count 3
Typical Input Resistor 47 kΩ
Maximum Operating Temperature +150 °C
Total Power Dissipation 200 mW
Dimensions 2.2 x 1.35 x 1 mm

Key Features

  • Integrated Resistors: The PDTC144EU,115 includes built-in resistors (R1 = 47 kΩ, R2 = 47 kΩ), which simplify circuit design and reduce the number of external components needed.
  • High Current Capability: The transistor can handle a maximum collector current of 100 mA, making it suitable for high-speed switching applications.
  • Low Voltage Drop: It has a low voltage drop, which is beneficial for applications requiring minimal power loss.
  • Compact Package: The SOT323 (SC-70) package is compact and ideal for surface mount technology, allowing for high-density PCB designs.
  • Wide Operating Temperature Range: The device can operate over a temperature range from -65°C to +150°C, making it suitable for various environmental conditions.

Applications

  • Relay Drivers: The PDTC144EU,115 is often used in relay driver circuits due to its high current capability and integrated resistors.
  • High-Speed Line Drivers: It is suitable for high-speed line driver applications where low voltage drop and high current are required.
  • Line Receivers and Transmit/Receive Circuits: The transistor is used in various communication circuits due to its robust performance characteristics.
  • Automotive and Industrial Applications: It is used in ignition systems, motor control, and power management in automotive and industrial environments.
  • General Purpose Amplifiers and Switches: The PDTC144EU,115 can be used in general-purpose amplification and switching applications due to its versatility and performance.

Q & A

  1. Q: What is the maximum collector current of the PDTC144EU,115?
    A: The maximum DC collector current is 100 mA.
  2. Q: What is the maximum collector-emitter voltage of the PDTC144EU,115?
    A: The maximum collector-emitter voltage is 50 V.
  3. Q: What type of package does the PDTC144EU,115 come in?
    A: The transistor is packaged in a SOT323 (SC-70) surface mount package.
  4. Q: What are the typical input resistors for the PDTC144EU,115?
    A: The typical input resistors are R1 = 47 kΩ and R2 = 47 kΩ.
  5. Q: What is the maximum operating temperature of the PDTC144EU,115?
    A: The maximum operating temperature is +150 °C.
  6. Q: What are some common applications of the PDTC144EU,115?
    A: It is commonly used in relay drivers, high-speed line drivers, line receivers, and transmit/receive circuits, as well as in automotive and industrial applications.
  7. Q: Is the PDTC144EU,115 RoHS compliant?
    A: Yes, the PDTC144EU,115 is RoHS compliant.
  8. Q: What is the total power dissipation of the PDTC144EU,115?
    A: The total power dissipation is 200 mW.
  9. Q: How many pins does the PDTC144EU,115 have?
    A: The transistor has 3 pins.
  10. Q: What is the warranty period for the PDTC144EU,115 from some distributors?
    A: Some distributors offer a 1-year warranty on the PDTC144EU,115.
  11. Q: How can I ensure the authenticity of the PDTC144EU,115 from Nexperia USA Inc.?
    A: Ensure you purchase from authorized distributors or suppliers that rigorously test and verify the credentials of original Nexperia USA Inc. manufacturers and authorized agents.
