BUK7227-100B,118
  • Share:

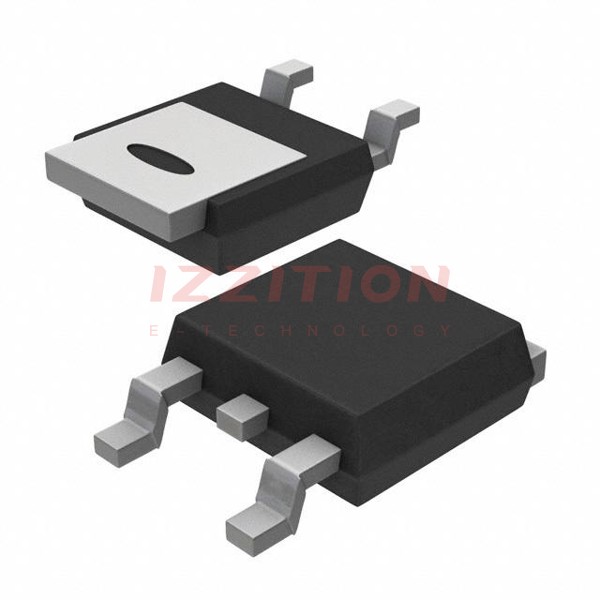

Nexperia USA Inc. BUK7227-100B,118

Manufacturer No:
BUK7227-100B,118
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 48A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK7227-100B,118 is a high-performance N-channel enhancement mode Field-Effect Transistor (FET) produced by Nexperia USA Inc. This device utilizes TrenchMOS technology, which is known for its high efficiency and reliability. The BUK7227-100B,118 is packaged in a TO-252 (DPAK) surface mount package, making it suitable for a variety of applications requiring high power handling and low on-state resistance.

Key Specifications

Parameter Value
Manufacturer Nexperia USA Inc.
Part Number BUK7227-100B,118
Package Type TO-252 (DPAK), Surface Mount
Voltage Rating (Vds) 100 V
Current Rating (Id) 48 A
On-State Resistance (Rds(on)) 0.023 ohm
Channel Type N-channel
Mode of Operation Enhancement Mode

Key Features

  • TrenchMOS Technology: Provides high efficiency and reliability.
  • Low On-State Resistance: 0.023 ohm, which minimizes power losses and enhances overall system efficiency.
  • High Current Rating: Capable of handling up to 48 A, making it suitable for high-power applications.
  • High Voltage Rating: Rated for 100 V, ensuring robust performance in various power management scenarios.
  • Surface Mount Package: TO-252 (DPAK) package for easy integration into surface mount PCB designs.

Applications

The BUK7227-100B,118 is versatile and can be used in a wide range of applications, including:

  • Power Management Systems: Suitable for DC-DC converters, power supplies, and other power management circuits due to its high efficiency and low on-state resistance.
  • Automotive Systems: Compliant with AECQ101 standards, making it suitable for automotive applications such as motor control, battery management, and other high-power automotive systems.
  • Industrial Control Systems: Can be used in industrial control systems, motor drives, and other high-power industrial applications.

Q & A

  1. What is the part number of this MOSFET?

    The part number is BUK7227-100B,118.

  2. Who is the manufacturer of this component?

    The manufacturer is Nexperia USA Inc..

  3. What is the voltage rating of this MOSFET?

    The voltage rating is 100 V).

  4. What is the current rating of this MOSFET?

    The current rating is 48 A).

  5. What is the on-state resistance of this MOSFET?

    The on-state resistance is 0.023 ohm).

  6. What type of package does this MOSFET use?

    The package type is TO-252 (DPAK), surface mount).

  7. Is this MOSFET suitable for automotive applications?

    Yes, it is compliant with AECQ101 standards, making it suitable for automotive applications).

  8. What technology does this MOSFET use?

    This MOSFET uses TrenchMOS technology).

  9. What are some common applications for this MOSFET?

    Common applications include power management systems, automotive systems, and industrial control systems).

  10. Where can I purchase this component?

    You can purchase this component from various distributors such as DigiKey, Mouser Electronics, Arrow Electronics, and more).

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:48A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:27mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:37 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2789 pF @ 25 V
FET Feature:-
Power Dissipation (Max):167W (Tc)
Operating Temperature:-55°C ~ 185°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

$1.71
458

Please send RFQ , we will respond immediately.
