BC817-40W/ZL115
  • Share:

Nexperia USA Inc. BC817-40W/ZL115

Manufacturer No:
BC817-40W/ZL115
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

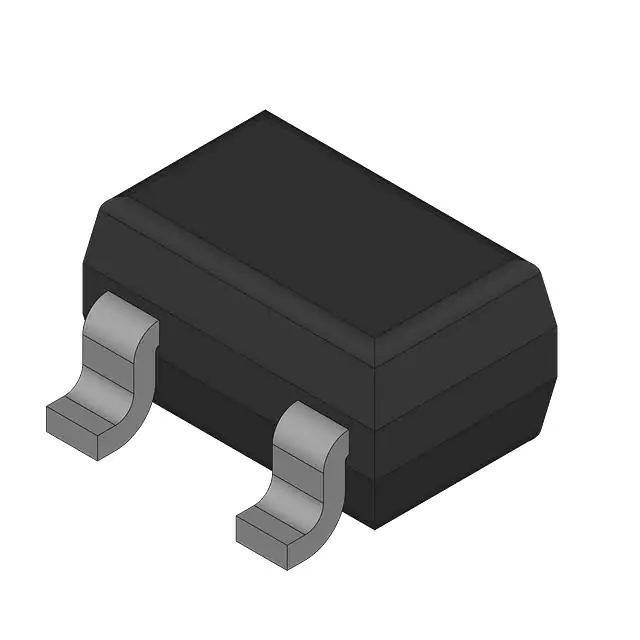

The BC817-40W/ZL115 is an NPN general-purpose transistor produced by Nexperia USA Inc. This transistor is housed in a very small SOT323 (SC70) Surface-Mounted Device (SMD) plastic package, making it ideal for compact and efficient electronic designs. It is part of Nexperia’s extensive portfolio of bipolar transistors, which are used in a wide range of applications across various industries, including automotive, industrial, power, computing, consumer, mobile, and wearables.

Key Specifications

Type numberPackage versionPackage nameSize (mm)Channel typePtot (mW)VCEO [max] (V)IC [max] (mA)hFE [min]hFE [max]TJ [max] (°C)fT [min] (MHz)Automotive qualified
BC817-40WSOT323SC-702 x 1.25 x 0.95NPN20045500250600150100N

Key Features

  • High current capability: Up to 500 mA.
  • Three current gain selections available.
  • General-purpose switching and amplification.
  • Compact SOT323 (SC70) package for space-efficient designs.
  • Maximum collector-emitter voltage (VCEO) of 45 V.
  • Maximum junction temperature (TJ) of 150 °C.

Applications

The BC817-40W transistor is versatile and can be used in a variety of applications, including:

  • Automotive systems: For general-purpose switching and amplification.
  • Industrial control systems: For reliable and efficient operation in harsh environments.
  • Consumer electronics: In devices such as audio amplifiers, power supplies, and other general-purpose circuits.
  • Mobile and wearable devices: Due to its compact size and low power consumption.

Q & A

  1. What is the maximum collector-emitter voltage (VCEO) of the BC817-40W transistor?
    The maximum collector-emitter voltage (VCEO) is 45 V.
  2. What is the maximum collector current (IC) of the BC817-40W transistor?
    The maximum collector current (IC) is 500 mA.
  3. What package type is the BC817-40W transistor available in?
    The BC817-40W transistor is available in the SOT323 (SC70) package.
  4. What are the dimensions of the SOT323 package?
    The dimensions are 2 x 1.25 x 0.95 mm.
  5. Is the BC817-40W transistor automotive qualified?
    No, it is not automotive qualified.
  6. What is the minimum current gain (hFE) of the BC817-40W transistor?
    The minimum current gain (hFE) is 250.
  7. What is the maximum junction temperature (TJ) of the BC817-40W transistor?
    The maximum junction temperature (TJ) is 150 °C.
  8. What is the PNP complement of the BC817-40W transistor?
    The PNP complement is the BC807-40W.
  9. Is the BC817-40W transistor RoHS compliant?
    Yes, it is RoHS compliant.
  10. Where can I purchase the BC817-40W transistor?
    You can purchase it from Nexperia’s official distributors or directly from Nexperia’s sales organization.
