Nexperia USA Inc. BC817-40W/ZL135

Manufacturer No:
BC817-40W/ZL135
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

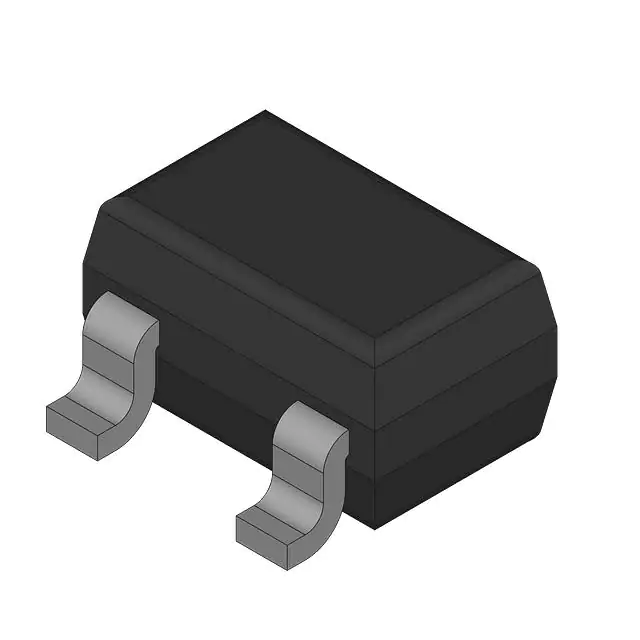

The Nexperia BC817-40W/ZL135 is a high-performance NPN general-purpose transistor designed for a wide range of applications. It is part of Nexperia's extensive portfolio of bipolar transistors, which are known for their reliability, efficiency, and versatility. This transistor is housed in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package, making it ideal for space-constrained designs.

Key Specifications

ParameterValue
Channel TypeNPN
PackageSOT323 (SC-70)
VCEO [max]45 V
IC [max]500 mA
Ptot200 mW
hFE [min]250
hFE [max]600
TJ [max]150 °C
fT [min]100 MHz
Package Size2 x 1.25 x 0.95 mm
MountingSurface Mount

Key Features

  • High current capability: Up to 500 mA collector current.
  • Three current gain selections: Providing flexibility in design.
  • General-purpose switching and amplification: Suitable for a variety of applications.
  • Small SOT323 (SC-70) package: Ideal for space-constrained designs.
  • High reliability and efficiency: Ensuring robust performance in various conditions.

Applications

The Nexperia BC817-40W/ZL135 transistor is versatile and can be used in a wide range of applications across various industries, including:

  • Industrial and automotive systems.
  • Power and computing applications.
  • Consumer electronics and mobile devices.
  • Wearable technology.

Q & A

  1. What is the maximum collector current of the BC817-40W/ZL135 transistor?
    The maximum collector current is 500 mA.
  2. What is the maximum collector-emitter voltage (VCEO) of this transistor?
    The maximum collector-emitter voltage is 45 V.
  3. In what package is the BC817-40W/ZL135 transistor available?
    The transistor is available in the SOT323 (SC-70) package.
  4. What are the minimum and maximum current gain (hFE) values for this transistor?
    The minimum current gain is 250, and the maximum is 600.
  5. What is the maximum junction temperature (TJ) for this transistor?
    The maximum junction temperature is 150 °C.
  6. Is the BC817-40W/ZL135 transistor RoHS compliant?
    Yes, the transistor is RoHS compliant.
  7. What are the typical applications of the BC817-40W/ZL135 transistor?
    It is used in general-purpose switching and amplification, and in various industries such as industrial, automotive, power, computing, and consumer electronics.
  8. How does the small package size benefit the design?
    The small SOT323 (SC-70) package makes it ideal for space-constrained designs.
  9. Can I order samples of the BC817-40W/ZL135 transistor?
    Yes, samples can be ordered through Nexperia's sales organization or through their network of global and regional distributors.
  10. Are there any evaluation boards available for this transistor?
    Yes, Nexperia provides comprehensive evaluation boards to help understand the performance of their products.
