BC817K-25WH6327
  • Share:

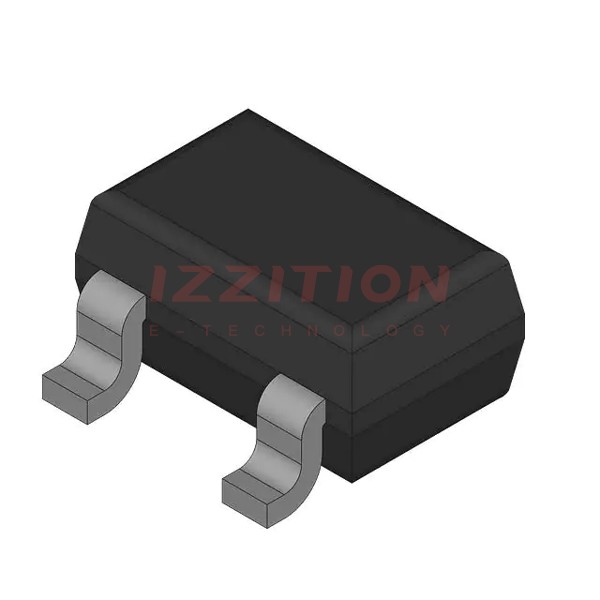

Infineon Technologies BC817K-25WH6327

Manufacturer No:
BC817K-25WH6327
Manufacturer:
Infineon Technologies
Package:
Bulk
Description:
BIPOLAR GEN PURPOSE TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC817K-25WH6327 is an NPN Silicon AF (Audio Frequency) transistor manufactured by Infineon Technologies. This transistor is designed for general-purpose applications, particularly in audio frequency circuits. It is known for its high performance and reliability in various electronic systems.

Key Specifications

ParameterValue
Transistor TypeNPN Silicon AF Transistor
Collector Current500 mA
Collector-Emitter Voltage45 V
Base-Emitter Voltage0.7 V (typical)
Collector-Emitter Saturation Voltage0.2 V (typical)
Current Gain (hFE)100-400
Power Dissipation0.5 W
Operating Temperature-55°C to 150°C
PackageSOT-23
RoHS ComplianceYes

Key Features

  • High collector current of up to 500 mA
  • High current gain (hFE) ranging from 100 to 400
  • Low collector-emitter saturation voltage of 0.2 V (typical)
  • Pb-free (RoHS compliant) package
  • Qualified according to AEC Q102 standards

Applications

The BC817K-25WH6327 is suitable for general AF (audio frequency) applications. It can be used in a variety of electronic circuits where high current gain and low saturation voltage are required, such as in audio amplifiers, switching circuits, and other general-purpose transistor applications.

Q & A

  1. What is the collector current of the BC817K-25WH6327 transistor?
    The collector current of the BC817K-25WH6327 transistor is up to 500 mA.
  2. What is the typical collector-emitter saturation voltage of this transistor?
    The typical collector-emitter saturation voltage is 0.2 V.
  3. Is the BC817K-25WH6327 RoHS compliant?
    Yes, the BC817K-25WH6327 is Pb-free and RoHS compliant.
  4. What is the operating temperature range of this transistor?
    The operating temperature range is -55°C to 150°C.
  5. What package type does the BC817K-25WH6327 come in?
    The transistor comes in a SOT-23 package.
  6. What are the key applications of the BC817K-25WH6327?
    The key applications include general AF (audio frequency) circuits, audio amplifiers, and other general-purpose transistor applications.
  7. What is the current gain (hFE) of the BC817K-25WH6327?
    The current gain (hFE) ranges from 100 to 400.
  8. Is the BC817K-25WH6327 qualified according to any automotive standards?
    Yes, it is qualified according to AEC Q102 standards.
  9. What is the maximum collector-emitter voltage of this transistor?
    The maximum collector-emitter voltage is 45 V.
  10. What is the power dissipation of the BC817K-25WH6327 transistor?
    The power dissipation is 0.5 W.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$0.04
3,215

Please send RFQ , we will respond immediately.
